CRANKSHAFT/PISTON (78-79)
KX250-A5 1979

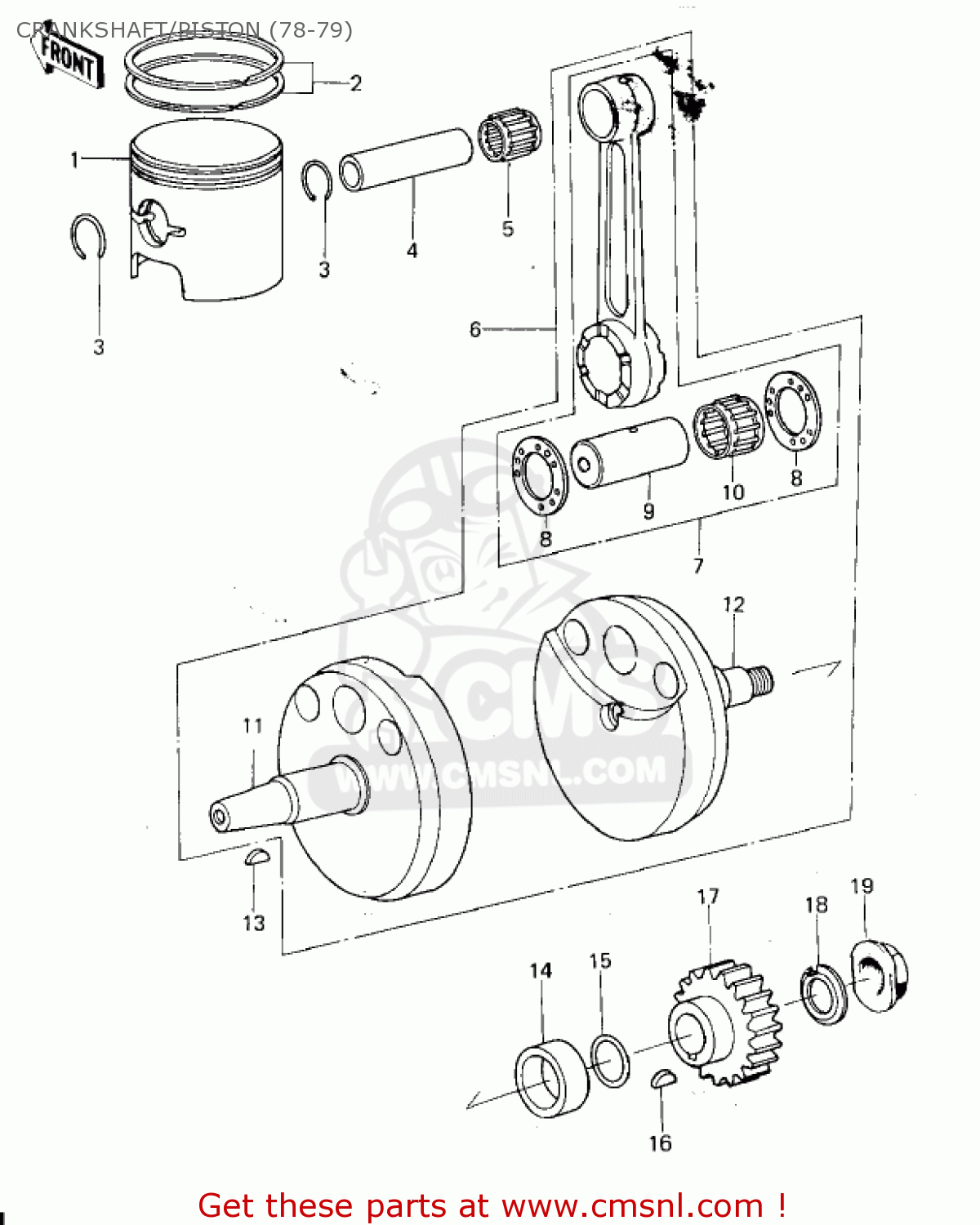

Crankshaft/piston (78-79) diagram KX250-A5 1979
CRANKSHAFT/PISTON (78-79) KX250-A5 1979
×
prices are in EUR
ref
part #
description
quantity
1
130011004
ref: 1
PISTON-ENGINE
€ 69.50
2
130085008
ref: 2
RING-SET-PISTON
€ 51.50
3
92036015
ref: 3
RING-SNAP,PISTON PIN
€ 3.00
4
13002017
ref: 4
PIN-PISTON
€ 17.50
5
130331010
ref: 5
BEARING-NEEDLE,KBK18X
€ 22.50
6
130311004
ref: 6
KX250-A4
CRANK&CONROD ASSY
€ 358.00
6
130311020
ref: 6
KX250-A5+
CRANKSHAFT ASSY
€ 418.00
7
130445007
ref: 7
SET-CONNECTING ROD
€ 133.00
8
920261241
ref: 8
SPACER
€ 4.00
9
13035034
ref: 9
PIN-CRANK
€ 54.50
10
13034049
ref: 10
BEARING-NEEDLE,PK2432
€ 36.00
11
13037070
ref: 11
KX250-A4
CRANKSHAFT,L.H
€ 111.00
11
130371027
ref: 11
KX250-A5+
CRANKSHAFT,L.H
€ 158.50
12
13038058
ref: 12
KX250-A4
CRANKSHAFT,R.H
€ 78.00
12
130371028
ref: 12
KX250-A5+
CRANKSHAFT,R.H
€ 158.50
13
92038001
ref: 13
WOODRUFF KEY
€ 3.00
14
92027212
ref: 14
COLLAR,CRANKSHAFT
€ 8.50
15
670B2020
ref: 15
O RING,20MM
€ 1.00
16
510A5100
ref: 16
KEY-WOODRUFF
€ 1.50
17
13121029
ref: 17
GEAR,PRIMARY
€ 70.00
18
92024061
ref: 18
WASHER,LOCK
€ 2.50
19
92015069
ref: 19
NUT,14MM
€ 20.00
