FRONT FORK (KX250-A4) (78-79)
KX250-A5 1979

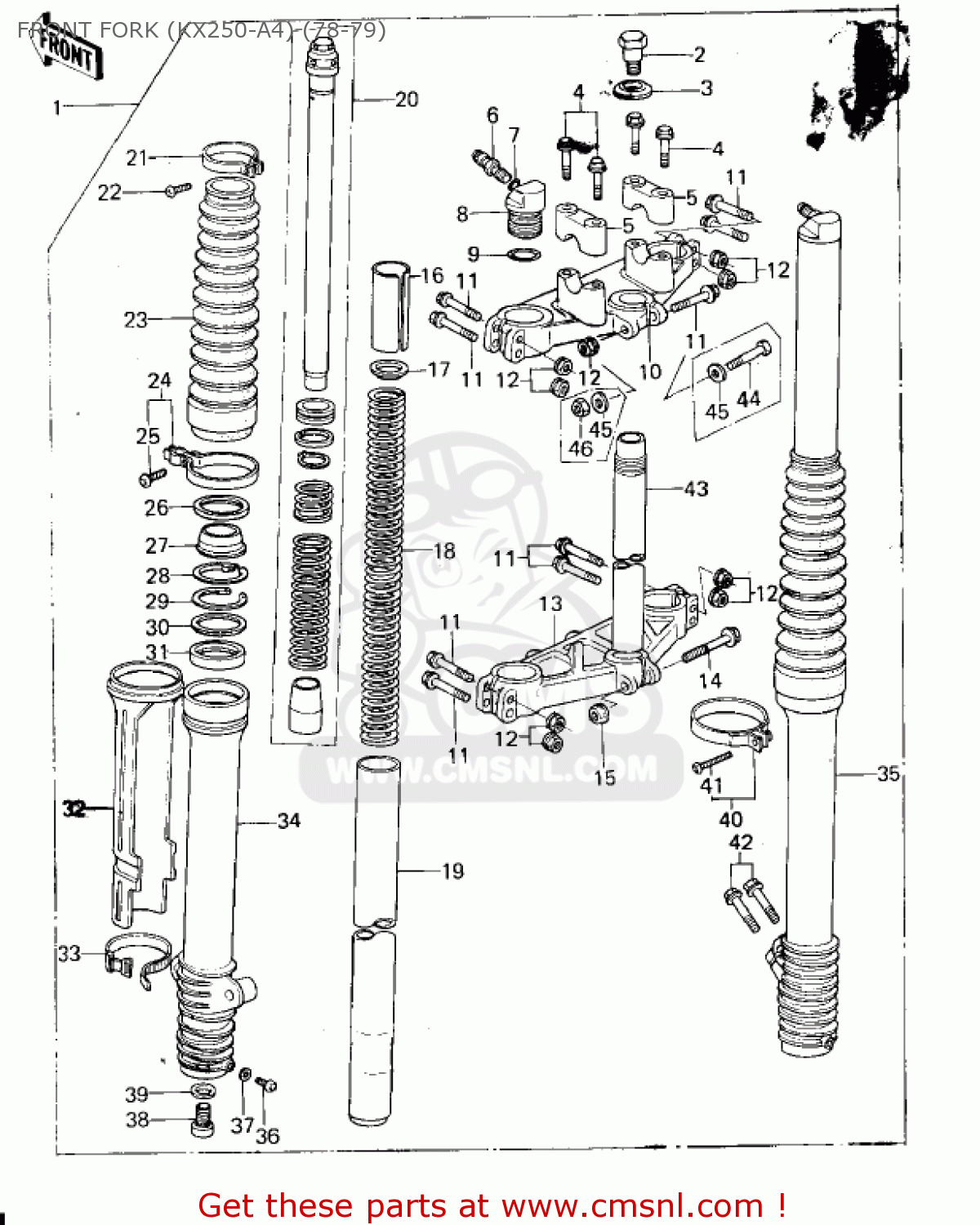

Front fork (kx250-a4) (78-79) diagram KX250-A5 1979
FRONT FORK (KX250-A4) (78-79) KX250-A5 1979
×
prices are in EUR
ref
part #
description
quantity
1
440011044
ref: 1
FRONT FORK ASSY
€ 1,357.00
2
44041065
ref: 2
14 X 20
BOLT,FORK TOP
€ 18.50
3
44043052
ref: 3
WASHER,PLAIN
€ 6.00
4
920011059
ref: 4
BOLT,HEX HEAD,8X35
€ 5.50
5
460121003
ref: 5
HOLDER,HANDLEBAR
€ 8.50
6
161261003
ref: 6
VALVE,AIR
€ 22.50
7
920551018
ref: 7
RING-O,AIR VALVE
€ 2.50
8
440291005
ref: 8
CAP,FORK TOP
€ 34.00
9
920551012
ref: 9
RING-O,FORK TOP
€ 5.00
10
440391009
ref: 10
HEAD,STEERING STEM
€ 79.00
11
920011060
ref: 11
BOLT,HEX HEAD,8X53
€ 2.00
12
440071002
ref: 12
NUT,8M/M
€ 2.00
12
440071002
ref: 12
NUT,8M/M
€ 2.00
13
440371005
ref: 13
STEM.STEERING
€ 206.00
14
920011061
ref: 14
BOLT,HEX HEAD,10X60
€ 3.00
15
440071003
ref: 15
NUT,10M/M
€ 1.00
16
920261012
ref: 16
SPACER,FORK SPRING
€ 4.50
17
44028033
ref: 17
GUIDE-FORK SPRING
€ 6.00
18
440261017
ref: 18
SPRING,FORK INNER
€ 22.00
19
440131009
ref: 19
TUBE,FORK INNER
€ 157.00
20
440221007
ref: 20
CYLINDER ASSY,FORK
€ 61.50
21
920721008
ref: 21
BAND,BOOTS
€ 7.50
22
220B0414
ref: 22
SCREW-PAN-CROS
€ 2.00
23
490061009
ref: 23
BOOTS,FORK
€ 49.00
24
920721011
ref: 24
BAND,BOOTS,L.H
€ 8.50
25
220B0618
ref: 25
SCREW-PAN HEAD,6X18
€ 2.50
26
320991002
ref: 26
CASE,DUST SHIELD
€ 16.00
27
920931007
ref: 27
DUST SHIELD,FORK
€ 8.50
28
130701003
ref: 28
GUIDE,FORK OUTER TUBE
€ 2.50
29
920331005
ref: 29
RING-SNAP
€ 8.50
30
920221027
ref: 30
WASHER,FORK OUTER
€ 3.00
31
920491009
ref: 31
OIL SEAL,FORK OUTER
€ 16.00
32
550201012
ref: 32
GUARD FORK
€ 14.50
33
920721009
ref: 33
BAND,BOOTS
€ 3.00
34
440051010
ref: 34
TUBE,L.H FORK OUTER
€ 213.00
35
440061010
ref: 35
TUBE,R.H.FORK OUTER
€ 213.00
36
220B0408
ref: 36
SCREW-PAN-CROS
€ 0.50
37
44045002
ref: 37
GASKET,FORK DRAIN PLU (NAS)
€ 3.00
38
44041040
ref: 38
10 X 25
BOLT-FORK CYLINDER
€ 4.50
39
44045057
ref: 39
GASKET (NAS)
€ 3.00
40
920721010
ref: 40
BAND,BOOTS,R.H
€ 3.00
41
220E0420A
ref: 41
SCREW-PAN HEAD,4X20
€ 2.50
42
920011058
ref: 42
BOLT,HEX HEAD,8X25
€ 2.00
43
44052008
ref: 43
SHAFT,STEERING STEM
€ 87.00
44
920011141
ref: 44
BOLT,HEX HEAD,8X57
€ 2.00
45
410B0800
ref: 45
WASHER-PLAIN-SMALL,8M
€ 0.50
46
920151124
ref: 46
NUT,LOCK,8MM
€ 3.50
