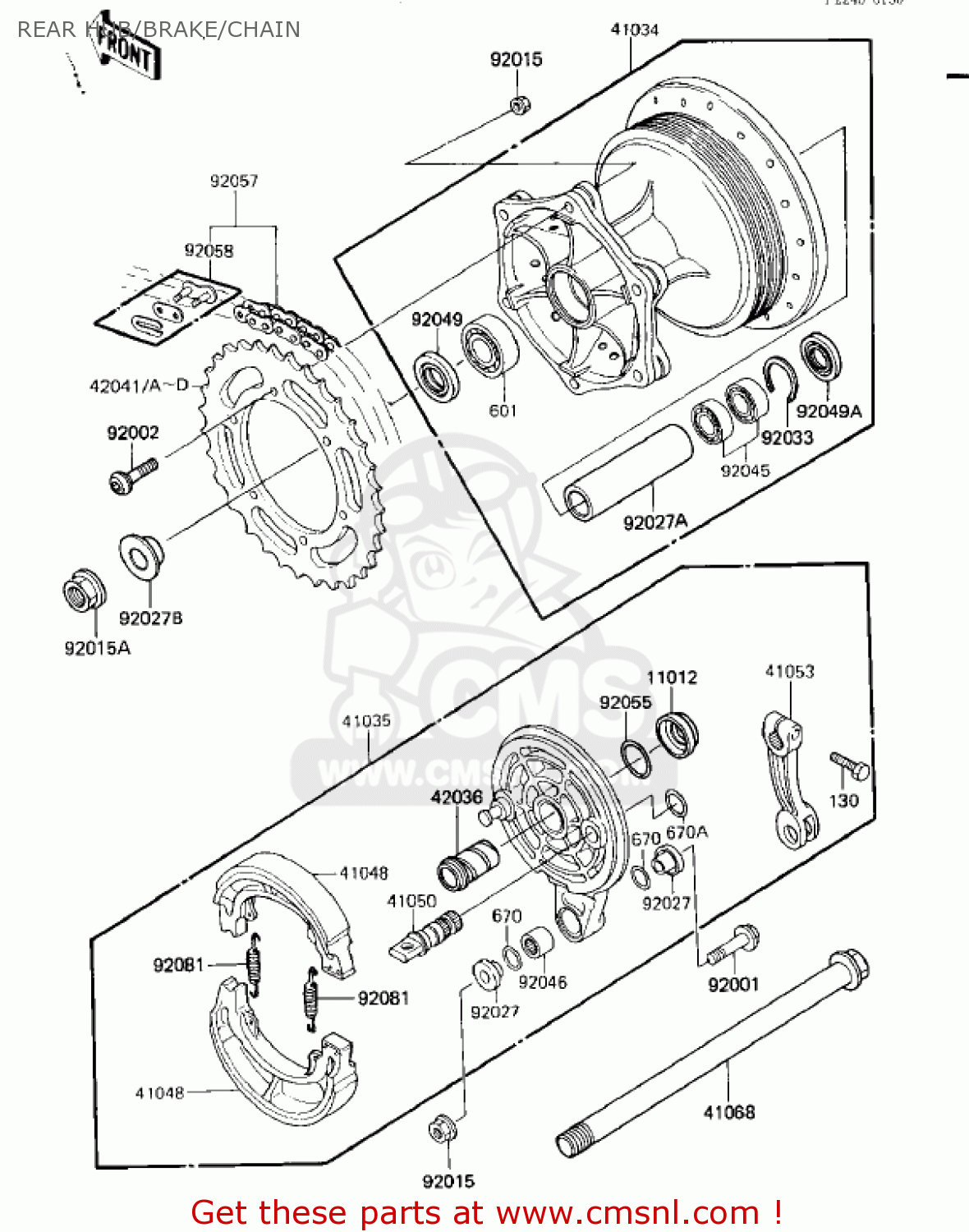

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

11012

110121416
ref: 11012

CAP,RR BRAKE

€ 14.50

41034

410341114
ref: 41034

DRUM-ASSY,RR BRAKE

€ 406.00

41035

410351174
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 320.50

41048

42019013
ref: 41048

SHOE, BRAKE (MCA)

€ 12.50

41050

410501022
ref: 41050

CAM-BRAKE,REAR

€ 32.50

41053

410531029
ref: 41053

LEVER-BRAKE CAM,REAR

€ 84.00

41068

410681180
ref: 41068

AXLE,RR

€ 101.00

42036

420361143
ref: 42036

SLEEVE,RR BRAKE,L=45

€ 38.00

42041

420411103
ref: 42041

SPROCKET-HUB,48T

€ 87.50

42041A

420411256
ref: 42041A

SPROCKET-HUB,49T,AL

€ 75.00

42041B

420411154
ref: 42041B

SPROCKET-HUB,45T

€ 84.00

42041C

420411193
ref: 42041C

SPROCKET-HUB,46T,AL

€ 105.00

42041D

420411258
ref: 42041D

SPROCKET-HUB,47T,AL

€ 75.00

92001

920011578
ref: 92001

BOLT,FLANGED,8X40

€ 4.00

92002

920021387
ref: 92002

BOLT,8MM

€ 4.00

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92015A

920151461
ref: 92015A

NUT,20MM

€ 17.50

92027

920271040
ref: 92027

COLLAR,L=11.5

€ 12.50

92027A

920271827
ref: 92027A

COLLAR,L=103

€ 36.00

92027B

920271828
ref: 92027B

COLLAR,RR AXLE,L=20.5

€ 24.00

92033

920331191
ref: 92033

RING-SNAP,32MM

€ 2.50

92045

920451135
ref: 92045

BEARING-BALL,6804LU/2

€ 28.50

92049

920491203
ref: 92049

SEAL-OIL,BJNC2 25425

€ 12.00

92049A

920491205
ref: 92049A

SEAL-OIL,BJN 30374

€ 12.00

92055

92055049
ref: 92055

'0'RING,31MM

€ 2.50

92057

920571184
ref: 92057

CHAIN,DRIVE,DID520DS5

€ 57.50

92058

920581013
ref: 92058

JOINT-CHAIN,DRIVE

€ 6.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

130

130G0622
ref: 130

BOLT-FLANGED,6X22

€ 1.50

601

601B6004U
ref: 601

BEARING-BALL,#6004UC3

€ 27.50

670

670B2011
ref: 670

O RING,11MM

€ 1.00

670A

670B2012
ref: 670A

O RING,12MM

€ 1.00
