CRANKSHAFT/PISTON
KX125-D1 KX125 1985 USA CANADA

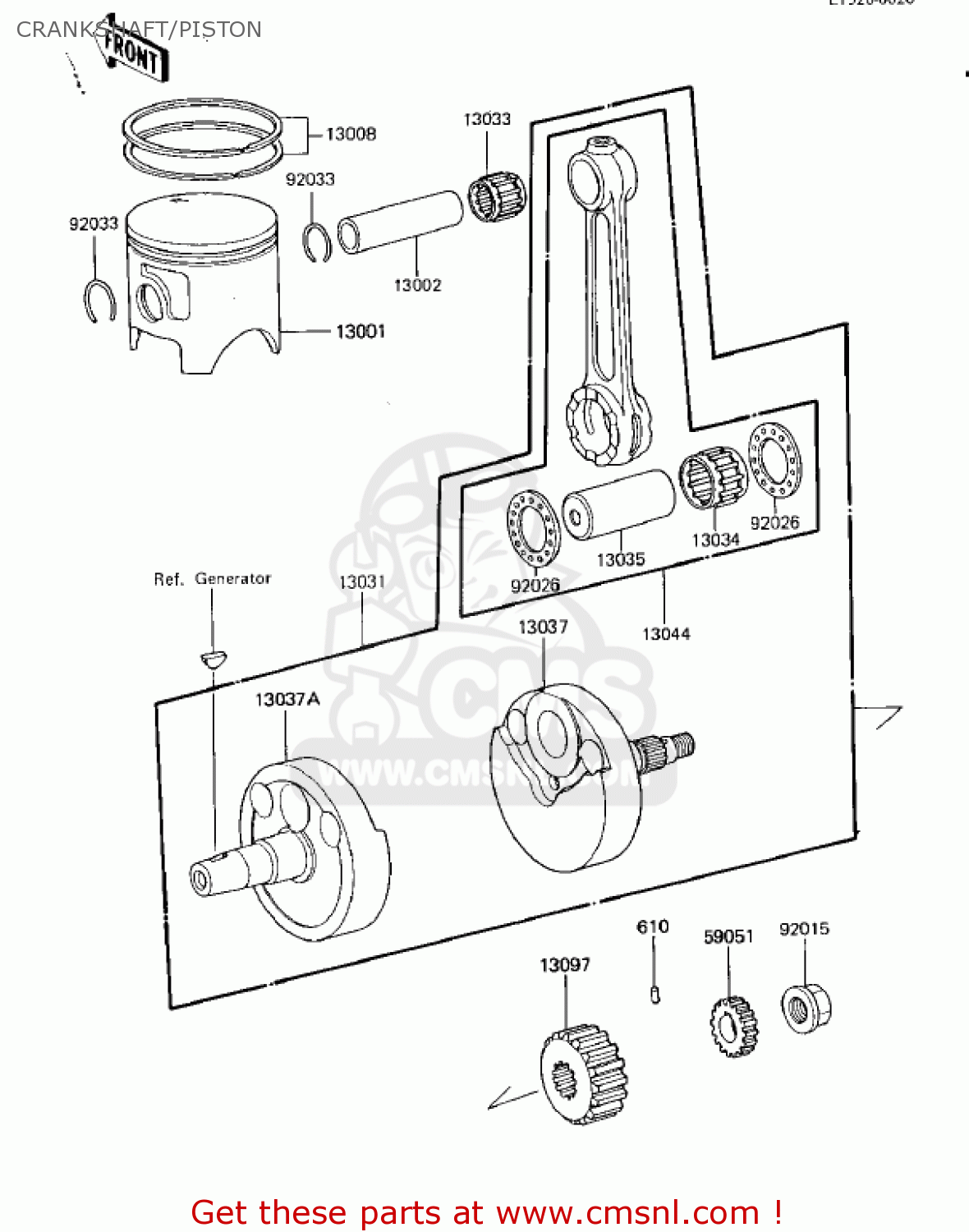

Crankshaft/piston diagram KX125-D1 KX125 1985 USA CANADA
CRANKSHAFT/PISTON KX125-D1 KX125 1985 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
13001
130011198
ref: 13001
PISTON-ENGINE
€ 75.50
13002
130021003
ref: 13002
PIN-PISTON
€ 16.50
13008
130085051
ref: 13008
RING-SET-PISTON
€ 55.00
13031
130311180
ref: 13031
CRANKSHAFT-COMP
€ 249.00
13033
130331051
ref: 13033
BEARING-SMALL END,KBK
€ 24.00
13034
130341079
ref: 13034
BEARING-BIG END
€ 37.50
13035
13035101001
ref: 13035
PIN-CRANK
€ 33.00
13037
130371243
ref: 13037
CRANKSHAFT,RH
€ 136.00
13037A
130371251
ref: 13037A
CRANKSHAFT,LH
€ 76.50
13044
130445065
ref: 13044
SET-CONNECTING ROD
€ 134.00
13097
130971127
ref: 13097
GEAR-PRIMARY SPUR,18T
€ 49.00
59051
590511035
ref: 59051
GEAR-SPUR,WATER PUMP,
€ 18.00
92015
920151161
ref: 92015
NUT,10MM
€ 3.50
92026
920261136
ref: 92026
SPACER,22.2X37X1.0
€ 5.50
92033
92036004
ref: 92033
CIRCLIP-PISTON PIN
€ 0.50
610
610A0408
ref: 610
ROLLER,4X8
€ 2.50
