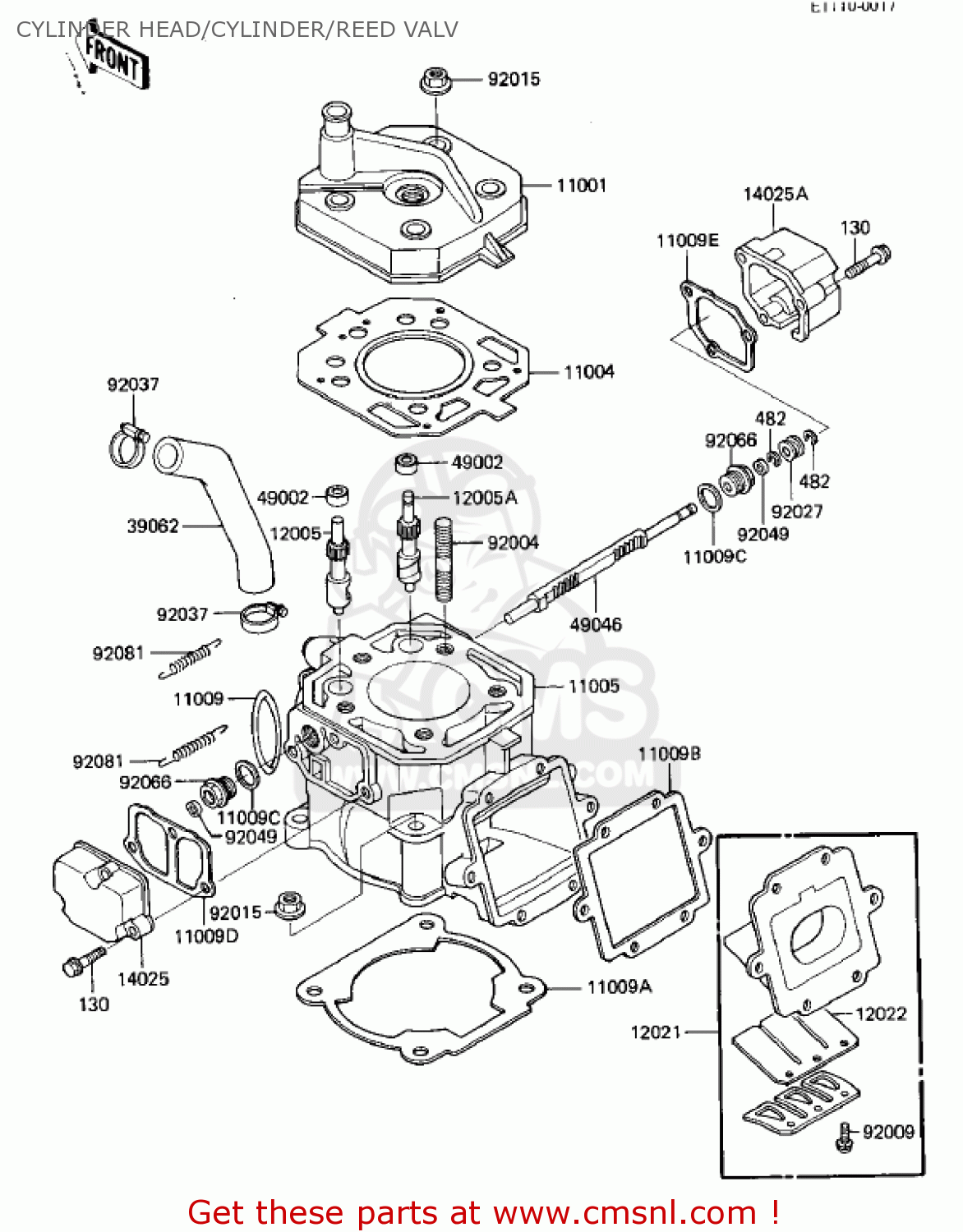

CYLINDER HEAD/CYLINDER/REED VALV

ref

part #

description

quantity

11001

110011190
ref: 11001

HEAD-CYLINDER

€ 84.00

11004

110041160
ref: 11004

GASKET-HEAD (MCA)

€ 23.50

11005

110051402
ref: 11005

CYLINDER-ENGINE

€ 583.50

11009

110091123
ref: 11009

GASKET,EXHAUST HOLDER (NAS)

€ 10.50

11009A

110091258
ref: 11009A

GASKET,CYLINDER BASE (MCA)

€ 6.00

11009B

110091941
ref: 11009B

GASKET,REED VALVE (NAS)

€ 6.00

11009C

110091467
ref: 11009C

GASKET,16.2X22X1 (NAS)

€ 1.00

11009D

110091478
ref: 11009D

GASKET,LH,RESONATOR (MCA)

€ 5.50

11009E

110091479
ref: 11009E

GASKET,RH,GOVERNOR (MCA)

€ 5.50

12005

120051057
ref: 12005

VALVE-EXHAUST,LH

€ 42.00

12005A

120051060
ref: 12005A

VALVE-EXHAUST,RH

€ 42.00

12021

120211062
ref: 12021

VALVE-ASSY-REED

€ 131.00

12022

120221057
ref: 12022

VALVE-REED,CARBON

€ 37.00

14024

140251984
ref: 14024

COVER,LH,RESONATOR

€ 28.50

14024A

140241650
ref: 14024A

COVER,RH,GOVERNOR

€ 33.00

39062

390621093
ref: 39062

HOSE-COOLING

€ 20.50

49002

490021057
ref: 49002

GUIDE-VALVE

€ 9.00

49046

490461052
ref: 49046

ROD-GOVERNOR

€ 46.00

92004

920041175
ref: 92004

STUD

€ 3.50

92009

920091014
ref: 92009

SCREW,REED VALVE

€ 2.00

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92027

920271834
ref: 92027

COLLAR,GOVERNOR ROD

€ 11.50

92037

920371589
ref: 92037

CLAMP,COOLING HOSE

€ 13.00

92049

920491206
ref: 92049

SEAL-OIL,RSO-5.5 11 4

€ 7.50

92066

920661194
ref: 92066

PLUG,ROD

€ 11.50

92081

920811526
ref: 92081

SPRING,MUFFLER CONECT

€ 7.50

130

130G0525
ref: 130

BOLT-FLANGED

€ 0.50

482

482K4000
ref: 482

CIRCLIP-TYPE-E,4MM

€ 0.50

all assemblies
