BRAKE PEDAL/TORQUE LINK
KX125-D1 KX125 1985 USA CANADA

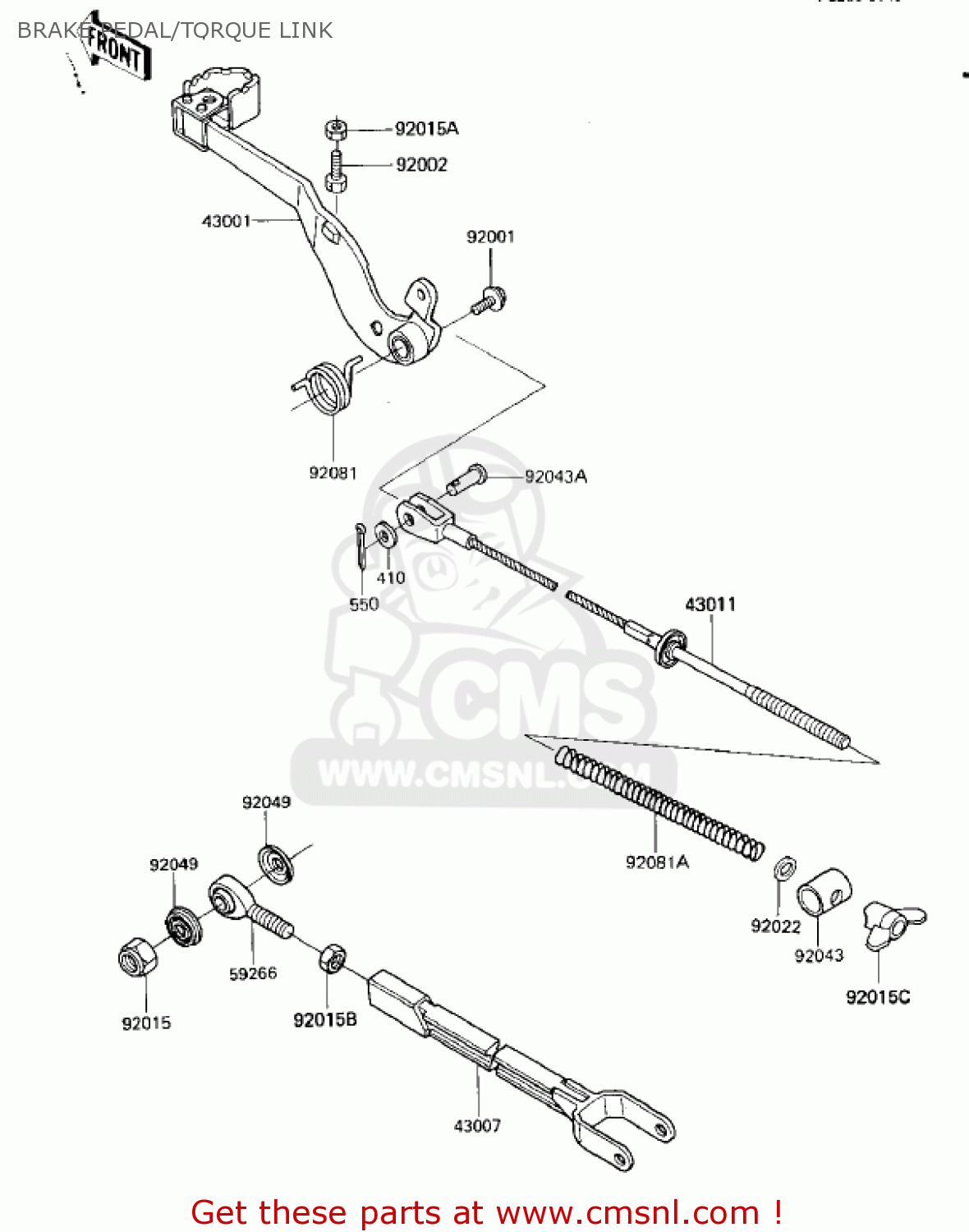

Brake pedal/torque link diagram KX125-D1 KX125 1985 USA CANADA
BRAKE PEDAL/TORQUE LINK KX125-D1 KX125 1985 USA CANADA
×
prices are in EUR
ref
part #
description
quantity
43001
430011173
ref: 43001
LEVER-BRAKE,PEDAL
€ 80.50
43007
430071111
ref: 43007
ROD-TORQUE
€ 123.00
43011
430111119
ref: 43011
ROD-BRAKE
€ 27.00
59266
592661057
ref: 59266
JOINT-BALL,TORQUE ROD
€ 65.00
92001
920011034
ref: 92001
BOLT,HEX HEAD,6X10
€ 7.00
92002
920021373
ref: 92002
BOLT,6X20
€ 2.50
92015
920151124
ref: 92015
NUT,LOCK,8MM
€ 3.50
92015A
920151391
ref: 92015A
NUT,6MM
€ 2.00
92015B
920151469
ref: 92015B
NUT,10MM
€ 2.50
92015C
920154004
ref: 92015C
NUT,BRAKE ADJUSTING
€ 4.50
92022
920221588
ref: 92022
WASHER,6.3X10.2X1.6
€ 2.50
92043
920431024
ref: 92043
PIN,BRAKE
€ 6.00
92043A
92043107
ref: 92043A
PIN,6X17
€ 4.50
92049
920491072
ref: 92049
OIL SEAL,BALL JOINT
€ 6.00
92081
920811640
ref: 92081
SPRING,BRAKE RETURN
€ 5.50
92081A
920811688
ref: 92081A
SPRING,BRAKE ROD
€ 3.00
410
410B0600
ref: 410
WASHER-PLAIN-SMALL,6M
€ 0.50
550
550D2015
ref: 550
PIN-COTTER,2.0X15
€ 1.00
