KICKSTARTER MECHANISM ('78-'79 K
KX125-A 1975

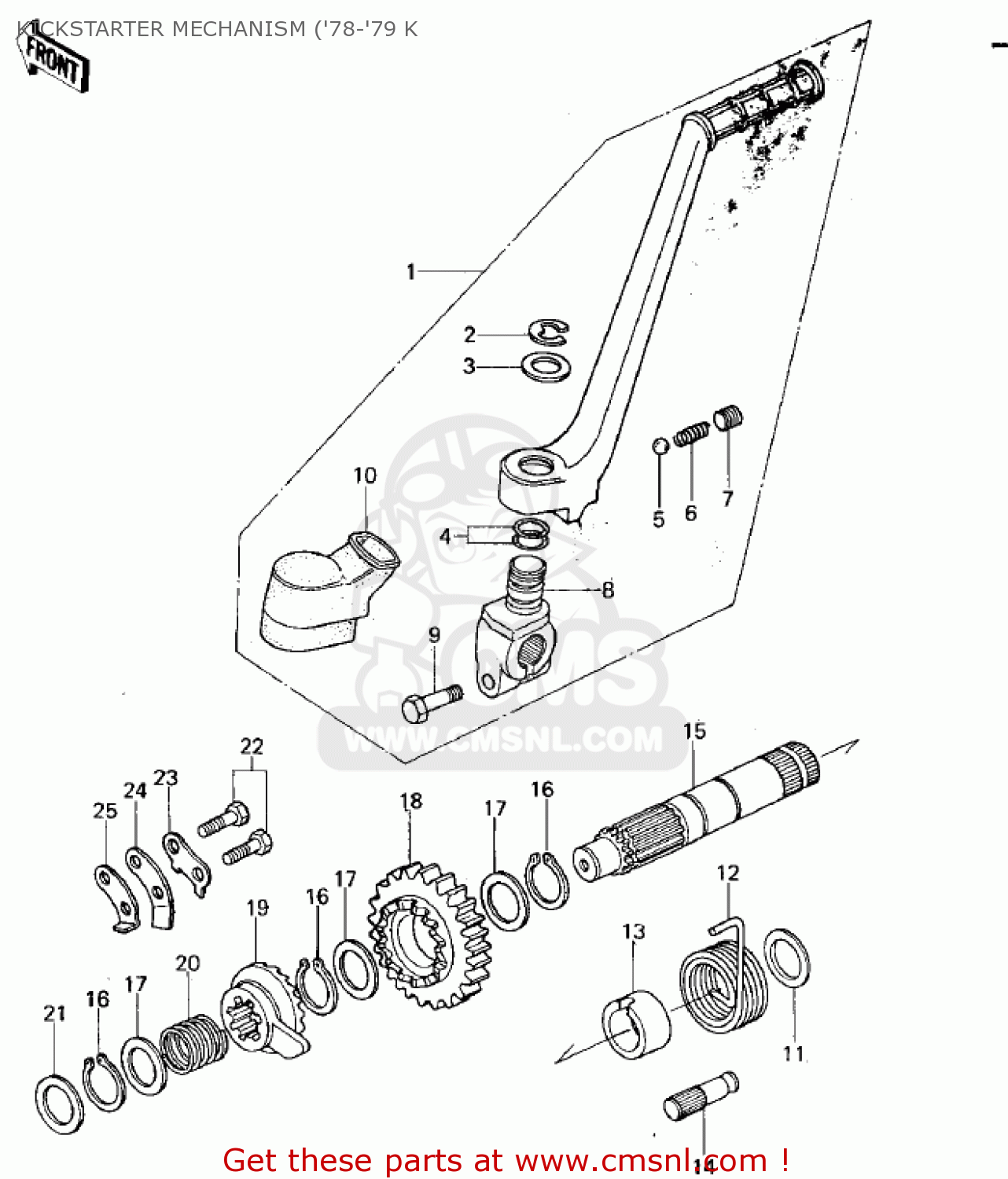

Kickstarter mechanism ('78-'79 k diagram KX125-A 1975
KICKSTARTER MECHANISM ('78-'79 K KX125-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
130645005
ref: 1
LEVER-ASSY-KICK PEDAL
€ 166.00
2
482K0100
ref: 2
CIRCLIP-TYPE-E,10MM
€ 0.50
3
920221019
ref: 3
WASHER,15.2X20X1
€ 3.50
4
670B2012
ref: 4
O RING,12MM
€ 1.00
5
600A0800
ref: 5
BALL-STEEL,1/4
€ 0.50
6
92081020
ref: 6
SPRING-KICK PEDAL
€ 2.50
7
290Q0808
ref: 7
SCREW,8X8
€ 2.50
8
130615001
ref: 8
BOSS,KICK PEDAL
€ 41.00
9
920011042
ref: 9
BOLT,HEX HEAD,8X28
€ 4.00
10
490061011
ref: 10
BOOT,KICKSTARTER
€ 8.50
11
92022268
ref: 11
WASHER,16.3X24X1
€ 5.50
12
92082005
ref: 12
SPRING,KICKSTARTER
€ 13.50
13
13070008
ref: 13
GUIDE,KICK SPRING
€ 6.00
14
92043102
ref: 14
PIN
€ 2.50
15
130661005
ref: 15
SHAFT,KICKSTARTER
€ 79.50
16
480J1600
ref: 16
CIRCLIP-TYPE-C,16MM
€ 2.50
17
92022315
ref: 17
WASHER, 16.8X22X0.5
€ 4.00
18
590511008
ref: 18
25T
GEAR-SPUR,KICK,25T
€ 83.00
19
130781052
ref: 19
RATCHET,KL250-D2
€ 50.50
20
92081122
ref: 20
SPRING,RATCHET
€ 6.00
21
92022269
ref: 21
WASHER,PLAIN
€ 1.00
22
112G0618
ref: 22
BOLT-UPSET
€ 0.50
23
920221046
ref: 23
WASHER,LOCK
€ 2.00
24
132061059
ref: 24
GUIDE-KICK
€ 7.00
25
320851016
ref: 25
STOPPER,KICKSTARTER
€ 5.50
