IGNITION ('78-'79 KX125-A4/A5)
KX125-A 1975

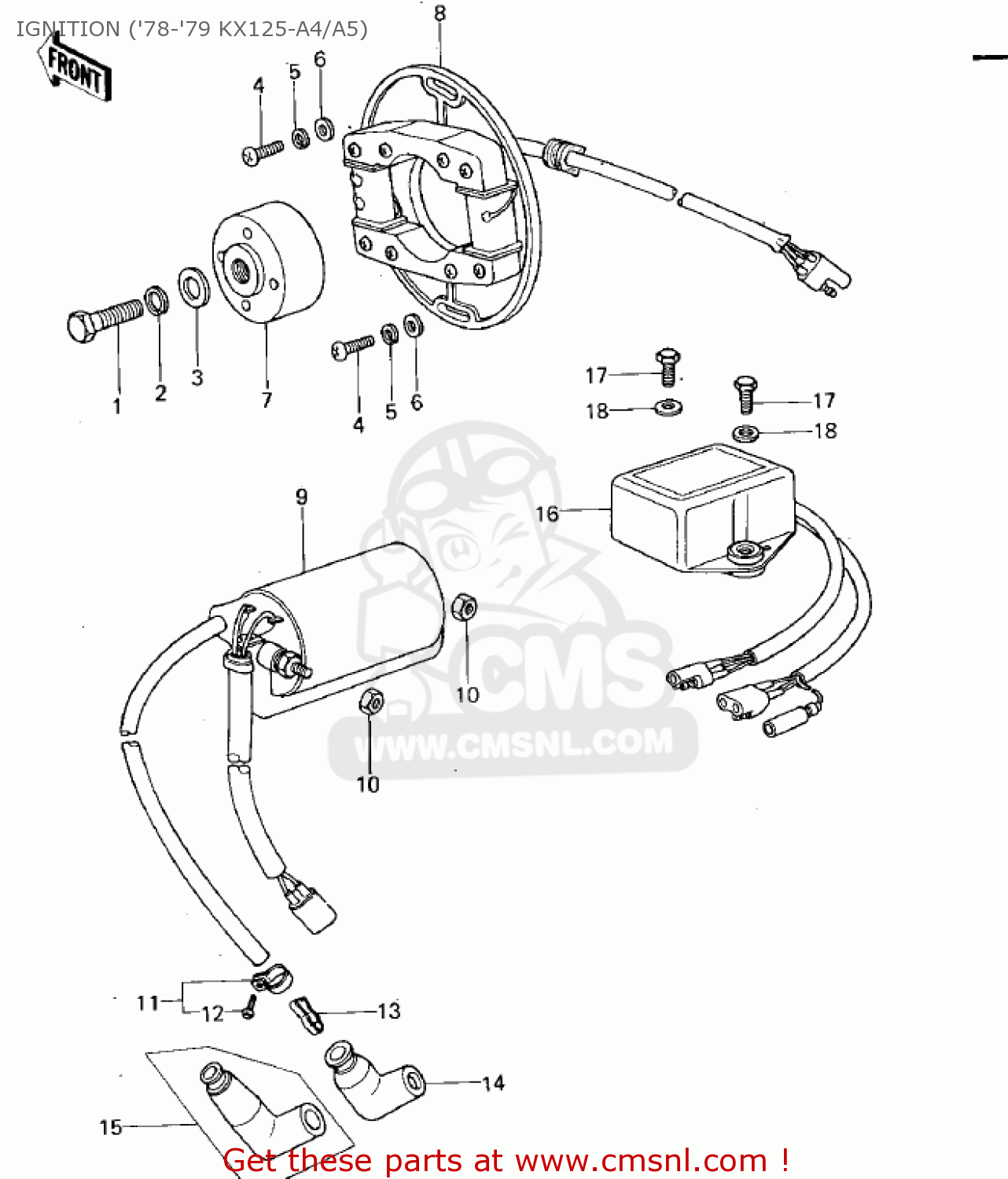

Ignition ('78-'79 kx125-a4/a5) diagram KX125-A 1975
IGNITION ('78-'79 KX125-A4/A5) KX125-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
920011578
ref: 1
BOLT,FLANGED,8X40
€ 4.00
2
461F0800
ref: 2
WASHER-SPRING,8MM
€ 0.50
3
92022276
ref: 3
WASHER,PLAIN,8MM
€ 6.50
4
220B0625
ref: 4
SCREW-PAN HEAD,6X25
€ 1.50
5
461F0600
ref: 5
WASHER-SPRING,6MM
€ 0.50
6
410B0600
ref: 6
WASHER-PLAIN-SMALL,6M
€ 0.50
7
210071007
ref: 7
KX125-A4
ROTOR
€ 211.50
7
210071013
ref: 7
KX125-A5~
ROTOR MAGNETO
€ 299.00
8
210031019
ref: 8
KX125-A4
STATOR ASSY,MAGNETO
€ 526.00
8
210031019
ref: 8
KX125-A5~
STATOR ASSY,MAGNETO
€ 526.00
9
211211007
ref: 9
COIL-IGNITION
€ 157.50
10
92019008
ref: 10
NUT-LOCK,6MM
€ 3.00
11
920371173
ref: 11
NOT REQUIRED FOR P/N
CLAMP,SPARK PLUG CAP
€ 1.00
12
220B0310
ref: 12
NOT REQUIRED FOR P/N
SCREW-PAN-CROS,3X10
€ 2.00
13
21169001
ref: 13
NOT REQUIRED FOR P/N
TERMINAL,PLUG CAP
€ 10.00
14
211301006
ref: 14
CAP-SPARK PLUG
€ 18.00
15
211301001
ref: 15
CAP,SPARK PLUG
€ 10.50
16
211191002
ref: 16
KX125-A4
IGNITION UNIT
€ 244.50
16
211191010
ref: 16
KX125-A5~
IGNITION UNIT
€ 385.50
17
112G0618
ref: 17
BOLT-UPSET
€ 0.50
18
92022024
ref: 18
WASHER,7X16X1.2
€ 2.50
