FUEL TANK ('74-'76 KX125/A/A3)
KX125-A 1975

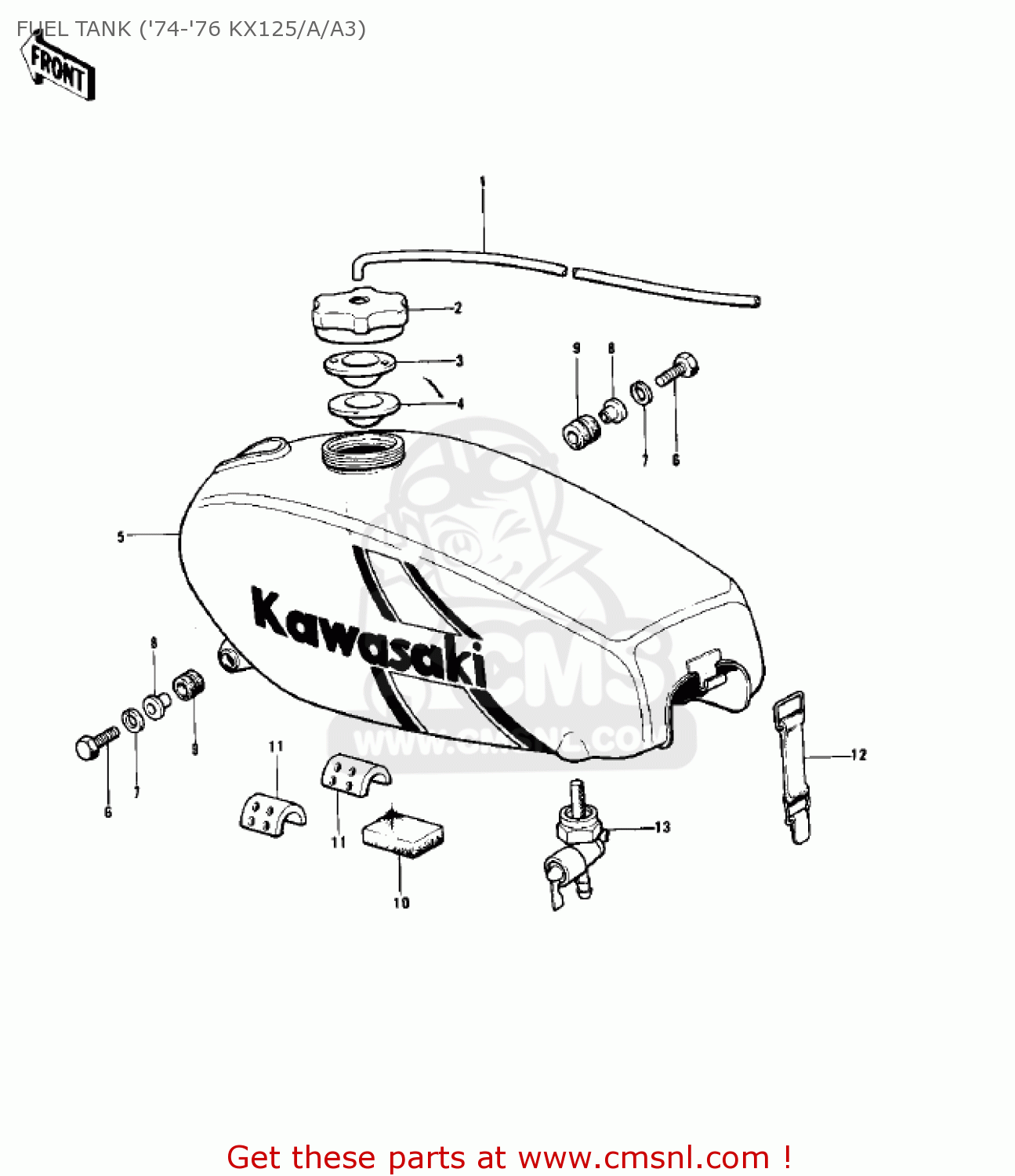

Fuel tank ('74-'76 kx125/a/a3) diagram KX125-A 1975
FUEL TANK ('74-'76 KX125/A/A3) KX125-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
700Q05280
ref: 1
TUBE-VINYL,5X280
€ 1.50
2
510491002
ref: 2
CAP,FUEL TANK
€ 9.50
3
51058004
ref: 3
WASHER,FUEL TANK CAP
€ 4.50
4
51059012
ref: 4
GASKET,FUEL TANK CAP
€ 4.50
5
510010982G
ref: 5
TANK,FUEL,L.GREEN
€ 142.50
5
510010983X
ref: 5
KX125A-3
TANK,FUEL,C.LIME
€ 142.50
6
112G0630
ref: 6
BOLT-UPSET
€ 1.00
7
461F0600
ref: 7
WASHER-SPRING,6MM
€ 0.50
8
92027216
ref: 8
COLLAR,L=16.1
€ 6.00
9
92075197
ref: 9
DAMPER
€ 12.00
10
51067002
ref: 10
NOT REQUIRED FOR 920
MAT-FUEL TANK
€ 12.00
11
92075198
ref: 11
DAMPER RUBBER
€ 9.50
11
92075215
ref: 11
KX125A-3
DAMPER,FUEL TANK
€ 9.50
12
92072076
ref: 12
BAND,L=40
€ 14.00
13
51023033
ref: 13
COCK ASSY,FUEL
€ 47.00
