ENGINE COVERS ('74-'76 KX125/A/A
KX125-A 1975

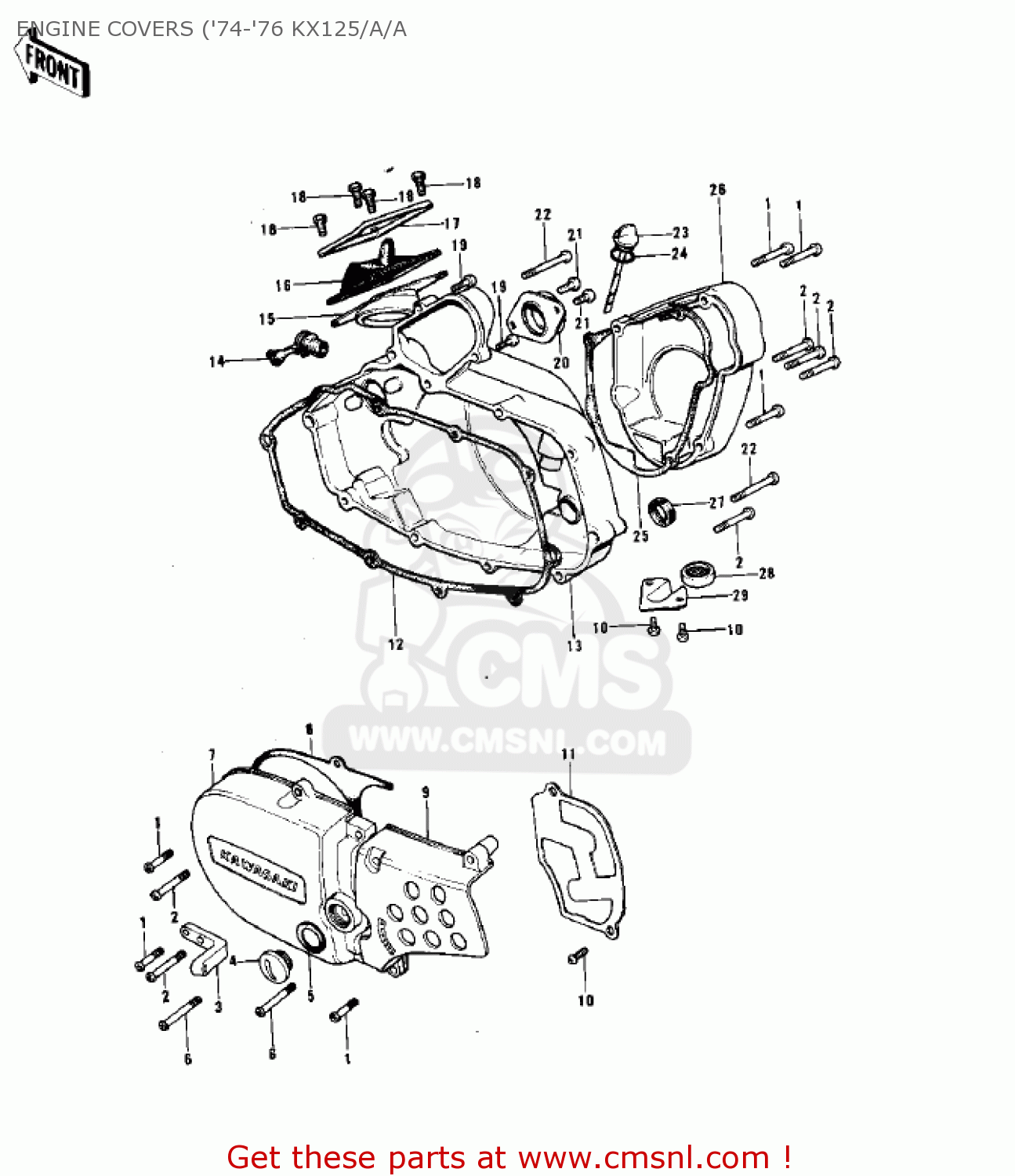

Engine covers ('74-'76 kx125/a/a diagram KX125-A 1975
ENGINE COVERS ('74-'76 KX125/A/A KX125-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
220B0620
ref: 1
SCREW-PAN HEAD,6X20
€ 2.50
1
220B0620
ref: 1
XX125A-3
SCREW-PAN HEAD,6X20
€ 2.50
2
220B0630
ref: 2
SCREW-PAN HEAD,6X30
€ 2.50
2
220B0630
ref: 2
KX125A
SCREW-PAN HEAD,6X30
€ 2.50
3
14044012
ref: 3
HOLDER-CABLE,CLUTCH
€ 8.00
4
92067017
ref: 4
PLUG,ENGINE COVER,LH,
€ 10.50
5
670B2016
ref: 5
O RING,16MM
€ 1.00
6
220B0635
ref: 6
SCREW-PAN HEAD,6X35
€ 1.00
6
220B0635
ref: 6
KX125A
SCREW-PAN HEAD,6X35
€ 1.00
7
140311053
ref: 7
FLAT BLACK
COVER-GENERATOR,F.BLA
€ 104.50
8
14045017
ref: 8
GASKET,L.H ENG COVER (MCA)
€ 8.00
9
1402602821
ref: 9
FLAT BLACK
COVER,CHN CASE,BLACK
€ 45.00
10
220B0612
ref: 10
SCREW-PAN HEAD,6X12
€ 1.00
11
14030060
ref: 11
COVER,OIL PUMP
€ 8.50
12
14046029
ref: 12
GASKET,R.H ENG COVER (MCA)
€ 19.50
13
1403210521
ref: 13
FLAT BLACK
COVER,R.H ENG,BLACK
€ 97.50
13
1403211621
ref: 13
KX125A-3
COVER,R.H ENGINE
€ 68.50
14
92071076
ref: 14
GROMMET,R.H ENG COV
€ 6.50
15
14038039
ref: 15
BOOT,CARBURETOR
€ 30.50
16
14038041
ref: 16
CAP,CARBURETOR
€ 3.00
17
14065007
ref: 17
HOLDER,CARBURETOR BOO
€ 10.50
18
220B0612
ref: 18
SCREW-PAN HEAD,6X12
€ 1.00
18
220B0616
ref: 18
KX125A
SCREW-PAN HEAD,6X16
€ 2.50
19
220B0516A
ref: 19
SCREW-PAN HEAD,5X16
€ 2.50
20
16065033
ref: 20
HOLDER-CARBURETOR
€ 13.50
21
220B0612
ref: 21
SCREW-PAN HEAD,6X12
€ 1.00
22
220B0645
ref: 22
SCREW-PAN HEAD,6X45
€ 2.50
23
16115024
ref: 23
PLUG,OIL FILLER
€ 13.00
24
670B2020
ref: 24
O RING,20MM
€ 1.00
25
14048005
ref: 25
KX125A-3
GASKET,CARB COVER (MCA)
€ 9.50
25
110091277
ref: 25
GASKET,CARBURETOR COV (MCA)
€ 8.50
26
1403006221
ref: 26
FLAT BLACK
COVER,CARB,BLACK
€ 51.00
26
1403006921
ref: 26
KX125A-3
COVER,CARBURETOR
€ 52.50
27
92049002
ref: 27
OIL SEAL SB16244
€ 6.00
28
16116006
ref: 28
PLUG,25X12
€ 10.50
29
14076006
ref: 29
COVER,FUEL DRAIN
€ 4.50
