FRONT HUB/BRAKE ('74-'76 KX125/A
KX125-A 1975

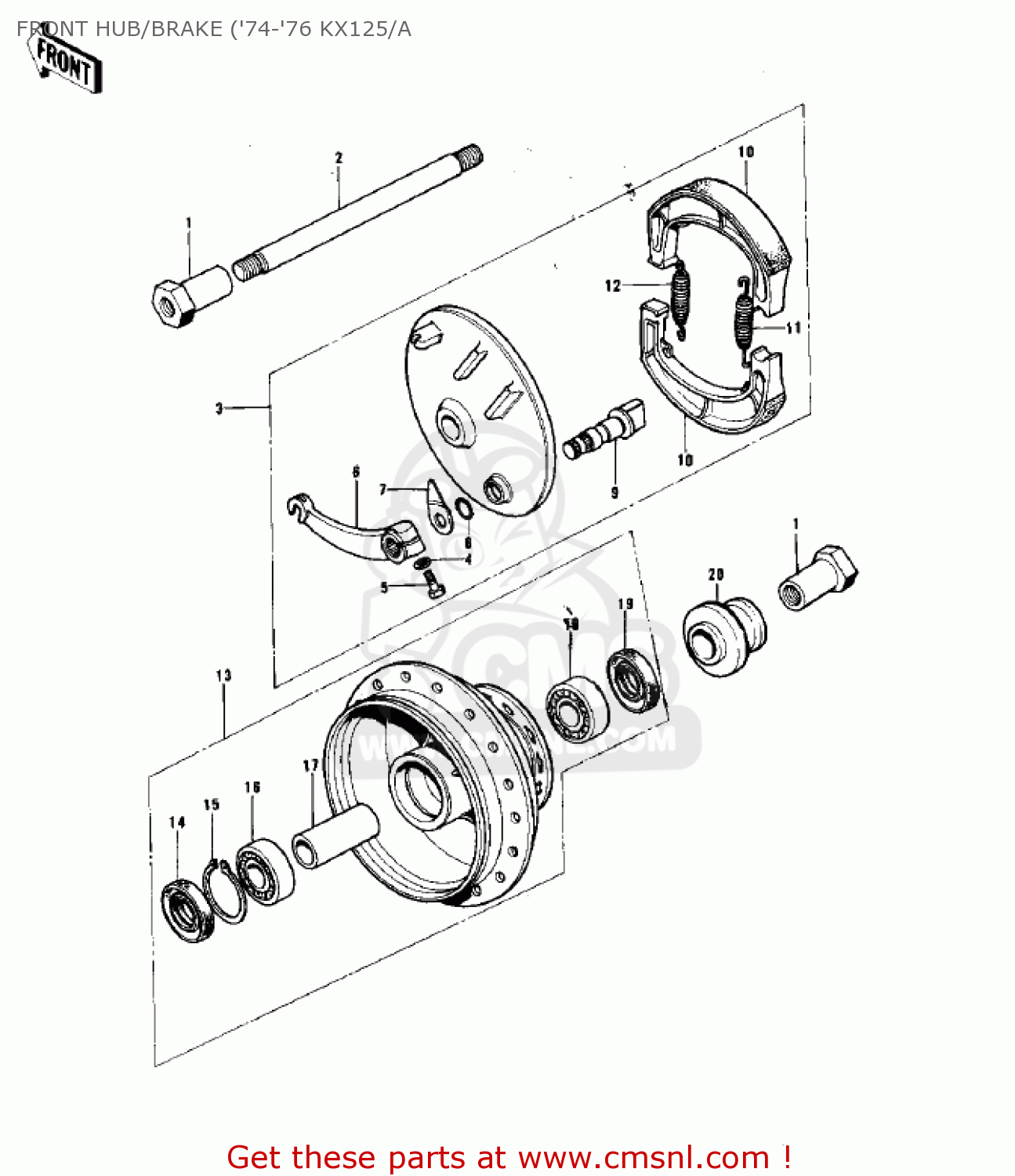

Front hub/brake ('74-'76 kx125/a diagram KX125-A 1975
FRONT HUB/BRAKE ('74-'76 KX125/A KX125-A 1975
×
prices are in EUR
ref
part #
description
quantity
1
41069024
ref: 1
COLLAR,FRONT AXLE
€ 9.00
2
41068043
ref: 2
AXLE,FR
€ 46.00
3
4103504921
ref: 3
FLAT BLACK
PANEL ASY,FR BK,BLCK
€ 194.00
3
4103507721
ref: 3
FLAT BLACK
PANEL ASSY,FRONT BRK
€ 194.00
4
410B0600
ref: 4
WASHER-PLAIN-SMALL,6M
€ 0.50
5
112B0622
ref: 5
BOLT, 6X22
€ 2.50
6
41053020
ref: 6
LEVER-BRAKE CAM
€ 38.00
7
41085002
ref: 7
INDICATOR,BRAKE SHOE
€ 2.50
8
92055004
ref: 8
RING-O,BRAKE CAM
€ 3.00
9
41050012
ref: 9
CAM-BRAKE
€ 18.00
10
41048015
ref: 10
SHOE,BRAKE (MCA)
€ 14.50
11
920811766
ref: 11
SPRING,BRAKE SHOE
€ 5.50
12
920811550
ref: 12
SPRING,BRAKE SHOE
€ 6.00
13
4103403121
ref: 13
FLAT BLACK
FRONT BRAKE DRUM ASSEMBLY,FLAT BLACK
€ 109.00
14
92050059
ref: 14
OIL SEAL,FR BK DRUM
€ 13.00
15
481J3700
ref: 15
CIRCLIP-TYPE-C,37MM
€ 1.50
16
601B6301
ref: 16
BEARING-BALL,#6301C3
€ 13.00
17
41039025
ref: 17
COLLAR,L=44
€ 10.00
18
601B6201
ref: 18
BEARING-BALL,#6201C3
€ 7.00
19
654A103208
ref: 19
UNAVAILABLE IN PRICE BOOK
€ 0.00
20
41069025
ref: 20
COLLAR,FRONT AXLE
€ 10.00
