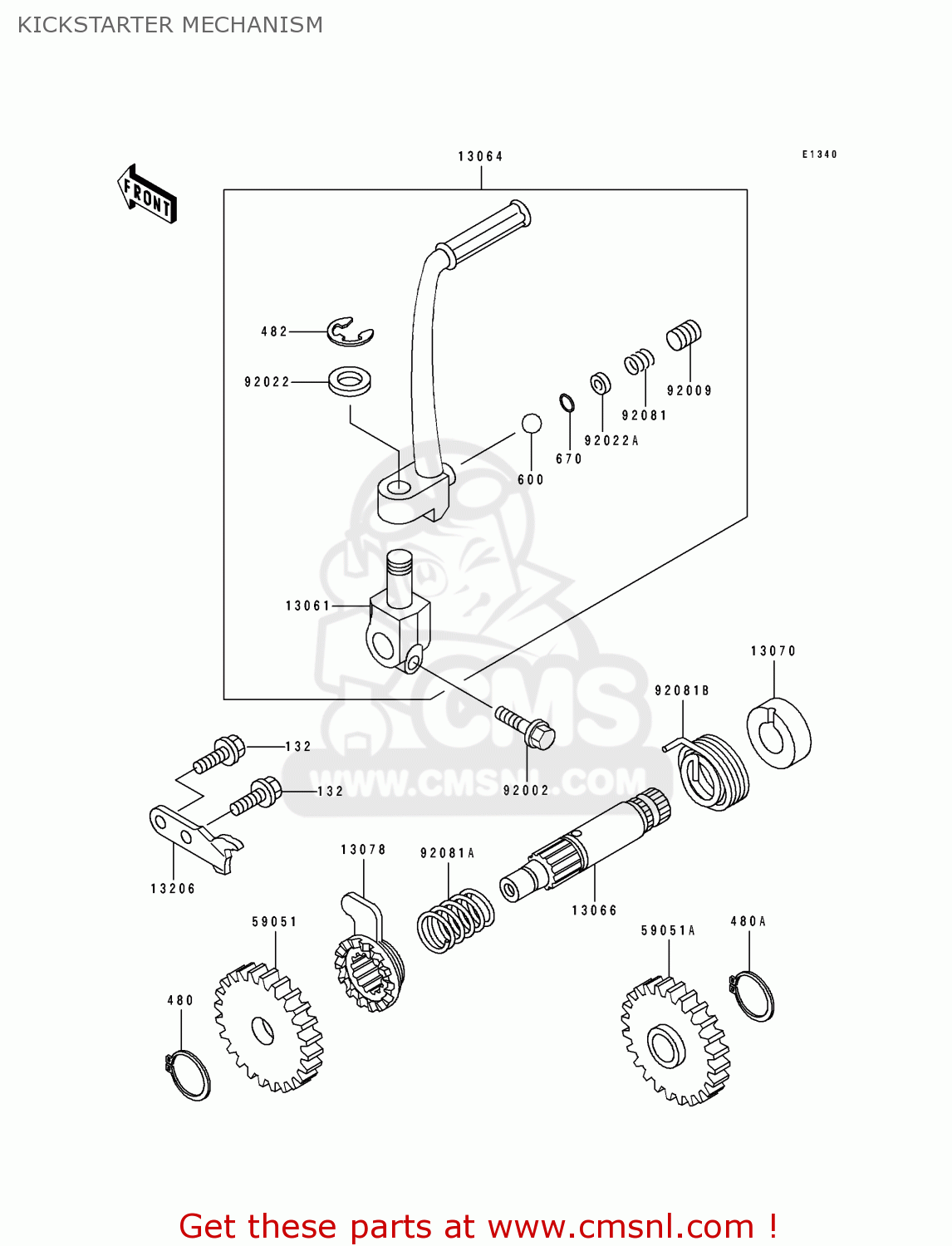

KICKSTARTER MECHANISM

ref

part #

description

quantity

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

480

480J1200
ref: 480

CIRCLIP-TYPE-C,12MM

€ 0.50

480A

480J1500
ref: 480A

CIRCLIP-TYPE-C,15MM

€ 1.00

482

482K8000
ref: 482

CIRCLIP-TYPE-E,8MM

€ 2.00

600

600A0800
ref: 600

BALL-STEEL,1/4

€ 0.50

670

670B1504
ref: 670

O RING,4MM

€ 2.50

13061

130611301
ref: 13061

BOSS,KICK LEVER

€ 34.50

13064

130641154
ref: 13064

LEVER-ASSY-KICK,PEDAL

€ 109.00

13066

130661077
ref: 13066

SHAFT-KICK

€ 69.50

13070

130701137
ref: 13070

GUIDE,KICK SPRING

€ 5.50

13078

130781004
ref: 13078

RACHET

€ 44.00

13206

132061055
ref: 13206

GUIDE-KICK

€ 8.50

59051

590511026
ref: 59051

GEAR,KICK,32T

€ 38.50

59051A

590511147
ref: 59051A

GEAR-SPUR,31T

€ 47.50

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92009

920091312
ref: 92009

SCREW

€ 3.00

92022

920221236
ref: 92022

WASHER,12.2X20X1.6

€ 2.50

92022A

920221481
ref: 92022A

PLATE

€ 3.00

92081

92081020
ref: 92081

SPRING-KICK PEDAL

€ 2.50

92081A

92081122
ref: 92081A

SPRING,RATCHET

€ 6.00

92081B

920811907
ref: 92081B

SPRING,KICKSTARTER

€ 9.50
