CRANKSHAFT/PISTON

KX100-B1 1991 UNITED KINGDOM AL AS

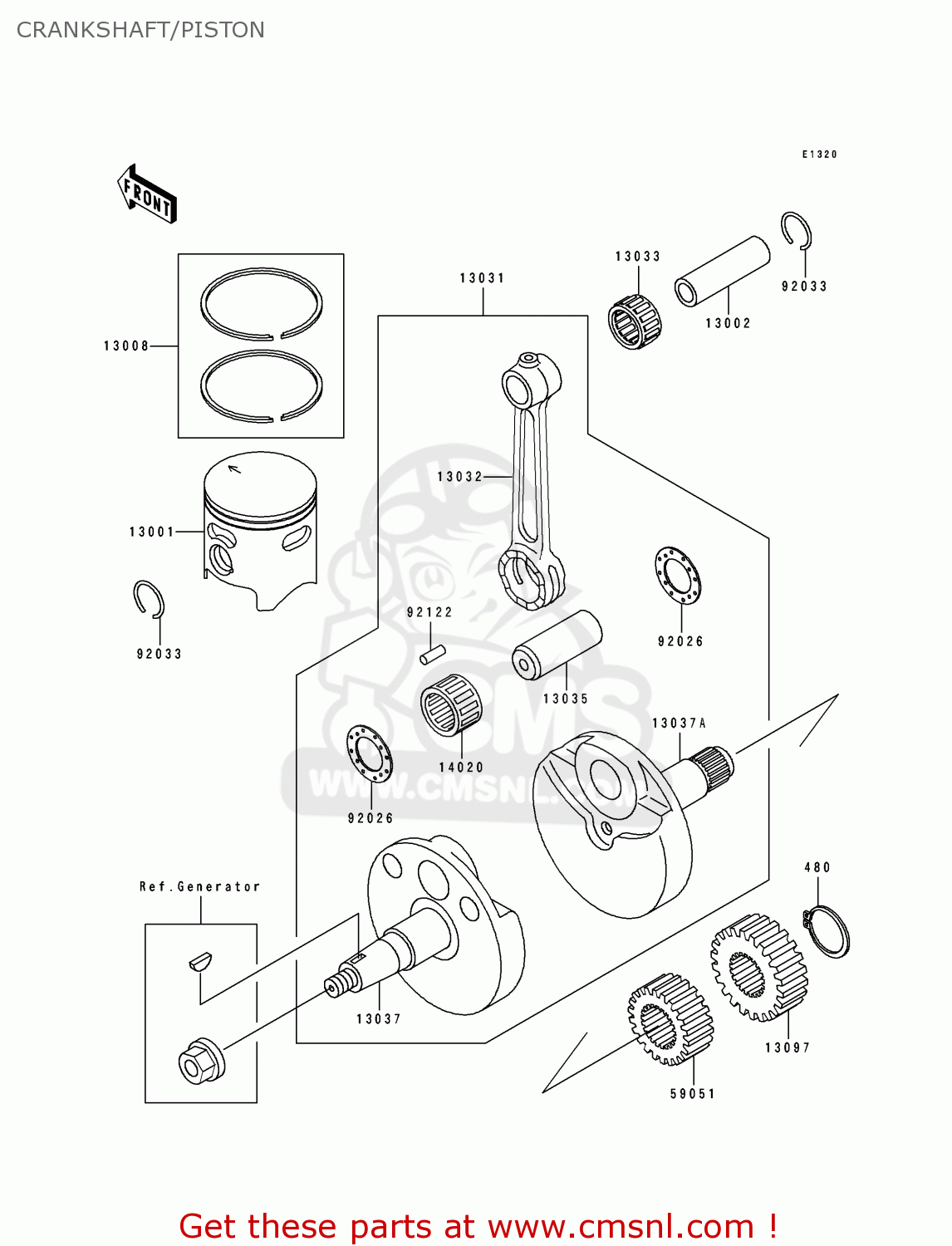

Crankshaft/piston diagram KX100-B1 1991 UNITED KINGDOM AL AS

prices are in EUR

ref

part #

description

quantity

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

13001

130011308
ref: 13001

PISTON-ENGINE,(B)

€ 60.50

13002

130021018
ref: 13002

PIN-PISTON

€ 26.00

13008

130081107
ref: 13008

RING-SET-PISTON

€ 40.50

13031

130311313
ref: 13031

CRANKSHAFT-COMP

€ 222.00

13032

130321039
ref: 13032

ROD-CONNECTING

€ 67.50

13033

130331053
ref: 13033

BEARING-SMALL END,14R

€ 22.00

13035

130351054
ref: 13035

PIN-CRANK

€ 23.50

13037

130371396
ref: 13037

CRANKSHAFT,LH

€ 139.00

13037A

130371397
ref: 13037A

CRANKSHAFT,RH

€ 145.50

13097

130971148
ref: 13097

GEAR-PRIMARY SPUR,20T

€ 60.50

14020

140201076
ref: 14020

RETAINER

€ 37.50

59051

590511146
ref: 59051

GEAR-SPUR,PUMP,22T

€ 21.00

92026

920261136
ref: 92026

SPACER,22.2X37X1.0

€ 5.50

92033

920331050
ref: 92033

RING-SNAP

€ 2.00

92122

921221177
ref: 92122

ROLLER

€ 2.50
