CLUTCH
KX100-B1 1991 UNITED KINGDOM AL AS

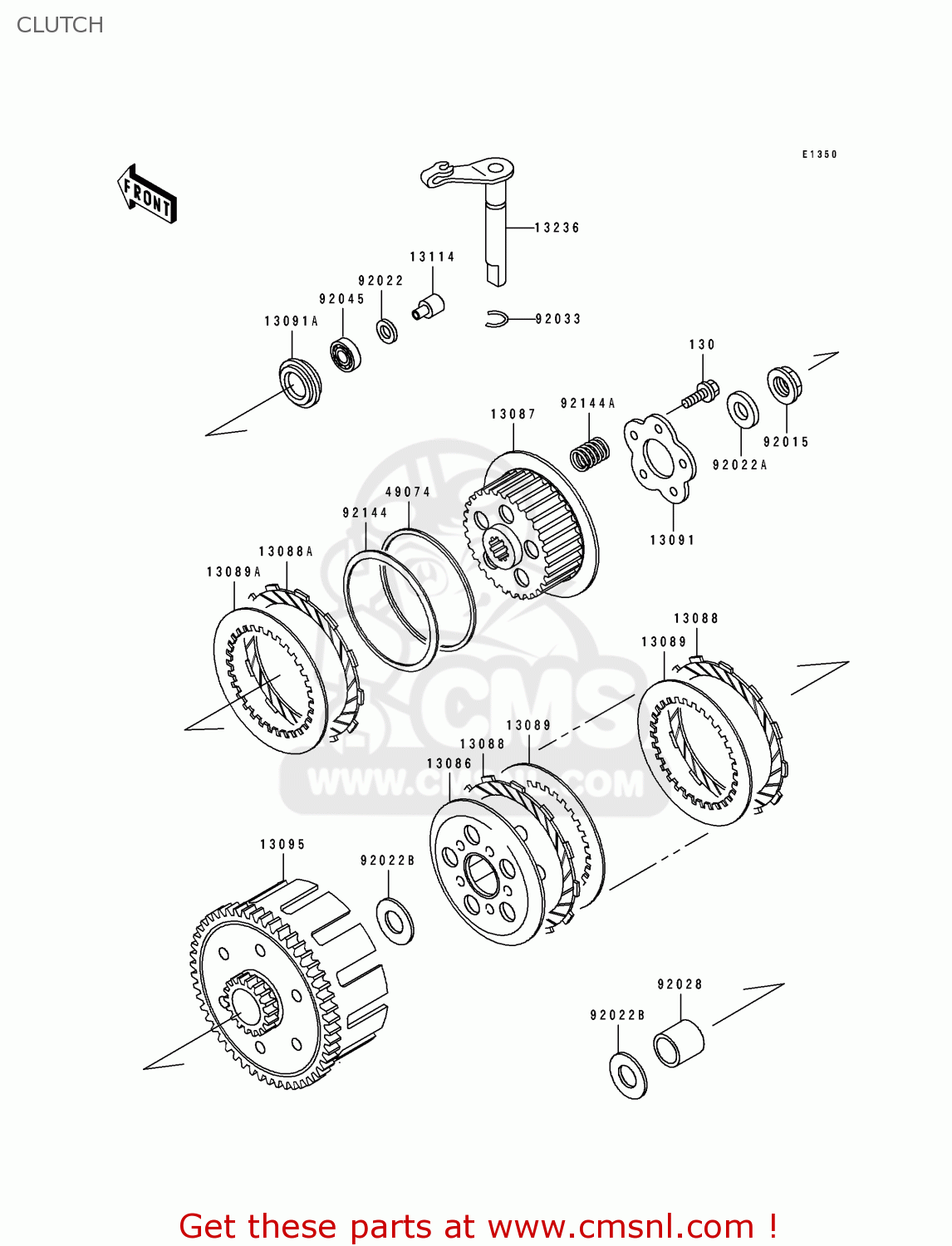

Clutch diagram KX100-B1 1991 UNITED KINGDOM AL AS
CLUTCH KX100-B1 1991 UNITED KINGDOM AL AS
×
prices are in EUR
ref
part #
description
quantity
130
130P0520
ref: 130
BOLT-FLANGED
€ 1.00
13086
130861058
ref: 13086
WHEEL-CLUTCH
€ 26.00
13087
130871090
ref: 13087
HUB-CLUTCH
€ 37.50
13088
130881070
ref: 13088
PLATE-FRICTION (NAS)
€ 10.50
13088A
130881082
ref: 13088A
PLATE-FRICTION (NAS)
€ 9.50
13089
130891009
ref: 13089
PLATE-CLUTCH,STEEL (NAS)
€ 8.50
13089A
130891101
ref: 13089A
PLATE-CLUTCH (NAS)
€ 6.50
13091
130911324
ref: 13091
HOLDER,CLUTCH
€ 4.50
13091A
130911517
ref: 13091A
HOLDER
€ 7.50
13095
130951165
ref: 13095
HOUSING-COMP-CLUTCH
€ 213.50
13114
131141053
ref: 13114
PUSHER-CLUTCH
€ 14.00
13236
132361158
ref: 13236
LEVER-COMP,RELEASE
€ 19.50
49074
490741052
ref: 49074
PLATE-THRUST
€ 4.50
92015
920151706
ref: 92015
NUT
€ 5.00
92022
920221290
ref: 92022
WASHER,7X12.5X0.8
€ 2.00
92022A
920221831
ref: 92022A
WASHER
€ 3.50
92022B
92022255
ref: 92022B
WASHER
€ 5.50
92028
920281149
ref: 92028
BUSHING,17X22X21.1
€ 18.00
92033
92036023
ref: 92033
CIRCLIP,VALVE GUIDE
€ 0.50
92045
920451236
ref: 92045
BEARING-BALL,627
€ 19.50
92144
921441370
ref: 92144
SPRING
€ 7.50
92144A
921441384
ref: 92144A
SPRING,CLUTCH
€ 3.50
