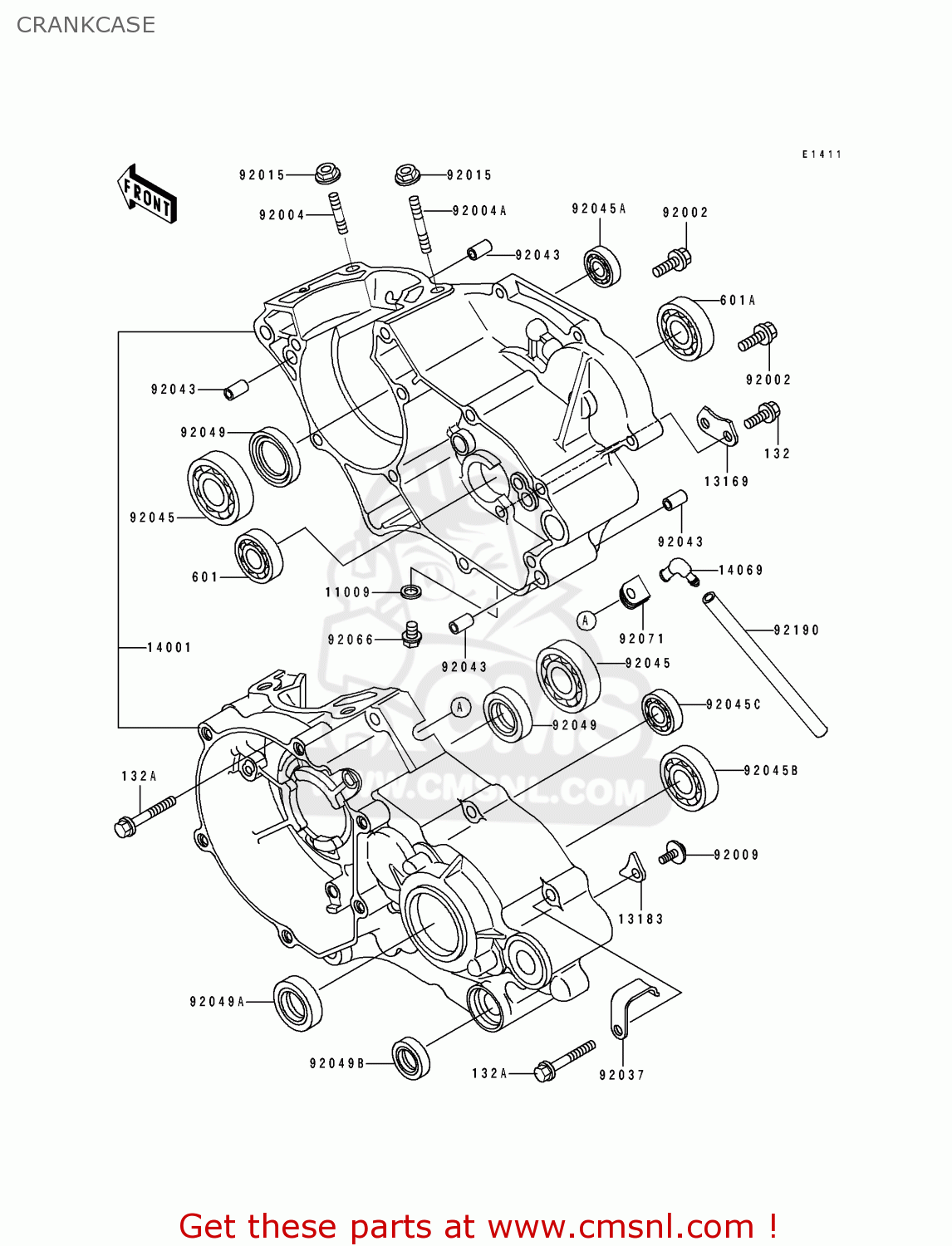

CRANKCASE

ref

part #

description

quantity

132

132G0612
ref: 132

BOLT-FLANGED-SMALL

€ 1.50

132A

132G0635
ref: 132A

BOLT-FLANGED-SMALL

€ 1.50

601

601A6002
ref: 601

BEARING-BALL,#6002

€ 9.50

601A

601A6203
ref: 601A

BEARING-BALL,#6203

€ 10.50

11009

92065058
ref: 11009

GASKET, 10,5X16X1 (NAS)

€ 2.50

13169

13169012
ref: 13169

PLATE,CHANGE DRAM

€ 11.50

13183

131831182
ref: 13183

PLATE

€ 3.00

14001

140015298
ref: 14001

SET-CRANKCASE

€ 489.50

14069

14069002
ref: 14069

BREATHER

€ 17.50

92002

920021659
ref: 92002

BOLT

€ 3.00

92004

920041008
ref: 92004

STUD, 8X25

€ 3.50

92004A

920041201
ref: 92004A

STUD

€ 4.00

92009

920091563
ref: 92009

SCREW,6X10

€ 2.50

92015

920151143
ref: 92015

NUT,8MM

€ 0.50

92037

920371318
ref: 92037

CLAMP,HARNESS

€ 4.50

92043

92042007
ref: 92043

PIN-DOWEL

€ 4.00

92045

920451059
ref: 92045

BEARING-BALL,R-6304C3

€ 29.00

92045A

920451211
ref: 92045A

BEARING-BALL

€ 11.00

92045B

920451226
ref: 92045B

BEARING-BALL,6204

€ 25.00

92045C

920451235
ref: 92045C

BEARING-BALL,6001C3ML

€ 15.50

92049

920491188
ref: 92049

SEAL-OIL,SD20407GS

€ 12.00

92049A

920491292
ref: 92049A

SEAL-OIL,TC25375

€ 7.00

92049B

92051005A
ref: 92049B

OIL SEAL,TB13225.5

€ 5.50

92066

920661241
ref: 92066

PLUG

€ 4.00

92071

92071042
ref: 92071

GROMMET

€ 2.50

92190

921901116
ref: 92190

TUBE,6X9X330

€ 8.00
