GEAR CHANGE MECHANISM

KX100-B1 1991 UNITED KINGDOM AL AS

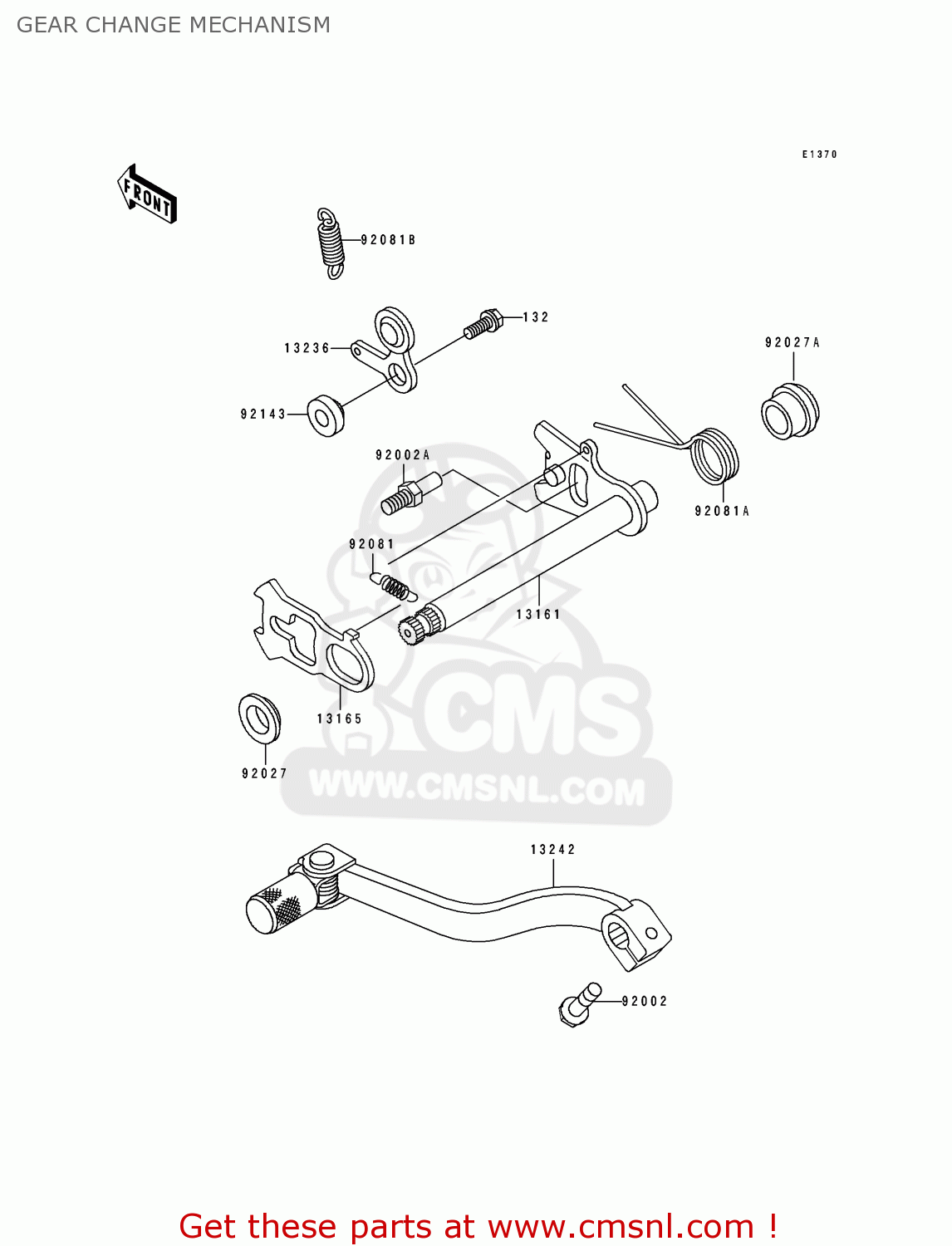

Gear change mechanism diagram KX100-B1 1991 UNITED KINGDOM AL AS

prices are in EUR

ref

part #

description

quantity

132

132G0616
ref: 132

BOLT-FLANGED-SMALL

€ 1.00

13161

131611126
ref: 13161

LEVER-COMP-CHANGE SHA

€ 46.00

13165

131651114
ref: 13165

PAWL,CHANGE LEVER

€ 8.00

13236

132361152
ref: 13236

LEVER-COMP,POSITION

€ 6.50

13242

132421286
ref: 13242

LEVER-ASSY-CHANGE,PED

€ 48.50

92002

920021237
ref: 92002

BOLT,6X20

€ 2.50

92002A

920021601
ref: 92002A

BOLT,8X15

€ 5.00

92027

920271939
ref: 92027

COLLAR

€ 5.50

92027A

920271940
ref: 92027A

COLLAR

€ 6.50

92081

92081076
ref: 92081

SPRING-CHANG LEVER

€ 3.50

92081A

920811716
ref: 92081A

SPRING,CHANGE SHAFT R

€ 6.50

92081B

92083012
ref: 92081B

SPRING,CHNG DRUM LEV

€ 3.00

92143

921431055
ref: 92143

COLLAR

€ 4.50
