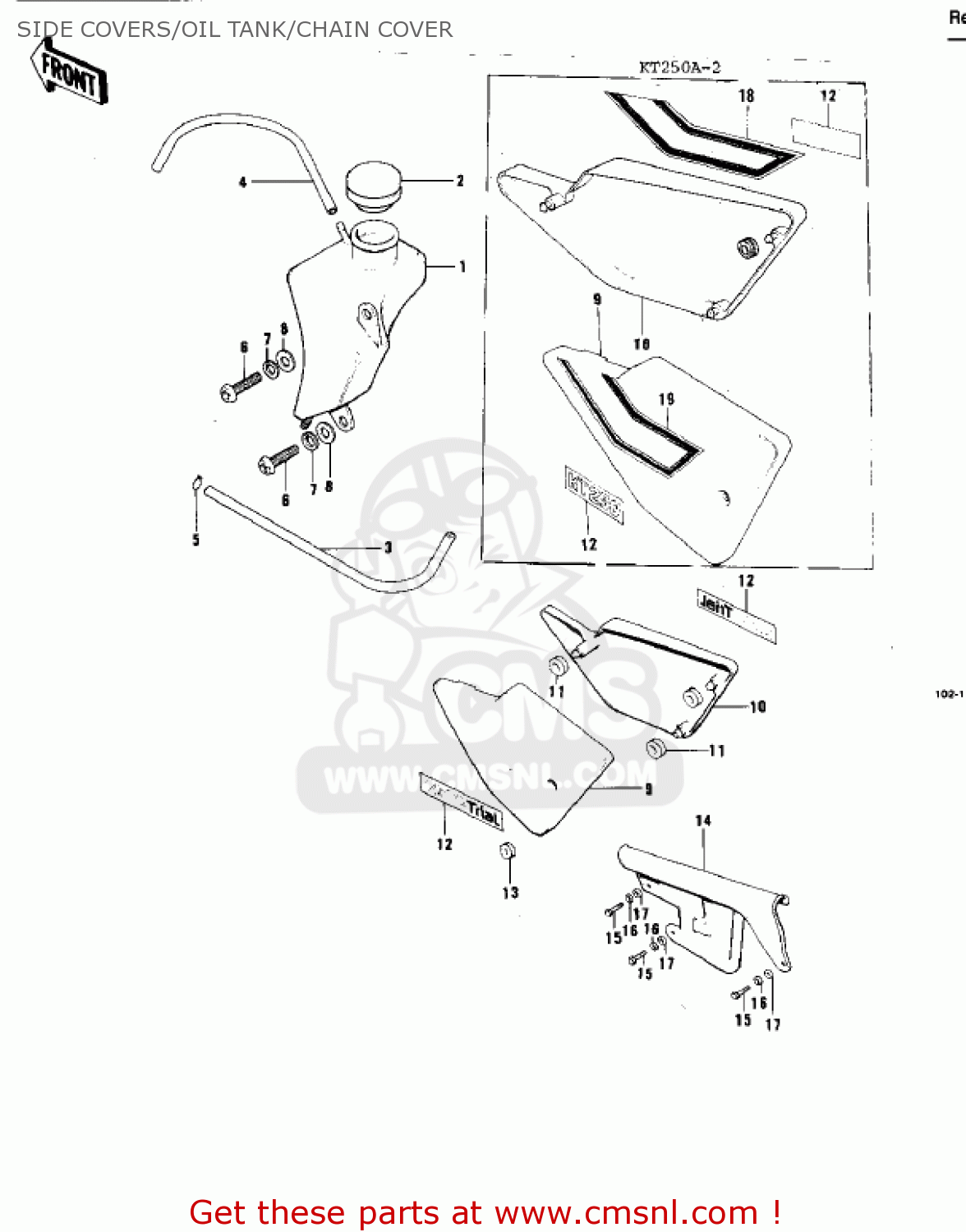

SIDE COVERS/OIL TANK/CHAIN COVER

ref

part #

description

quantity

1

52001044
ref: 1

TANK,OIL

€ 20.00

2

510491004
ref: 2

CAP-OIL,TANK

€ 10.00

3

92059115
ref: 3

PIPE,OIL TANK

€ 7.00

4

700Q05400
ref: 4

TUBE-VINYL,5X400

€ 1.50

5

92037072
ref: 5

CLAMP,TUBE

€ 4.00

6

220B0614
ref: 6

SCREW-PAN HEAD,6X14

€ 2.00

7

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

8

92022125
ref: 8

WASHER,6.5X20X1.6

€ 1.00

9

360010502G
ref: 9

COVER,L.H SIDE,GREEN

€ 35.50

9

360010501Y
ref: 9
KT250A-2

COVER,L.H SIDE,P.LIME

€ 39.50

10

360070441Y
ref: 10

COVER,R.H SIDE,P.LIME

€ 54.00

10

360070441Y
ref: 10
KT250A-2

COVER,R.H SIDE,P.LIME

€ 54.00

11

92071056
ref: 11

GROMMET

€ 2.50

12

56018191
ref: 12

EMBLEM,SIDE COVER

€ 19.50

12

56018230SP
ref: 12
KT250A-2

DECAL,SIDE COVER

€ 2.50

12

56018230SP
ref: 12
KT250A-2

DECAL,SIDE COVER

€ 2.50

13

92071080
ref: 13

GROMMET,SIDE COVER,RH

€ 3.50

14

3601406021
ref: 14

COVER,CHAIN,F9BLACK

€ 51.50

14

360140601W
ref: 14
KT250A-2

COVER,CHAIN,M.SILVER

€ 51.50

15

220B0614
ref: 15

SCREW-PAN HEAD,6X14

€ 2.00

16

461F0600
ref: 16

WASHER-SPRING,6MM

€ 0.50

17

92022024
ref: 17

WASHER,7X16X1.2

€ 2.50

18

56027396
ref: 18
KT250A-2

EMBLEM,R.H SIDE COVER

€ 8.50

19

56027395
ref: 19
KT250A-2

EMBLEM,L.H SIDE COVER

€ 5.50
