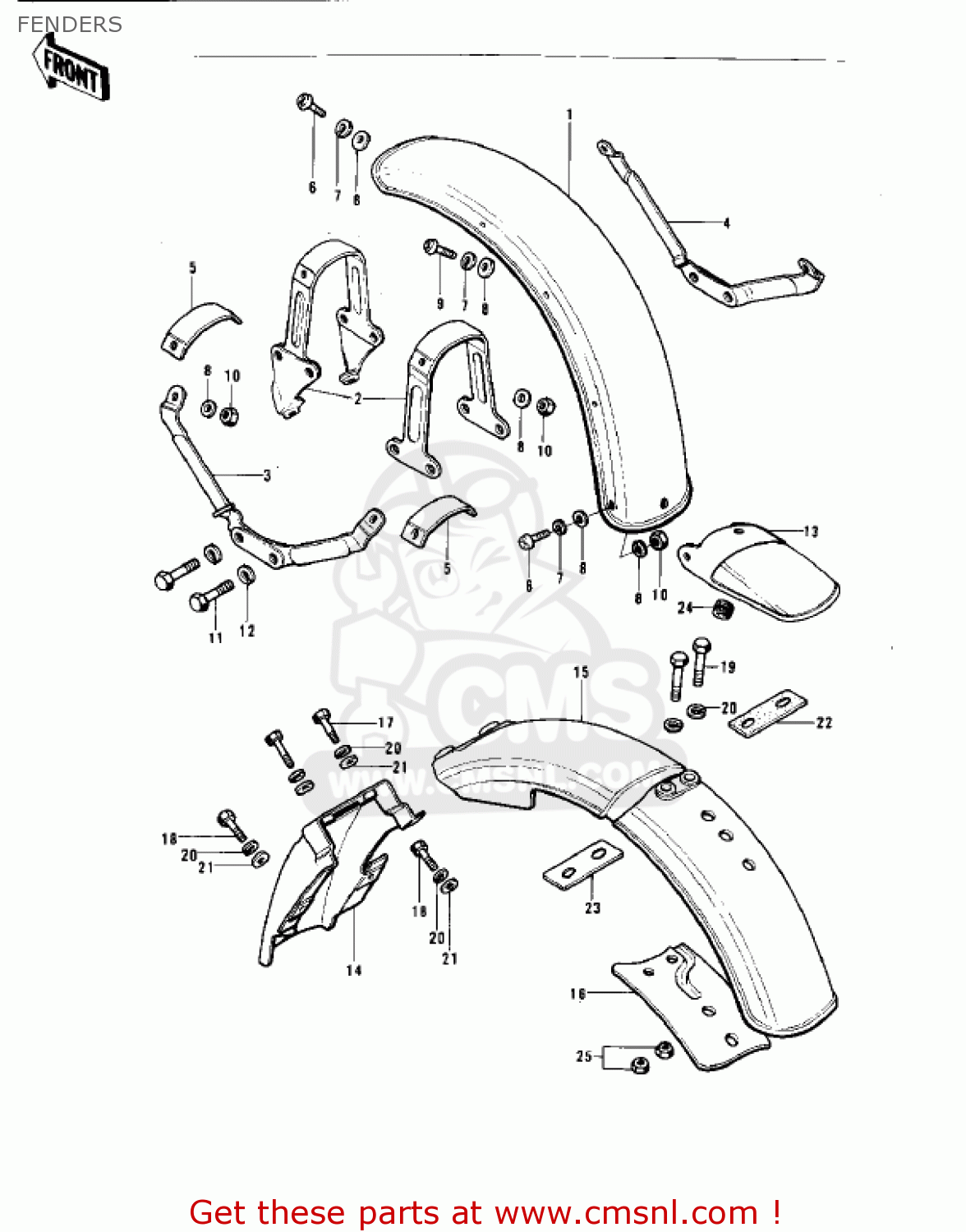

FENDERS

ref

part #

description

quantity

1

35004103
ref: 1

FENDER,FRONT

€ 32.50

2

35009034
ref: 2

BRACE,FRONT FENDER

€ 34.50

2

35009037
ref: 2
KT250A-2

BRACE,FRONT FENDER

€ 27.50

3

35011031
ref: 3

STAY,FRONT FENDER,L.H

€ 47.00

4

35011032
ref: 4

STAY,FRONT FENDER,R.H

€ 47.00

5

35013016
ref: 5

PLATE,FRONT FENDER

€ 8.50

6

220E0616
ref: 6

SCREW-PAN HEAD,6X16

€ 3.00

7

461F0600
ref: 7

WASHER-SPRING,6MM

€ 0.50

8

411B0600
ref: 8

WASHER-PLAIN,6MM

€ 0.50

9

220E0620
ref: 9

SCREW-PAN HEAD,6X20

€ 2.00

10

311B0600
ref: 10

NUT,6MM

€ 0.50

11

115G0818
ref: 11

BOLT SMALL-UPSET

€ 2.50

12

461F0800
ref: 12

WASHER-SPRING,8MM

€ 0.50

13

35019010
ref: 13

FLAP,REAR FENDER

€ 6.00

14

35022128
ref: 14
FRONT

FENDER,REAR

€ 46.50

15

35022127
ref: 15
REAR

FENDER,REAR

€ 30.50

16

35034022
ref: 16

3RACKET,REAR FENDER

€ 6.00

17

112B0622
ref: 17

BOLT, 6X22

€ 2.50

17

112B0622
ref: 17

BOLT, 6X22

€ 2.50

18

112B0614
ref: 18

BOLT-UPSET 6X14

€ 2.50

18

112B0614
ref: 18

BOLT-UPSET 6X14

€ 2.50

19

112G0625
ref: 19

BOLT-UPSET,6X25

€ 4.00

19

112G0625
ref: 19

BOLT-UPSET,6X25

€ 4.00

20

461F0600
ref: 20

WASHER-SPRING,6MM

€ 0.50

21

92022125
ref: 21

WASHER,6.5X20X1.6

€ 1.00

22

92075072
ref: 22

DAMPER RUBBER

€ 0.50

23

35026008
ref: 23

BRACKET,REAR FENDER

€ 2.50

24

92071024
ref: 24

GROMMET

€ 3.00

25

92019019
ref: 25

NUT,6MM

€ 4.00
