CARBURETOR
KT250-A2 TRIAL 1976 USA / MPH

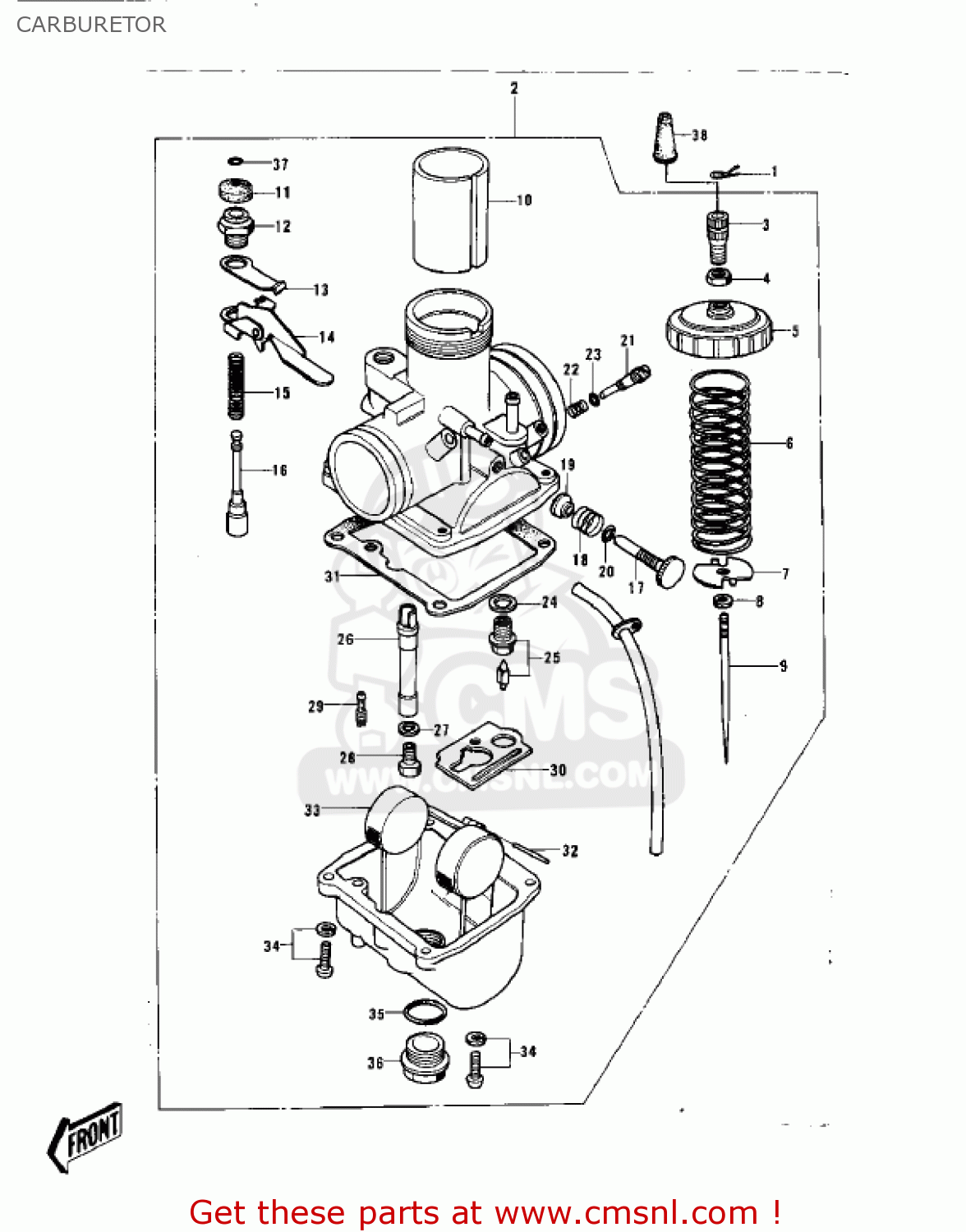

Carburetor diagram KT250-A2 TRIAL 1976 USA / MPH
CARBURETOR KT250-A2 TRIAL 1976 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
92036018
ref: 1
CIRCLIP
€ 2.50
2
16001250
ref: 2
CARBURETOR ASSY
€ 282.50
3
16002014
ref: 3
ADJUSTER-CABLE
€ 8.00
4
16003006
ref: 4
NUT-CABLE ADJUST LOCK
€ 4.50
5
16004018
ref: 5
CAP-CHAMBER,MIXING
€ 15.00
6
16006024
ref: 6
SPRING,THROTTLE VALV
€ 7.50
7
16007026
ref: 7
SEAT,THROTTE VALVE
€ 2.00
8
16008010
ref: 8
CLAMP,E-TYPE
€ 5.00
9
16009066
ref: 9
JET NEEDLE 5D1
€ 15.50
10
16025076
ref: 10
VALVE,THROTTLE CA.2.0
€ 59.50
11
16036012
ref: 11
BOOT,STARTER PLUNGER
€ 4.50
12
16012019
ref: 12
CAP-STARTER PLUNGER
€ 12.50
13
16013009
ref: 13
SPRING,STARTER LEVER
€ 3.50
14
16063004
ref: 14
LEVER,STARTER PLUNGER
€ 22.50
15
16013008
ref: 15
SPRING-STARTER PLUNG
€ 4.50
16
16016011
ref: 16
PLUNGER
€ 24.50
17
16021026
ref: 17
SCREW,PILOT AIR
€ 8.00
18
16022013
ref: 18
SPRING,THROTTLE ADJUS
€ 3.00
19
16045003
ref: 19
CAP,THROTTLE ADJUSTER
€ 8.50
20
670B1504
ref: 20
O RING,4MM
€ 2.50
21
16014015
ref: 21
SCREW,PILOT AIR
€ 8.00
22
16022007
ref: 22
SPRING-THR STOP SCREW
€ 5.50
23
670B1503
ref: 23
O RING,3MM
€ 2.50
24
16029004
ref: 24
WASHER-FLOAT VLV SEAT
€ 2.50
25
16030024
ref: 25
VALVE-FLOAT
€ 30.50
26
16017087
ref: 26
NEEDLE JET,O-4
€ 17.50
27
16034001
ref: 27
WASHER-MAIN JET
€ 2.50
28
92063093
ref: 28
STD
MAIN JET,#85R
€ 10.50
28
920631030
ref: 28
OPT
JET-MAIN,#A80R
€ 11.00
28
92063124
ref: 28
OPT
MAIN JET,#82.5R
€ 10.50
28
92063094
ref: 28
OPT
JET-MAIN,#87.5R
€ 11.00
28
920631029
ref: 28
OPT
JET-MAIN,#A90R
€ 10.50
29
92064022
ref: 29
PILOT JET #30 ISO
€ 11.50
30
16038018
ref: 30
PLATE,FLOAT CHAMBER
€ 2.00
31
16019027
ref: 31
GASKET,FLOAT CHAMBER
€ 12.00
32
16032003
ref: 32
FLOAT PIN
€ 4.00
33
16031010
ref: 33
FLOAT
€ 16.50
34
16033009
ref: 34
SCREW-FLOAT CHAMBER
€ 0.50
35
670B2018
ref: 35
O RING,18MM
€ 1.00
36
16049006
ref: 36
COVER-MAIN JET
€ 10.50
37
16088003
ref: 37
O RING,STARTER PLUNG
€ 2.00
38
16036008
ref: 38
CAP-CABLE ADJUSTER
€ 2.00
