METER/HEADLIGHT/TAILLIGHT
KT250-A2 TRIAL 1976 USA / MPH

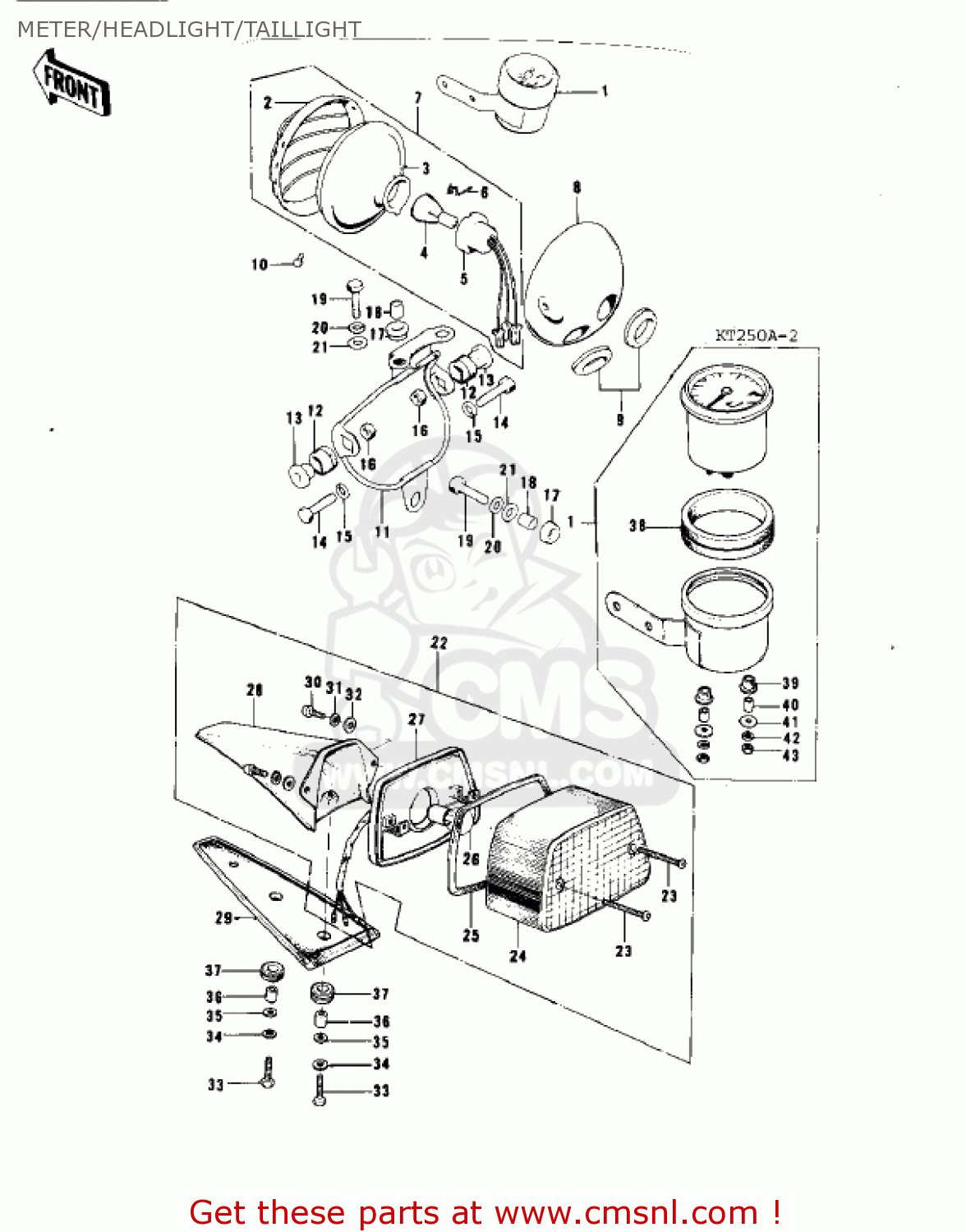

Meter/headlight/taillight diagram KT250-A2 TRIAL 1976 USA / MPH
METER/HEADLIGHT/TAILLIGHT KT250-A2 TRIAL 1976 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
1
25001085
ref: 1
SPEEDOMETER ASSY,MPH
€ 437.00
2
23006047
ref: 2
RIM,HEAD LAMP
€ 28.00
3
23007063
ref: 3
LENS UNIT,HEAD LAMP
€ 24.50
4
92069078
ref: 4
BULB,6V,35/35W
€ 43.50
5
23008039
ref: 5
SOCKET-ASSY,HEAD LAMP
€ 37.00
6
23009015
ref: 6
SPRING,HEAD LAMP LENS
€ 3.50
7
23004060
ref: 7
LAMP UNIT,HEAD
€ 67.50
8
230050213G
ref: 8
BODY,HEAD LAMP.WHITE
€ 41.00
9
23023011
ref: 9
GROMMET
€ 4.50
10
23019025
ref: 10
SCREW,PAN HEAD,5X14
€ 1.50
11
230640203G
ref: 11
BRACKET,HEAD LAMP,WHI
€ 45.00
12
23066017
ref: 12
DAMPER
€ 3.00
13
23052008
ref: 13
COLLAR
€ 10.00
14
92007041
ref: 14
BOLT,HEX HEAD,10X30
€ 7.00
15
461F1000
ref: 15
WASHER-SPRING,10MM
€ 0.50
16
92016027
ref: 16
NUT,10MM
€ 2.00
17
92075209
ref: 17
DAMPER RUBBER
€ 3.00
18
92027120
ref: 18
COLLAR
€ 3.00
19
112G0630
ref: 19
BOLT-UPSET
€ 1.00
20
461F0600
ref: 20
WASHER-SPRING,6MM
€ 0.50
21
92022237
ref: 21
WASHER-PLAIN
€ 2.50
22
230240843G
ref: 22
LAMP ASSY, TAIL,WHITE
€ 132.00
22
230240843G
ref: 22
KT250A-2
LAMP ASSY, TAIL,WHITE
€ 132.00
23
220E0325
ref: 23
SCREW-PAN-CROS
€ 2.00
23
220B0330
ref: 23
KT250A-2
SCREW-PAN-CROS
€ 1.00
24
23026040
ref: 24
LENS,TAIL LAMP
€ 28.50
24
23026040
ref: 24
KT250A-2
LENS,TAIL LAMP
€ 28.50
25
23028020
ref: 25
GASKET,TAIL LAMP LENS (NAS)
€ 6.50
26
92069028
ref: 26
BULB 6V 17/5.3W
€ 4.50
27
23027044
ref: 27
BODY-COMP-TAIL LAMP
€ 52.00
27
23027044
ref: 27
KT250A-2
BODY-COMP-TAIL LAMP
€ 52.00
28
230360423G
ref: 28
BKT,LICENSE PLT,WHITE
€ 49.50
29
23066018
ref: 29
DAMPER RUBBER
€ 4.00
30
220B0510
ref: 30
SCREW-PAN-CROS,5X10
€ 0.50
31
461F0500
ref: 31
WASHER-SPRING,5MM
€ 0.50
32
411B0500
ref: 32
WASHER-PLAIN,5MM
€ 0.50
33
112G0620
ref: 33
BOLT 6X20
€ 1.00
33
112G0620
ref: 33
BOLT 6X20
€ 1.00
34
461F0600
ref: 34
WASHER-SPRING,6MM
€ 0.50
35
92022125
ref: 35
WASHER,6.5X20X1.6
€ 1.00
36
92027129
ref: 36
COLLAR,6.8X10X8.5
€ 3.00
3
92075263
ref: 3
DAMPER
€ 4.50
38
25019022
ref: 38
KT250A-2
DAMPER RUBBER,METER
€ 3.50
39
25019023
ref: 39
KT250A-2
DAMPER RUBBER,METER
€ 2.50
40
25021005
ref: 40
KT250A-2
METER FITTING COLLAR
€ 4.50
41
92022263
ref: 41
KT250A-2
WASHER,PLAIN,6MM
€ 1.50
42
461F0400
ref: 42
KT250A-2
WASHER-SPRING,4MM
€ 0.50
43
311B0400
ref: 43
KT250A-2
NUT-HEX,4MM
€ 0.50
