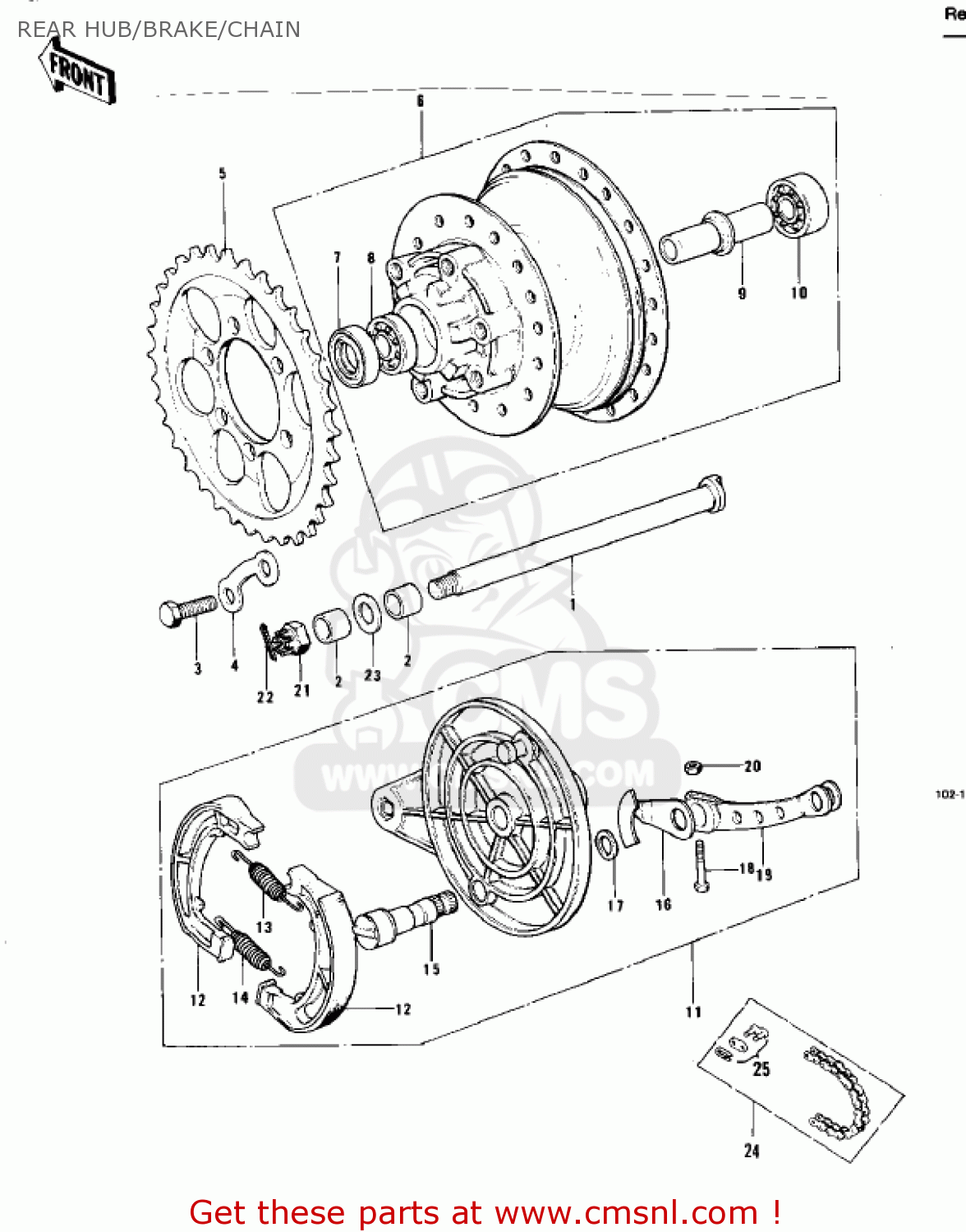

REAR HUB/BRAKE/CHAIN

ref

part #

description

quantity

1

42031046
ref: 1

AXLE,REAR

€ 45.50

2

42032036
ref: 2

COLLAR-REAR AXLE

€ 12.50

3

92001087
ref: 3

BOLT-HEX HEAD,10X25

€ 3.00

4

92088007
ref: 4

WASHER,LOCK

€ 8.00

5

42041151
ref: 5

REAR SPROCKET 52T

€ 71.50

6

4200502980
ref: 6

DRUM ASY,RR BK,BUFF

€ 136.00

7

92050009
ref: 7

OIL SEAL-RR BRK DRUM

€ 12.00

8

601B6302
ref: 8

BEARING-BALL,#6302C3

€ 16.00

9

42010019
ref: 9

SPACER-RR HUB BEARING

€ 11.50

10

601B6302Z
ref: 10

BEARING-BALL,#6302ZC3

€ 22.50

11

4200607480
ref: 11

PANEL ASSY,RR BRK BUF

€ 163.00

11

4200607480
ref: 11
KT250A-2

PANEL ASSY,RR BRK BUF

€ 163.00

12

42019010
ref: 12

SHOE,BRAKE (MCA)

€ 26.00

12

42019010
ref: 12
KT250A-2

SHOE,BRAKE (MCA)

€ 26.00

13

920811766
ref: 13

SPRING,BRAKE SHOE

€ 5.50

14

920811550
ref: 14

SPRING,BRAKE SHOE

€ 6.00

15

42026014
ref: 15

CAM SHAFT,REAR BRAKE

€ 9.50

15

42026025
ref: 15
KT250A-2

CAM SHAFT,REAR BRAKE

€ 13.50

16

41085012
ref: 16

INDICATOR,BRAKE SHOE

€ 3.50

17

92055004
ref: 17

RING-O,BRAKE CAM

€ 3.00

18

112G0630
ref: 18

BOLT-UPSET

€ 1.00

19

42029023
ref: 19

LEVER-REAR BRAKE CAM

€ 11.50

20

41072007
ref: 20

NUT,6MM

€ 2.50

21

92103006
ref: 21

NUT,CASTLE,14MM

€ 9.00

22

550D4035
ref: 22

PIN-COTTER,4.0X35

€ 1.00

23

42035002
ref: 23

SPACER,REAR AXLE

€ 3.00

24

92057095
ref: 24

CHAIN ASSY,DRIVE,120L

€ 44.00

25

920581015
ref: 25

JOINT-CHAIN,EK428SH

€ 3.50

all assemblies
