REAR HUB
KR250C2 KR1S 1990 EUROPE UK FR GR

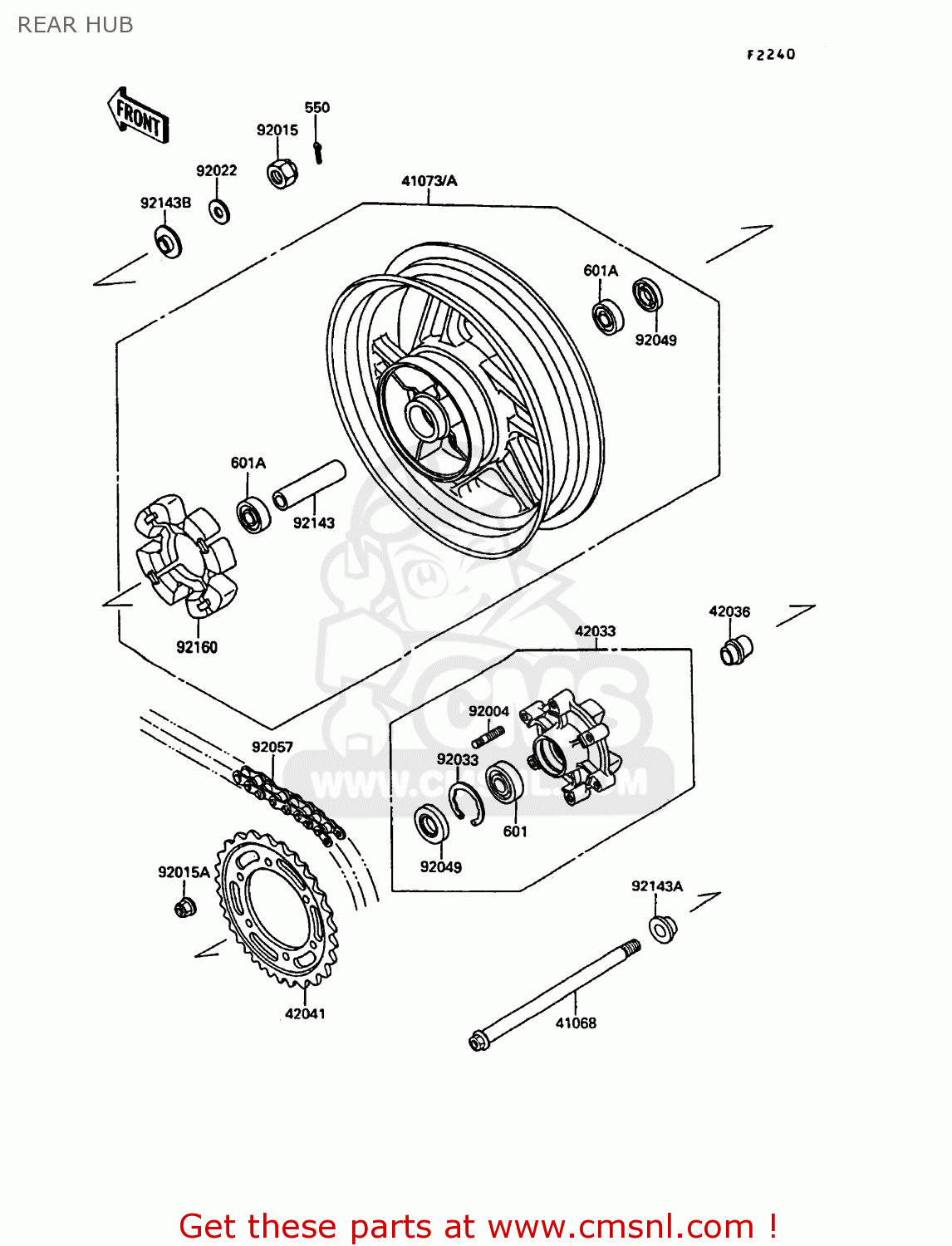

Rear hub diagram KR250C2 KR1S 1990 EUROPE UK FR GR
REAR HUB KR250C2 KR1S 1990 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
550
550D4030
ref: 550
PIN-COTTER,4.0X30
€ 1.50
601
601B6004UG
ref: 601
BEARING-BALL,#6004U
€ 27.50
601A
601B6203UU
ref: 601A
BEARING-BALL,#6203UUC
€ 25.00
41068
410681294
ref: 41068
AXLE,RR
€ 45.00
41073
410731479CJ
ref: 41073
WHEEL-ASSY,RR,L.GREEN
€ 641.50
42033
420331126
ref: 42033
COUPLING-ASSY,RR HUB
€ 182.00
42036
420361228
ref: 42036
SLEEVE,RR AXLE,L=32
€ 10.50
42041
420411303
ref: 42041
SPROCKET-HUB,41T
€ 30.50
92004
920041062
ref: 92004
STUD,10X18
€ 5.00
92015
42045014
ref: 92015
NUT CASTLE, 16M/M
€ 6.50
92015A
920151335
ref: 92015A
NUT,FLANGED,10MM
€ 1.50
92022
42046009
ref: 92022
WASHER-SLEEVE
€ 5.00
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491203
ref: 92049
SEAL-OIL,BJNC2 25425
€ 12.00
92057
920571286
ref: 92057
CHAIN,DRIVE,DID520V-2
€ 122.50
92143
921431186
ref: 92143
COLLAR,17.1X22X102
€ 15.00
92143A
921431188
ref: 92143A
COLLAR,RR AXLE,L=14
€ 13.00
92143B
921431378
ref: 92143B
COLLAR,RR AXLE,L=11.5
€ 13.50
92160
921601023
ref: 92160
DAMPER,SHOCK,RR HUB
€ 49.50
