FRONT MASTER CYLINDER
KR250C2 KR1S 1990 EUROPE UK FR GR

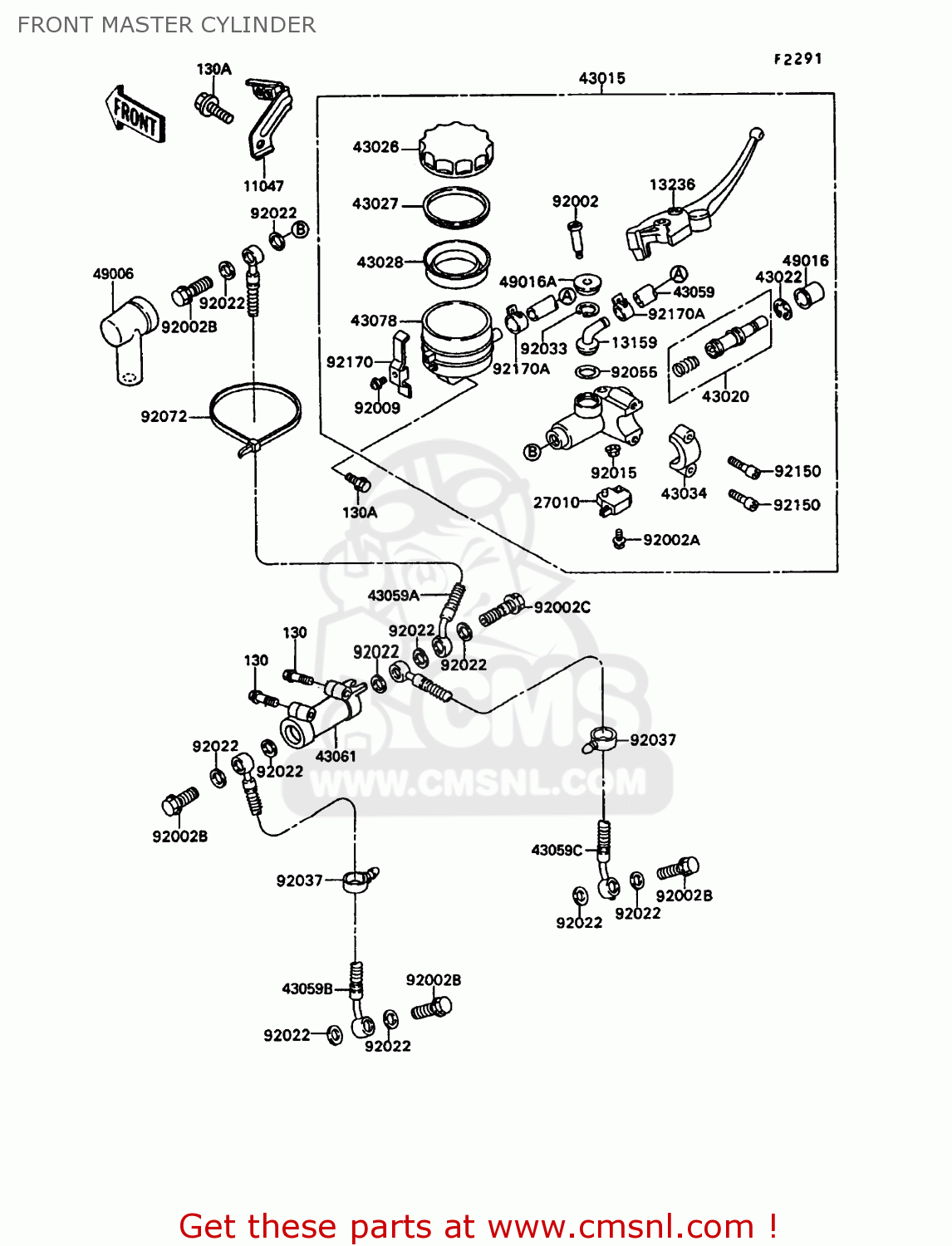

Front master cylinder diagram KR250C2 KR1S 1990 EUROPE UK FR GR
FRONT MASTER CYLINDER KR250C2 KR1S 1990 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
130
130G0630
ref: 130
BOLT, FLANGED, 6X30
€ 0.50
130A
130J0612
ref: 130A
BOLT-FLANGED,6X12,BLA
€ 1.50
11047
110471148
ref: 11047
BRACKET,FR MASTER RES
€ 5.50
13159
131591061
ref: 13159
CONNECTOR
€ 9.00
13236
132361185
ref: 13236
LEVER-COMP,FRONT BRAK
€ 51.00
27010
270101170
ref: 27010
SWITCH,BRAKE
€ 26.00
43015
430151406
ref: 43015
CYLINDER-ASSY-MASTER,
€ 267.50
43020
430201054
ref: 43020
PISTON-COMP-BRAKE,FR
€ 47.50
43022
430221010
ref: 43022
STOPPER-BRAKE,PISTON
€ 3.00
43026
430261071
ref: 43026
CAP-BRAKE
€ 25.00
43027
430271051
ref: 43027
PLATE-DIAPHRAGM
€ 4.00
43028
430281057
ref: 43028
DIAPHRAGM
€ 13.00
43034
430341016
ref: 43034
HOLDER-BRAKE,MASTER C
€ 13.50
43059
430591550
ref: 43059
HOSE-BRAKE
€ 3.50
43059A
430591619
ref: 43059A
HOSE-BRAKE,FR
€ 43.50
43059B
430591620
ref: 43059B
HOSE-BRAKE,FR
€ 65.50
43059C
430591621
ref: 43059C
HOSE-BRAKE,FR
€ 65.50
43061
430611002
ref: 43061
JOINT-BRAKE
€ 48.00
43078
430781099
ref: 43078
RESERVOIR
€ 23.50
49006
490061040
ref: 49006
BOOT,DUST
€ 7.50
49016
490161044
ref: 49016
COVER-SEAL,MASTER CYL
€ 7.00
49016A
490161147
ref: 49016A
COVER-SEAL
€ 5.00
92002
920021322
ref: 92002
BOLT,LEVER SET
€ 8.00
92002A
920021323
ref: 92002A
BOLT
€ 2.50
92002B
920021888
ref: 92002B
BOLT,OIL,L=23
€ 3.50
92002C
920021909
ref: 92002C
BOLT
€ 8.50
92009
920091570
ref: 92009
SCREW
€ 2.00
92015
920151233
ref: 92015
NUT,FLANGED,6MM
€ 3.50
92022
43067001
ref: 92022
WASHER,10.5X15X1.5
€ 1.50
92033
920331186
ref: 92033
RING-SNAP,20.5MM
€ 3.00
92037
920371827
ref: 92037
CLAMP,HOSE
€ 5.00
92055
920551251
ref: 92055
RING-O,MASTER CYLINDE
€ 2.50
92072
920721197
ref: 92072
BAND
€ 5.00
92150
921501328
ref: 92150
BOLT
€ 3.00
92170
921701090
ref: 92170
CLAMP
€ 10.00
92170A
921701091
ref: 92170A
CLAMP,HOSE
€ 3.00
