FENDER
KR250C2 KR1S 1990 EUROPE UK FR GR

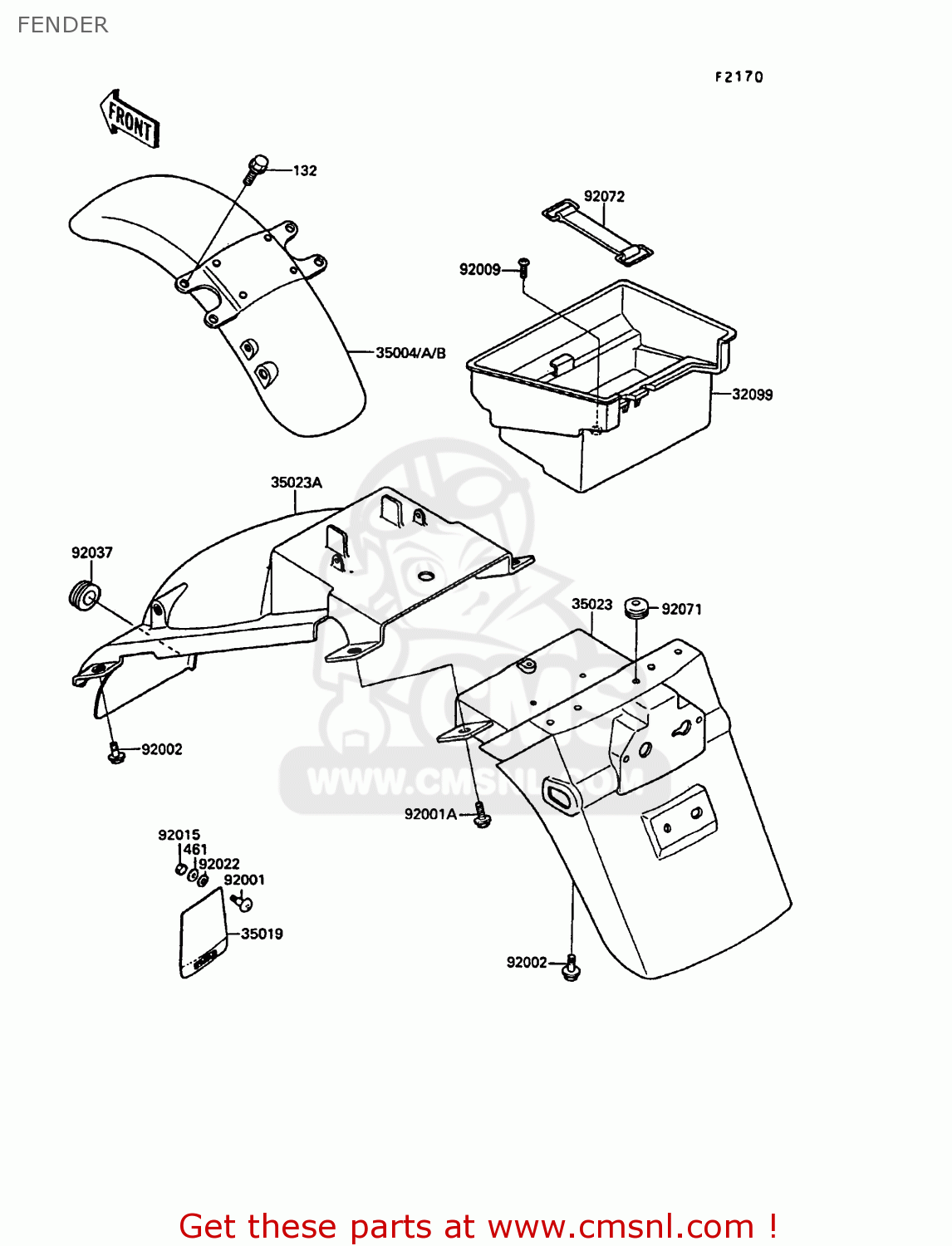

Fender diagram KR250C2 KR1S 1990 EUROPE UK FR GR
FENDER KR250C2 KR1S 1990 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
132
132E0816
ref: 132
BOLT-FLANGED-SMALL,8X
€ 3.00
461
461L0500
ref: 461
GR
WASHER-SPRING
€ 0.50
32099
320991114
ref: 32099
CASE,TOOL
€ 17.50
35004
350041252H8
ref: 35004
EUGRUK
FENDER-FRONT,EBONY
€ 119.00
35004B
3500412527F
ref: 35004B
FENDER-FRONT,L.GREEN
€ 113.00
35019
350191005
ref: 35019
GR
FLAP,FENDER,RR
€ 15.50
35023
350231237
ref: 35023
FENDER-REAR,RR
€ 91.50
35023A
350231251
ref: 35023A
FENDER-REAR,FR
€ 89.00
92001
92001134
ref: 92001
GR
BOLT,5X12
€ 3.00
92001A
920011774
ref: 92001A
BOLT,6X22
€ 2.00
92002
920021188
ref: 92002
BOLT,6X16
€ 3.00
92009
920091300
ref: 92009
SCREW,5X18
€ 2.00
92015
920151446
ref: 92015
GR
NUT,5MM
€ 1.50
92022
920221581
ref: 92022
GR
WASHER,5.5X20X1.2
€ 1.50
92037
43064006
ref: 92037
GROMMET,BRAKE HOSE
€ 2.50
92071
920711058
ref: 92071
GROMMET,SENSOR LEAD
€ 3.50
92072
92072066
ref: 92072
BAND,L=50
€ 11.00
