AIR FILTER

KR250C2 KR1S 1990 EUROPE UK FR GR

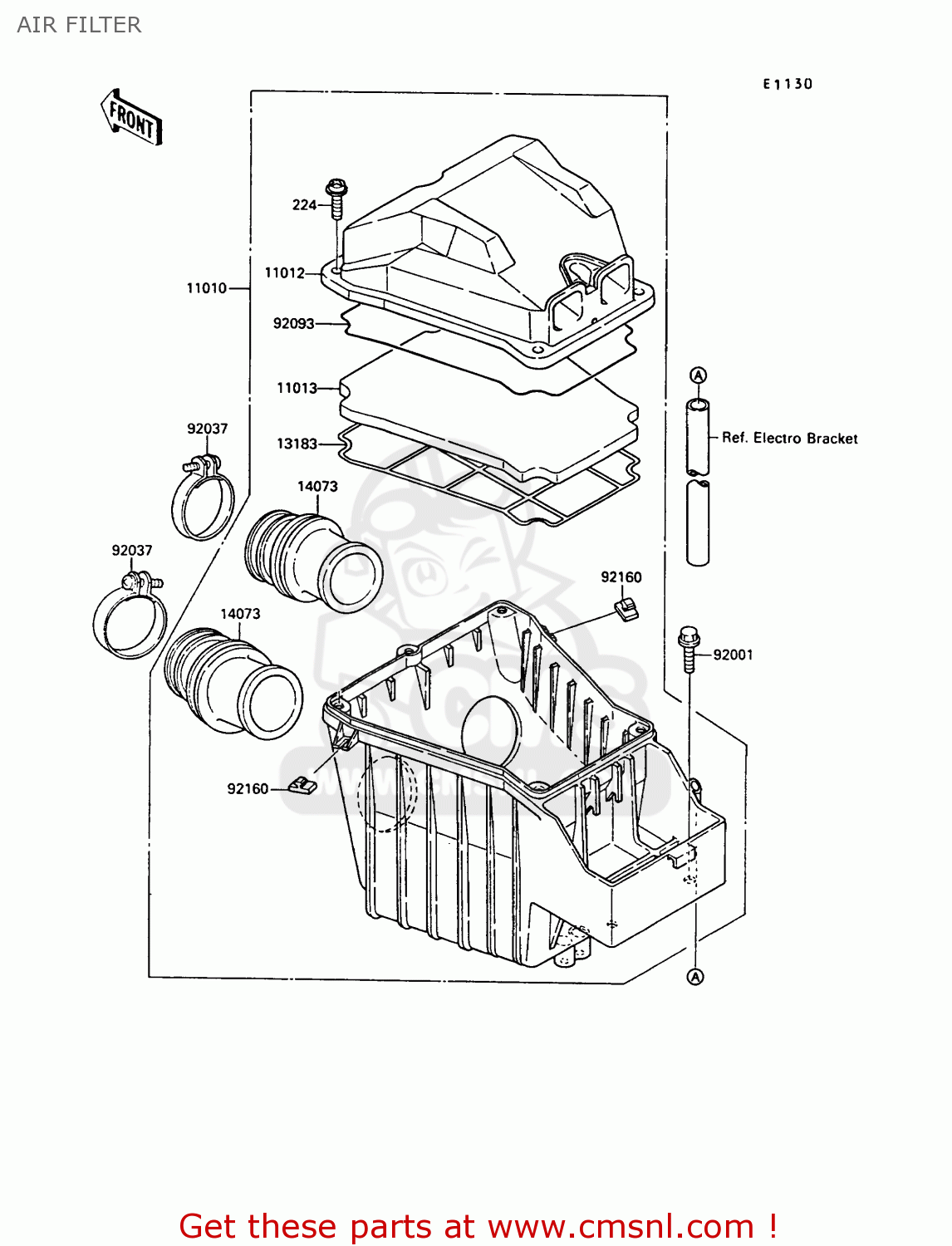

Air filter diagram KR250C2 KR1S 1990 EUROPE UK FR GR

AIR FILTER KR250C2 KR1S 1990 EUROPE UK FR GR

AIR FILTER KR250C2 KR1S 1990 EUROPE UK FR GR

prices are in EUR

ref

part #

description

quantity

224

224B0620
ref: 224

SCREW-PAN-WP-CROS

€ 0.50

11010

110101367
ref: 11010

FILTER-ASSY-AIR

€ 124.50

11012

110121617
ref: 11012

CAP,AIR FILTER

€ 17.50

11013

110131163
ref: 11013

ELEMENT-AIR FILTER

€ 4.50

13183

131831210
ref: 13183

PLATE

€ 8.50

14073

140731364
ref: 14073

DUCT,AIR FILTER

€ 9.00

92001

920011826
ref: 92001

BOLT,6X20

€ 2.50

92037

920371486
ref: 92037

CLAMP,55MM

€ 5.50

92093

920931251
ref: 92093

SEAL

€ 4.50

92160

921601088
ref: 92160

DAMPER

€ 2.50
