ELECTRICAL EQUIPMENT
KR250C2 KR1S 1990 EUROPE UK FR GR

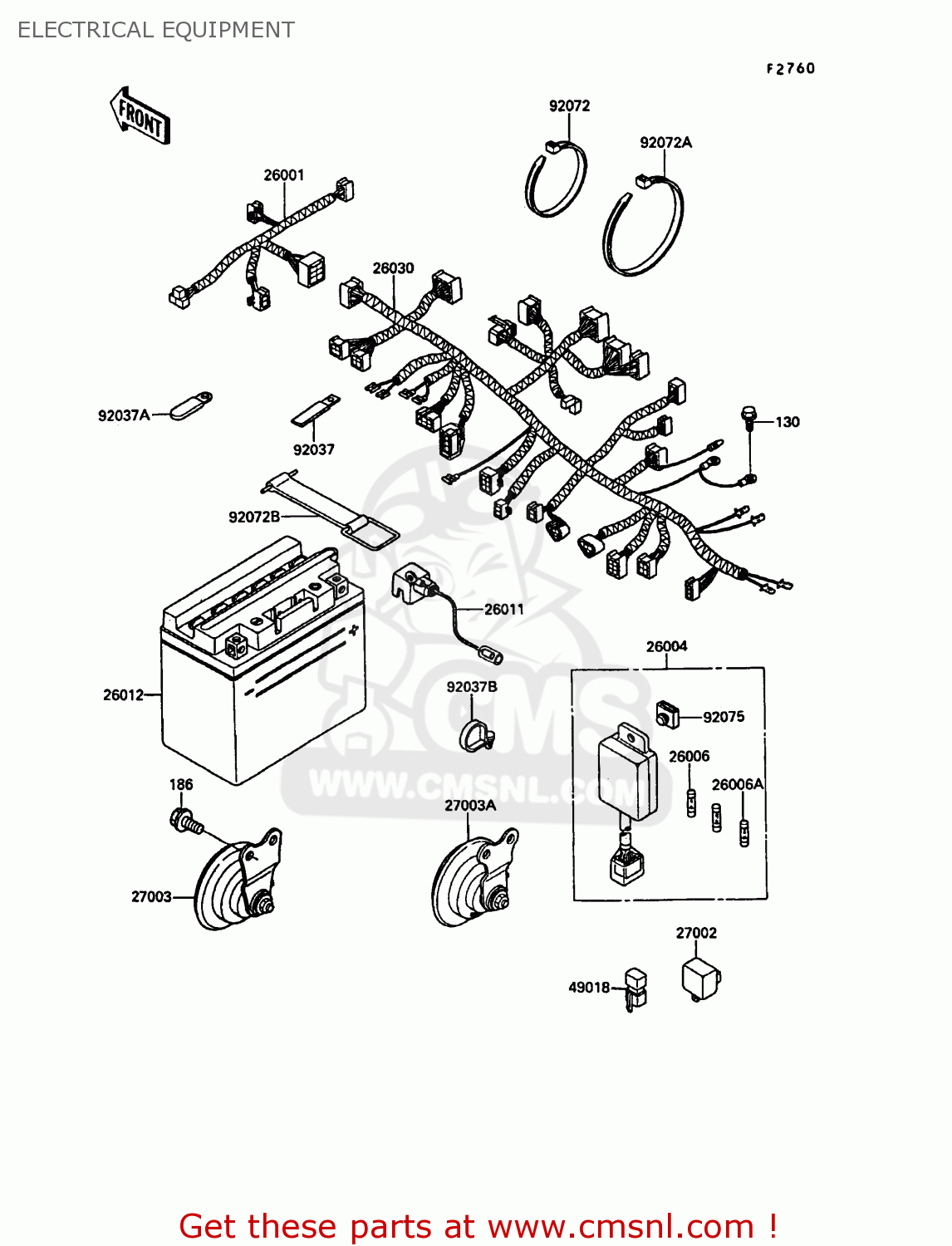

Electrical equipment diagram KR250C2 KR1S 1990 EUROPE UK FR GR
ELECTRICAL EQUIPMENT KR250C2 KR1S 1990 EUROPE UK FR GR
×
prices are in EUR
ref
part #
description
quantity
130
130B0612
ref: 130
BOLT-FLANGED,6X12
€ 0.50
186
186B0610
ref: 186
BOLT,UPSET
€ 0.50
26001
260011907
ref: 26001
HARNESS,FR
€ 20.00
26004
260041078
ref: 26004
FUSE-ASSY
€ 39.50
26006
26006003
ref: 26006
FUSE 10A
€ 3.00
26006A
26006005
ref: 26006A
FUSE 20A
€ 3.50
26011
260111421
ref: 26011
WIRE-LEAD,BATTERY(+)
€ 9.00
26012
260121201
ref: 26012
BATTERY,12V 4AH,FB4L-
€ 39.00
26030
260301053
ref: 26030
HARNESS,MAIN
€ 210.00
27002
270021053
ref: 27002
RELAY-ASSY,TURN SIGNA
€ 33.50
27003
270031317
ref: 27003
GRUK
HORN
€ 33.50
27003A
270031329
ref: 27003A
EUFR
HORN
€ 45.00
49018
490181052
ref: 49018
DIODE
€ 35.50
92037
920371069
ref: 92037
CLAMP,L=60
€ 1.50
92037A
920371539
ref: 92037A
CLAMP,L=45
€ 3.00
92037B
920371903
ref: 92037B
CLAMP
€ 5.00
92072
920721195
ref: 92072
BAND,L=185
€ 1.00
92072A
920721197
ref: 92072A
BAND
€ 5.00
92072B
920721232
ref: 92072B
BAND,BATTERY
€ 12.50
92075
92075279
ref: 92075
DAMPER,FUSE
€ 3.50
