SEAT/CHAIN COVER
KM100-A2 1977 USA CANADA / MPH KPH

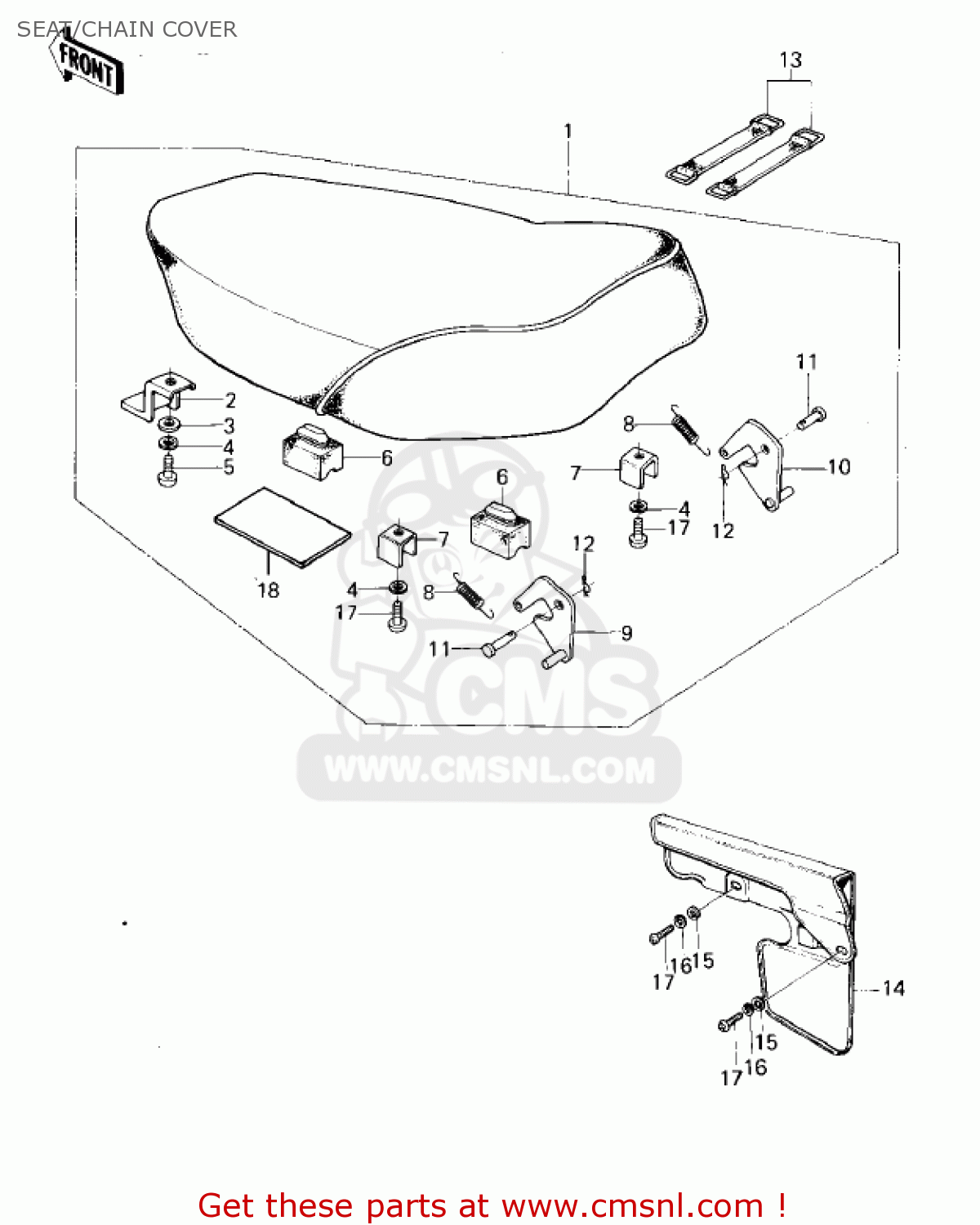

Seat/chain cover diagram KM100-A2 1977 USA CANADA / MPH KPH
SEAT/CHAIN COVER KM100-A2 1977 USA CANADA / MPH KPH
×
prices are in EUR
ref
part #
description
quantity
1
530011018
ref: 1
KM100-A1/A2/A3/A3A
SEAT ASSY
€ 207.00
1
530011018
ref: 1
KM100-A4
SEAT ASSY
€ 207.00
1
530011460
ref: 1
KM100-A6~
SEAT ASSEMBLY
€ 117.00
2
53032004
ref: 2
BRACKET,SEAT
€ 4.00
3
92022125
ref: 3
WASHER,6.5X20X1.6
€ 1.00
4
461F0600
ref: 4
WASHER-SPRING,6MM
€ 0.50
5
220B0614
ref: 5
SCREW-PAN HEAD,6X14
€ 2.00
6
92075099
ref: 6
DAMPER RUBBER
€ 3.50
7
53012012
ref: 7
SPRING,SEAT HOOK
€ 2.00
8
53012013
ref: 8
SPRING,HOOK
€ 10.50
9
53008031
ref: 9
HOOK,SEAT,LH
€ 6.00
10
53008032
ref: 10
HOOK,SEAT,RH
€ 6.00
11
53011001
ref: 11
PIN,6X12
€ 2.50
12
92041003
ref: 12
COTTER
€ 0.50
13
92072066
ref: 13
BAND,L=50
€ 11.00
14
360141024
ref: 14
KM100-A1/A2/A3/A3A/A
CASE-CHAIN
€ 24.50
14
360141024
ref: 14
KM100-A6~
CASE-CHAIN
€ 24.50
15
411B0600
ref: 15
KM100-A1/A2/A3/A3A/A
WASHER-PLAIN,6MM
€ 0.50
16
461F0600
ref: 16
WASHER-SPRING,6MM
€ 0.50
17
220B0612
ref: 17
SCREW-PAN HEAD,6X12
€ 1.00
18
92075224
ref: 18
KM100-A4~
DAMPER,RUBBER
€ 4.50
