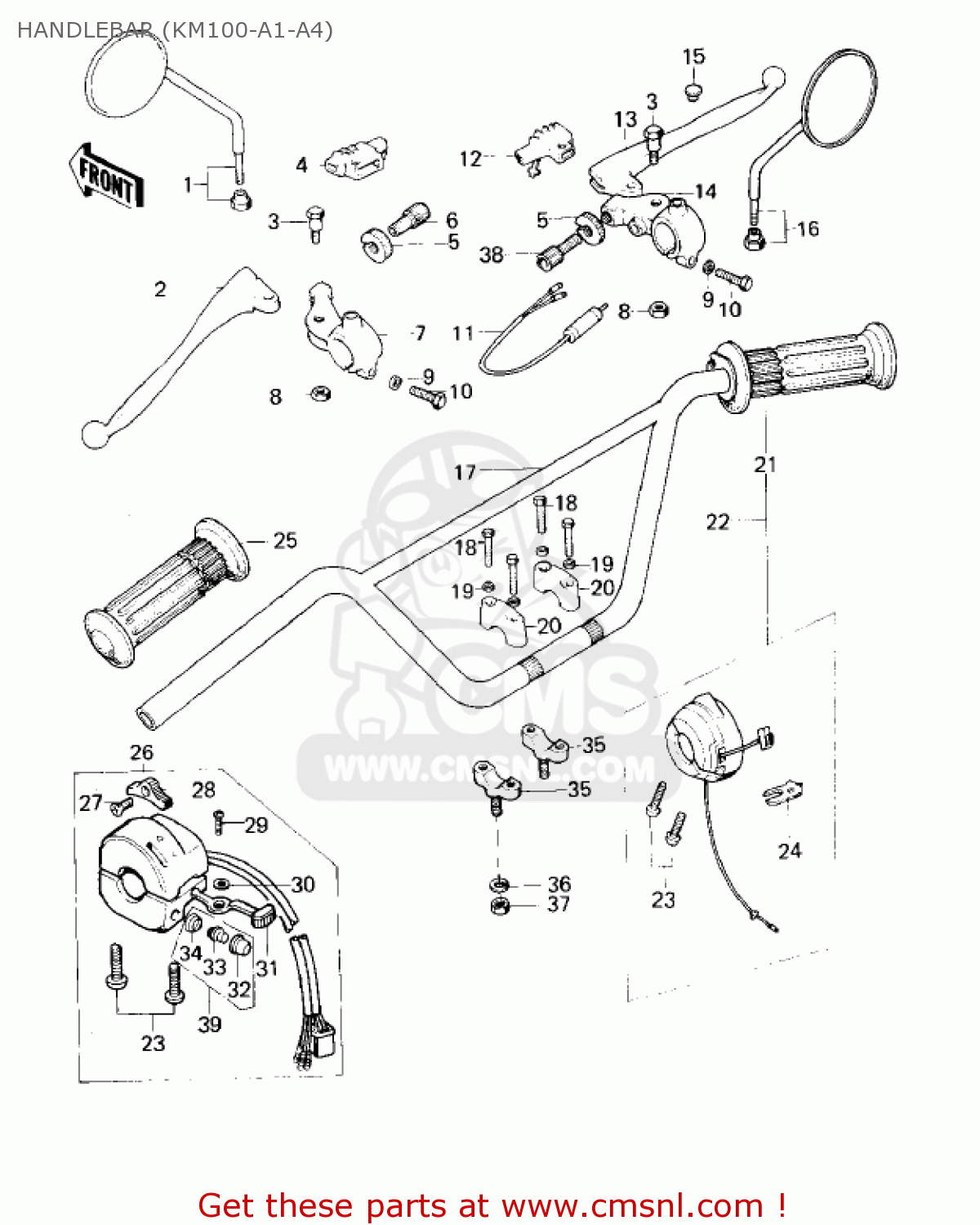

HANDLEBAR (KM100-A1-A4)

ref

part #

description

quantity

1

56003009
ref: 1

MIRROR-ASSY,LH

€ 50.00

2

46092015
ref: 2

LEVER-GRIP,CLUTCH

€ 11.50

3

92007046
ref: 3

BOLT,HEX HEAD,5X22

€ 4.50

4

490061017
ref: 4

BOOTS,LEVER HOLDER

€ 13.00

5

46056005
ref: 5

NUT-LOCK

€ 6.00

6

46055003
ref: 6

SCREW-CABLE ADJUST

€ 11.50

7

4609401121
ref: 7
BLACK

HOLDER-CLUTCH LEV,BLK

€ 23.00

8

92019014
ref: 8

NUT-LOCK,5M/M

€ 2.50

9

410B0600
ref: 9

WASHER-PLAIN-SMALL,6M

€ 0.50

10

110N0625
ref: 10

BOLT-HEX HEAD,6X25

€ 3.50

11

27021004
ref: 11

SWITCH,FR BRAKE LAMP

€ 23.00

12

490061017
ref: 12

BOOTS,LEVER HOLDER

€ 13.00

13

46058004
ref: 13

LEVER-GRIP,FRONT BRAK

€ 24.00

14

4606000921
ref: 14
BLACK

HOLDER,BRAKE LEVER,FR

€ 27.00

15

92102009
ref: 15
NOT REQUIRED FOR 560

CAP-RR VIEW MIRROR

€ 3.00

16

56002020
ref: 16
OPTION

MIRROR-ASSY,RH

€ 47.50

17

46004024
ref: 17

HANDLEBAR

€ 43.50

18

920011405
ref: 18

BOLT,8X38

€ 10.00

19

461F0800
ref: 19

WASHER-SPRING,8MM

€ 0.50

20

46012004
ref: 20

HOLDER-UPPER HANDLBAR

€ 14.00

21

46019039
ref: 21

GRIP-ASSY,THROTTLE

€ 30.00

22

46018047
ref: 22

CASE ASSY,R.H

€ 74.50

23

220B0525
ref: 23

SCREW-PAN-CROS,5X25

€ 2.50

24

46037024
ref: 24

HOLDER,CONTROL CABLE

€ 6.00

25

46075029
ref: 25

RUBBER,L.H GRIP

€ 9.50

26

46091040
ref: 26

HOUSING-ASSY-CONTROL,

€ 93.50

27

221B0308A
ref: 27

SCREW-CNTSNK HD,3X8

€ 2.50

28

46044011
ref: 28

KNOB-L.H SWITCH

€ 6.00

29

220B0305A
ref: 29

SCREW-PAN HEAD,3X5

€ 1.00

30

92095010
ref: 30

WASHER

€ 2.50

31

46044010
ref: 31

KNOB-SWITCH

€ 6.00

32

270101009
ref: 32

SWITCH ASSY,HORN BUTN

€ 5.50

33

270101009
ref: 33

SWITCH ASSY,HORN BUTN

€ 5.50

34

270101009
ref: 34

SWITCH ASSY,HORN BUTN

€ 5.50

35

4601200280
ref: 35

HOLDER-HANDLE

€ 15.50

36

461F1000
ref: 36

WASHER-SPRING,10MM

€ 0.50

37

314B1000
ref: 37

NUT,10MM

€ 0.50

38

46055010
ref: 38

SCREW,CABLE ADJUST

€ 21.00

39

270101009
ref: 39

SWITCH ASSY,HORN BUTN

€ 5.50
