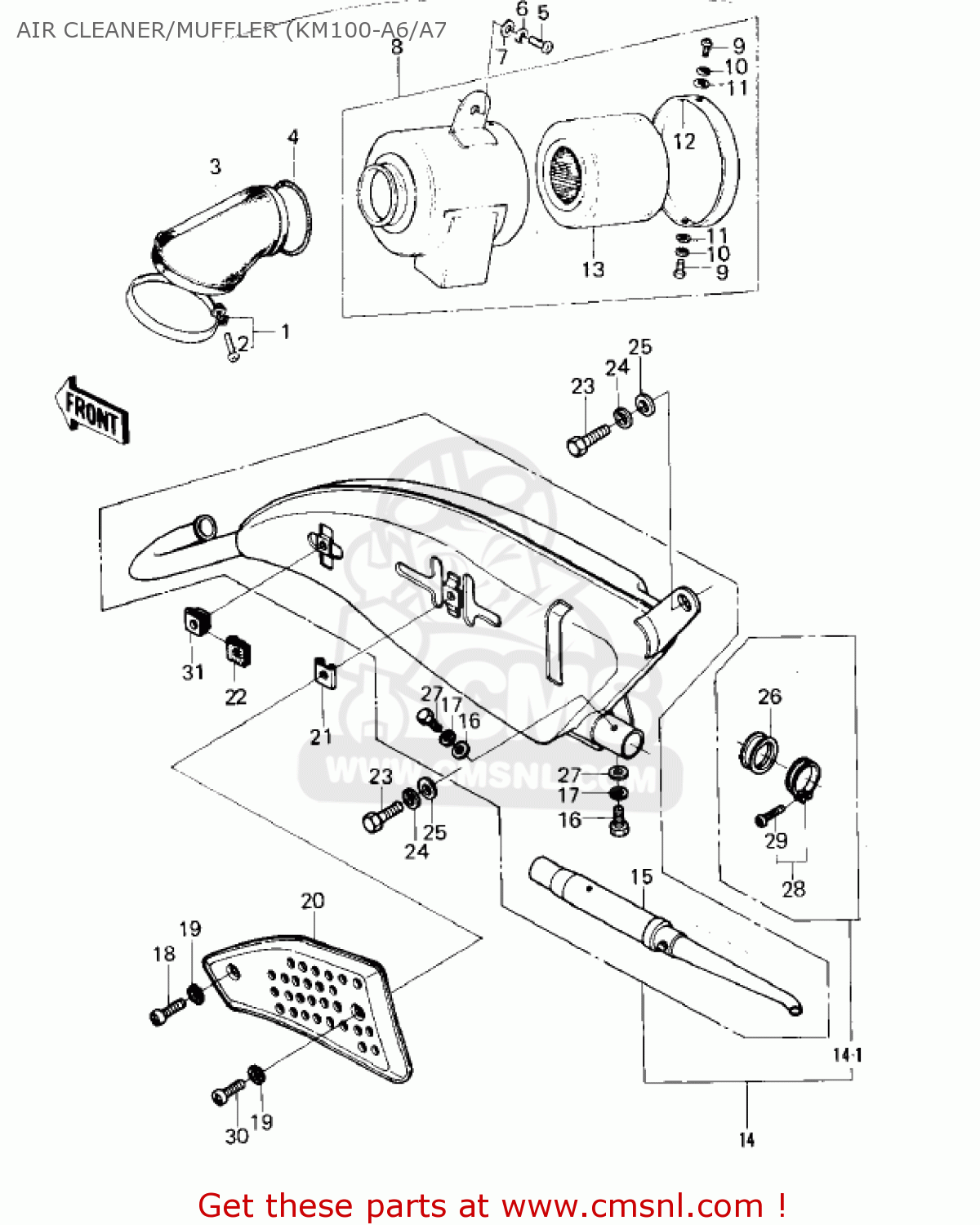

AIR CLEANER/MUFFLER (KM100-A6/A7

ref

part #

description

quantity

1

92037068
ref: 1

CLAMP

€ 7.50

2

220B0635
ref: 2

SCREW-PAN HEAD,6X35

€ 1.00

3

140731007
ref: 3

AIR CLEANER DUCT

€ 12.00

4

92081047
ref: 4

SPRING,COIL

€ 7.50

5

220B0612
ref: 5

SCREW-PAN HEAD,6X12

€ 1.00

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

410B0600
ref: 7

WASHER-PLAIN-SMALL,6M

€ 0.50

8

11010101610
ref: 8

AIR CLEANER ASSEMBLY,BLACK

€ 90.00

9

220B0510
ref: 9

SCREW-PAN-CROS,5X10

€ 0.50

10

461F0500
ref: 10

WASHER-SPRING,5MM

€ 0.50

11

410B0500
ref: 11

WASHER-PLAIN-SMALL,5M

€ 0.50

12

110121028
ref: 12

AIR CLEANER CAP

€ 10.00

13

110131009
ref: 13

AIR CLEANER ELEMENT

€ 19.50

14

180015033
ref: 14
WHN EXH USE 18001 50

MUFFLER ASSY

€ 107.50

14-1

180015033
ref: 14-1

MUFFLER ASSY

€ 107.50

15

490991027
ref: 15

BAFFLE-PIPE MUFFLER

€ 122.00

16

112G0610
ref: 16

BOLT,6X10

€ 0.50

17

410B0600
ref: 17

WASHER-PLAIN-SMALL,6M

€ 0.50

18

220B0614
ref: 18

SCREW-PAN HEAD,6X14

€ 2.00

19

463H0600
ref: 19

WASHER-LOCK,6MM

€ 0.50

20

140251184
ref: 20

COVER,MUFFLER

€ 17.00

21

18065010
ref: 21

INSULATOR,HEAT

€ 2.50

22

18065009
ref: 22

INSULATOR,HEAT

€ 3.00

23

115G0816
ref: 23

BOLT-HEX,HEAD 8X16

€ 0.50

24

461F0800
ref: 24

WASHER-SPRING,8MM

€ 0.50

25

411B0800
ref: 25

WASHER-PLAIN,8MM

€ 0.50

26

92022183
ref: 26

WASHER,6.2X11X1.5

€ 2.50

27

920931042
ref: 27
WHN EXH USE 92093-10

SEAL,BAFFLETUBE

€ 13.50

27

920931042
ref: 27

SEAL,BAFFLETUBE

€ 13.50

28

92037178
ref: 28

CLAMP

€ 7.00

29

220B0525
ref: 29

SCREW-PAN-CROS,5X25

€ 2.50

30

220B0610
ref: 30

SCREW-PAN HEAD,6X10

€ 2.00

31

920151094
ref: 31

NUT,MUFFLER

€ 5.50
