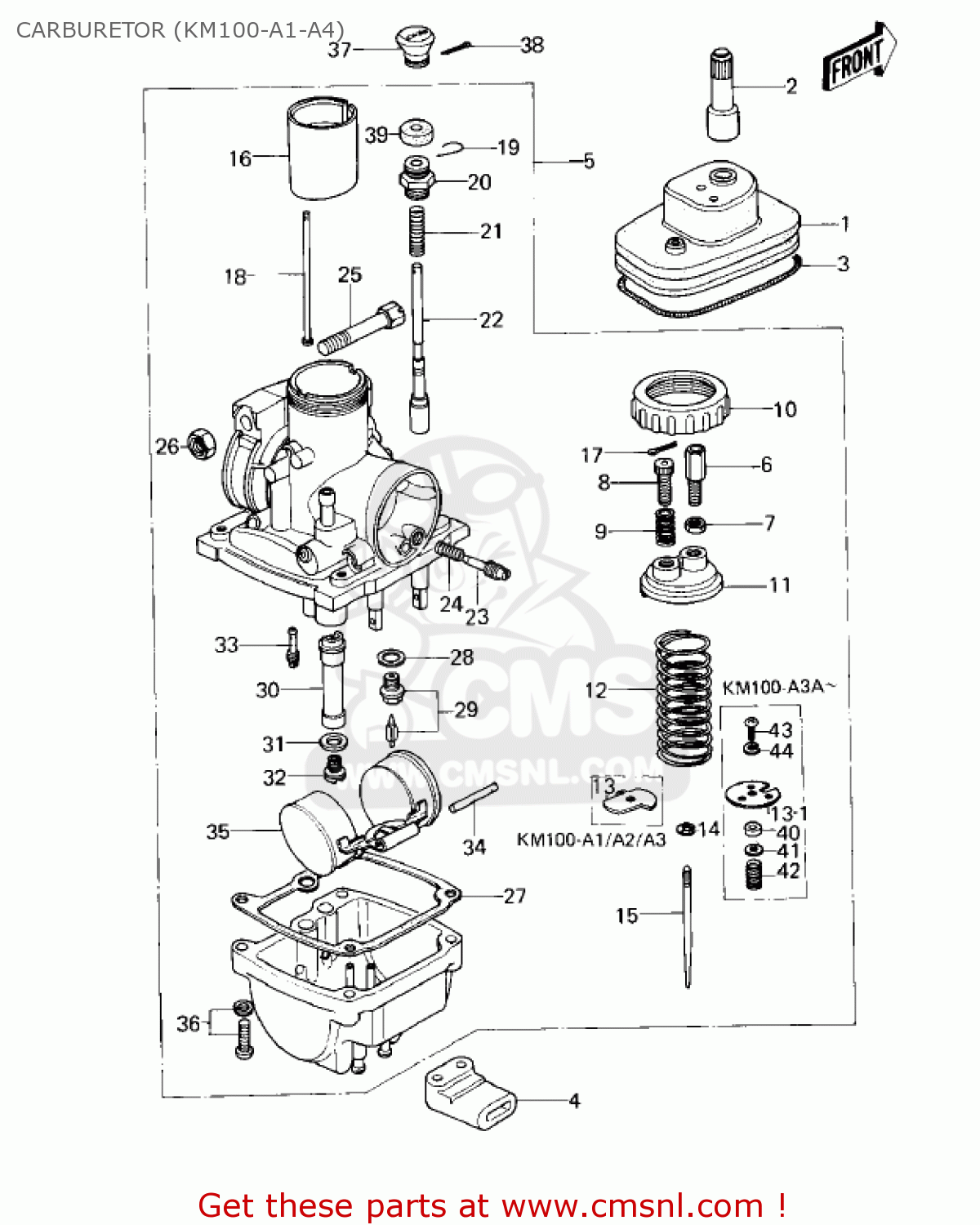

CARBURETOR (KM100-A1-A4)

ref

part #

description

quantity

1

14038035
ref: 1

BOOT,CARBURETOR

€ 9.50

2

16147001
ref: 2

PLUG,12X40

€ 3.00

3

92081047
ref: 3

SPRING,COIL

€ 7.50

4

16136007
ref: 4

GROMMET,OVERFLOW PIPE

€ 5.50

5

16001264
ref: 5
KM100-A1/A2/A3

CARBURETOR ASSY

€ 153.00

5

160011043
ref: 5
KM100-A3A~

CARBURETOR ASSEMBLY

€ 121.50

6

16002017
ref: 6

ADJUSTER-CABLE

€ 8.00

7

16003004
ref: 7

NUT-CABLE ADJUST LOCK

€ 4.50

8

16021002
ref: 8

SCREW-THROTTLE STOP

€ 12.00

9

16022005
ref: 9

SPRING-THR STOP SCREW

€ 5.50

10

16004010
ref: 10

CAP-CHAMBER,MIXING

€ 13.50

11

16005005
ref: 11

TOP-CHAMBER,MIXING

€ 12.50

12

16006013
ref: 12

SPRING-THROTTLE VALVE

€ 10.00

13

16007020
ref: 13
KM100-A1/A2/A3

SEAT-SPRING,THROTTLE

€ 7.00

?

131691105
ref: ?
Includes items 13 -

THROTTLE VALVE SPRING SEAT

€ 3.00

14

16008010
ref: 14

CLAMP,E-TYPE

€ 5.00

15

16009059
ref: 15
KM100-A1/A2/A3

NEEDLE-JET,4EJ7

€ 26.50

15

160091012
ref: 15
KM100-A3A~

JET,NEEDLE,4EJ12

€ 9.50

16

16025057
ref: 16
KM100-A1/A2/A3

VALVE-THROTTLE,CA2.0

€ 80.50

16

160251013
ref: 16
KM100-A3A~

THROTTLE VALVE,CA2.0

€ 69.50

17

550D1210
ref: 17

PIN-COTTER,1.2X10

€ 1.50

18

16024012
ref: 18

ROD,THROTTLE VALVE ST

€ 5.50

19

920371077
ref: 19
KM100-A1/A2/A3

CLAMP

€ 3.00

19

92037?1077
ref: 19
KM100-A3A~

92037?1077

20

16012021
ref: 20

CAP-STARTER PLUNGER

€ 11.50

21

16013010
ref: 21

SPRING,STARTER PLUNGR

€ 3.50

22

16016012
ref: 22

PLUNGER,STARTER

€ 28.00

23

16014002
ref: 23

SCREW-PILOT AIR

€ 11.00

24

16022007
ref: 24

SPRING-THR STOP SCREW

€ 5.50

25

16010004
ref: 25

SCREW-CLAMP

€ 3.50

26

311B0600
ref: 26
KM100-A1/A2/A3

NUT,6MM

€ 0.50

26

920151026
ref: 26
KM100-A3A~

NUT, 6M/M

€ 4.00

27

16019021
ref: 27

GASKET,FLOAT CHAMBER (NAS)

€ 13.00

28

16029002
ref: 28

WASHER-VALVE SEAT

€ 2.50

29

16030001
ref: 29

VALVE-FLOAT,#2.0

€ 40.50

30

16017068
ref: 30
KM100-A1/A2/A3

JET-NEEDLE,O-2

€ 37.50

30

160171016
ref: 30
KM100-A3A~

JET,NEEDLE,#0-0

€ 18.00

31

16034001
ref: 31

WASHER-MAIN JET

€ 2.50

32

920631032
ref: 32
STD

JET-MAIN,#A77.5R

€ 10.00

32

92063108
ref: 32
OFF ROAD USE ONLY

JET-MAIN,#72.5R

€ 9.00

32

92063109
ref: 32
OFF ROAD USE ONLY

JET-MAIN,#75R

€ 10.50

32

920631030
ref: 32
OFF ROAD USE ONLY

JET-MAIN,#A80R

€ 11.00

32

92063124
ref: 32
OFF ROAD USE ONLY

MAIN JET,#82.5R

€ 10.50

32

920631030
ref: 32
STD

JET-MAIN,#A80R

€ 11.00

32

92063109
ref: 32
OFF ROAD USE ONLY

JET-MAIN,#75R

€ 10.50

32

920631032
ref: 32
OFF ROAD USE ONLY

JET-MAIN,#A77.5R

€ 10.00

32

92063124
ref: 32
OFF ROAD USE ONLY

MAIN JET,#82.5R

€ 10.50

32

92063093
ref: 32
OFF ROAD USE ONLY

MAIN JET,#85R

€ 10.50

33

92064020
ref: 33
KM100-A1/A2/A3

JET-PILOT,#17.5

€ 13.50

33

920641018
ref: 33
KM100-A3A~

JET-PILOT,#A15

€ 13.00

34

16032003
ref: 34

FLOAT PIN

€ 4.00

35

16031015
ref: 35

FLOAT

€ 40.50

36

16033012
ref: 36

SCREW-FLOAT CHAMBER

€ 1.00

37

92077022
ref: 37

KNOB,CARBURETOR

€ 7.00

38

550D1615
ref: 38

PIN-COTTER,1.6X15

€ 1.50

39

16036012
ref: 39

BOOT,STARTER PLUNGER

€ 4.50

40

920271103
ref: 40
KM100-A3A~

RING,JET NEEDLE

€ 4.50

41

920221024
ref: 41
KM100-A3A~

WASHER,THROTTLE VALVE

€ 4.50

42

920811072
ref: 42
KM100-A3A~

NEEDLE JET SPRING

€ 2.50

43

220B0308
ref: 43
KM100-A3A~

SCREW-PAN-CROS

€ 0.50

44

461F0300
ref: 44
KM100-A3A~

WASHER-SPRING,3MM

€ 0.50
