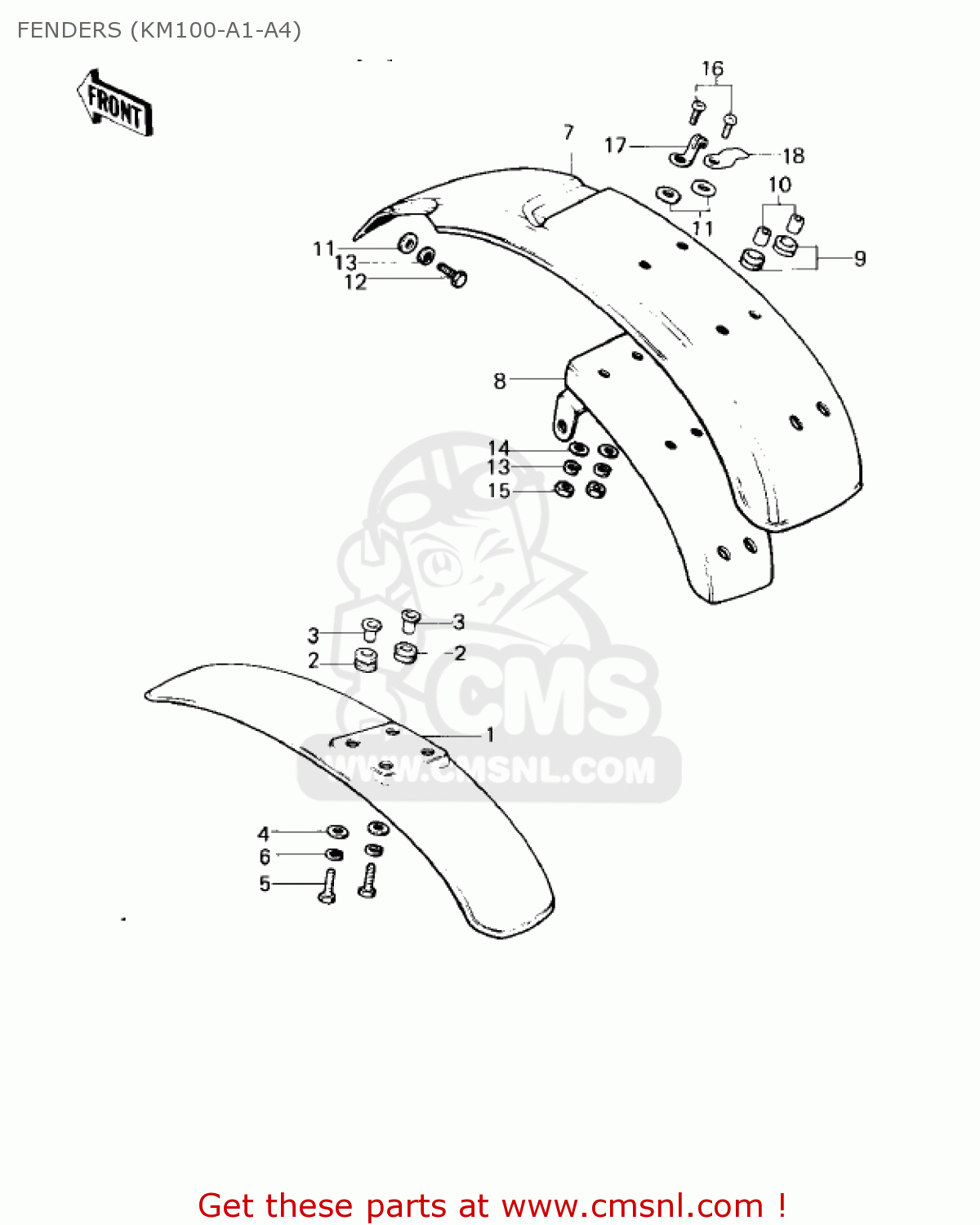

FENDERS (KM100-A1-A4)

ref

part #

description

quantity

1

3500408010
ref: 1
KM100-A1

FENDER,FRONT,BLACK

€ 28.00

1

350041096Y
ref: 1
KM100-A2

FENDER, FRONT, GRAY

€ 31.00

1

350041096V
ref: 1
KM100-A3/A3A

FENDER,FRONT,WHITE

€ 24.50

1

350041096R
ref: 1
KM100-A4

FENDER,FRONT,S.YELLOW

€ 39.50

2

92075103
ref: 2

DAMPER

€ 2.50

3

92027153
ref: 3

COLLAR

€ 4.00

4

92022125
ref: 4

WASHER,6.5X20X1.6

€ 1.00

5

112G0618
ref: 5

BOLT-UPSET

€ 0.50

6

461F0600
ref: 6

WASHER-SPRING,6MM

€ 0.50

7

3502209410
ref: 7
KM100-A1

FENDER,REAR,BLACK

€ 18.00

7

350221626Z
ref: 7
KM100-A1

FENDER, REAR, BLACK

€ 18.00

7

350221626Y
ref: 7
KM100-A2

FENDER, REAR, GRAY

€ 26.00

7

350221626V
ref: 7
KM100-A3/A3A

FENDER,REAR,WHITE

€ 47.00

7

350221626R
ref: 7
KM100-A4

FENDER,REAR,S.YELLOW

€ 32.50

8

35034019
ref: 8

GUSSET,REAR FENDER

€ 25.00

9

92075209
ref: 9

DAMPER RUBBER

€ 3.00

10

92027169
ref: 10

COLLAR,6.8X10X16

€ 4.00

11

92022125
ref: 11

WASHER,6.5X20X1.6

€ 1.00

12

112B0614
ref: 12

BOLT-UPSET 6X14

€ 2.50

13

461F0600
ref: 13

WASHER-SPRING,6MM

€ 0.50

14

411B0600
ref: 14

WASHER-PLAIN,6MM

€ 0.50

15

311B0600
ref: 15

NUT,6MM

€ 0.50

16

220B0616
ref: 16

SCREW-PAN HEAD,6X16

€ 2.50

17

35024002
ref: 17

CLAMP,WIRING HARNESS

€ 2.00

18

92037020
ref: 18

CLAMP-CABLE

€ 1.50
