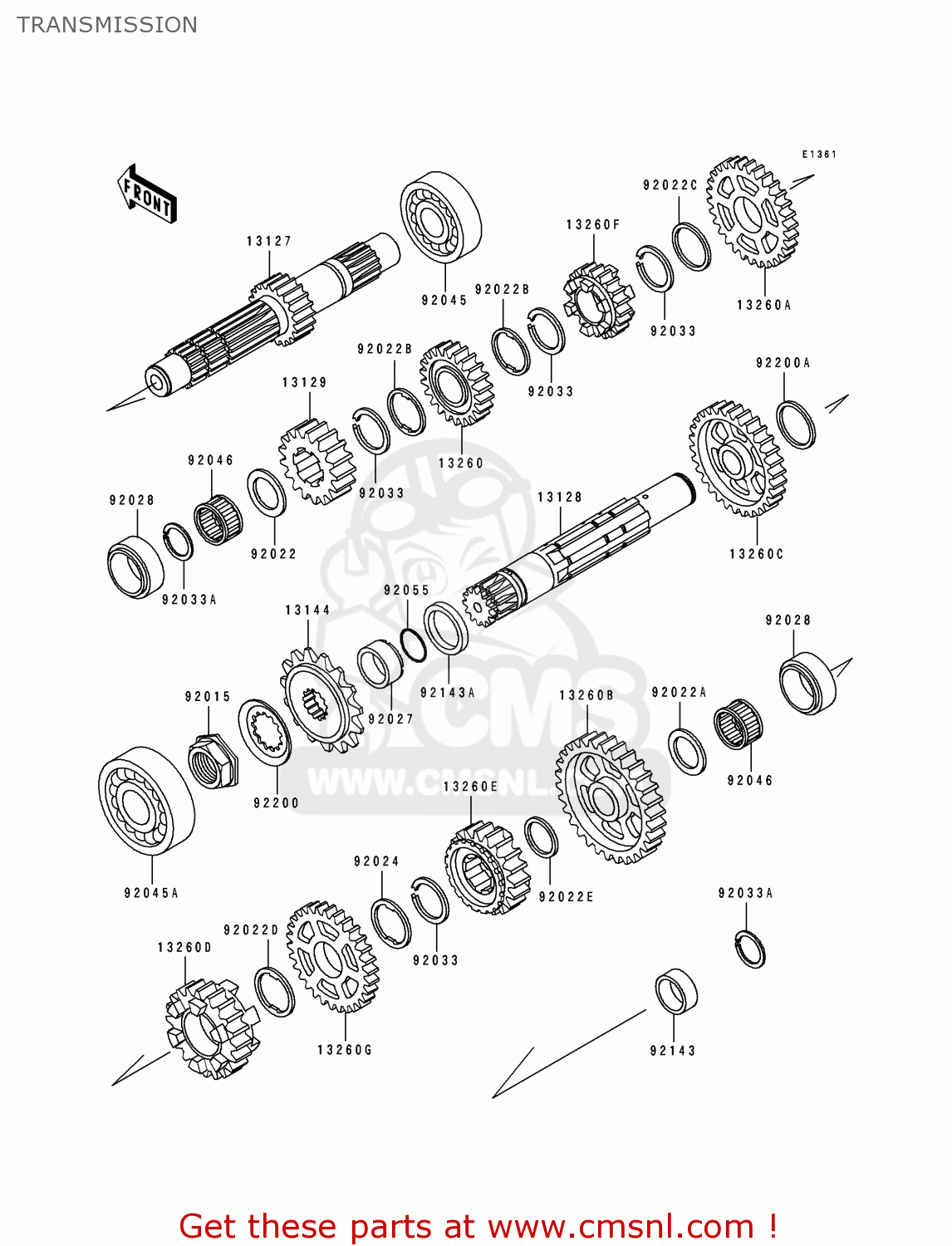

TRANSMISSION

ref

part #

description

quantity

13127

131271147
ref: 13127

SHAFT-TRANSMISSION IN

€ 180.00

13128

131281195
ref: 13128

SHAFT-TRANSMISSION OU

€ 192.00

13129

131291518
ref: 13129

GEAR,INPUT 2ND,17T

€ 55.50

13144

131441221
ref: 13144

SPROCKET-OUTPUT,15T

€ 34.50

13260

132601325
ref: 13260

GEAR,INPUT 4TH,22T

€ 68.50

13260A

132601326
ref: 13260A

GEAR,INPUT TOP,24T

€ 114.00

13260B

132601327
ref: 13260B

GEAR,OUTPUT LOW,34T

€ 118.00

13260C

132601328
ref: 13260C

GEAR,OUTPUT 2ND,26T

€ 102.50

13260D

132601330
ref: 13260D

GEAR,OUTPUT 4TH,21T

€ 75.50

13260E

132601331
ref: 13260E

GEAR,OUTPUT TOP,19T

€ 110.50

13260F

132601383
ref: 13260F

GEAR,INPUT 3RD,22T

€ 39.00

13260G

132601384
ref: 13260G

GEAR,OUTPUT 3RD,26T

€ 96.50

92015

920151254
ref: 92015

NUT,20MM

€ 10.50

92022

92022112
ref: 92022

WASHER,20.5X30X1,STEE

€ 6.00

92022A

920221479
ref: 92022A

WASHER,20.3X29X0.5

€ 3.00

92022B

920221482
ref: 92022B

WASHER,TOOTHED,25.3X2

€ 2.50

92022C

92022159
ref: 92022C

WASHER-THRUST,25MM

€ 5.50

92022D

92022225
ref: 92022D

WASHER-THRUST

€ 3.50

92022E

92022252
ref: 92022E

WASHER

€ 4.00

92024

92024038
ref: 92024

WASHER-LOCK

€ 4.00

92027

920271800
ref: 92027

COLLAR

€ 19.50

92028

920281698
ref: 92028

BUSHING

€ 26.50

92033

92033026
ref: 92033

CIRCLIP

€ 6.00

92033A

92033029
ref: 92033A

CIRCLIP,18MM

€ 6.50

92045

920451105
ref: 92045

BEARING-BALL,TMB205

€ 25.00

92045A

920451295
ref: 92045A

BEARING-BALL,83C356CD

€ 130.50

92046

920461170
ref: 92046

BEARING-NEEDLE,KT2026

€ 9.00

92055

920551293
ref: 92055

RING-O, 21.5MM

€ 3.00

92143

921431624
ref: 92143

COLLAR,20X25X9.5

€ 7.00

92143A

921431644
ref: 92143A

COLLAR

€ 10.00

92200

922001065
ref: 92200

WASHER

€ 4.50

92200A

922001170
ref: 92200A

WASHER,2ND GEAR

€ 2.50
