IGNITION SYSTEM

KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

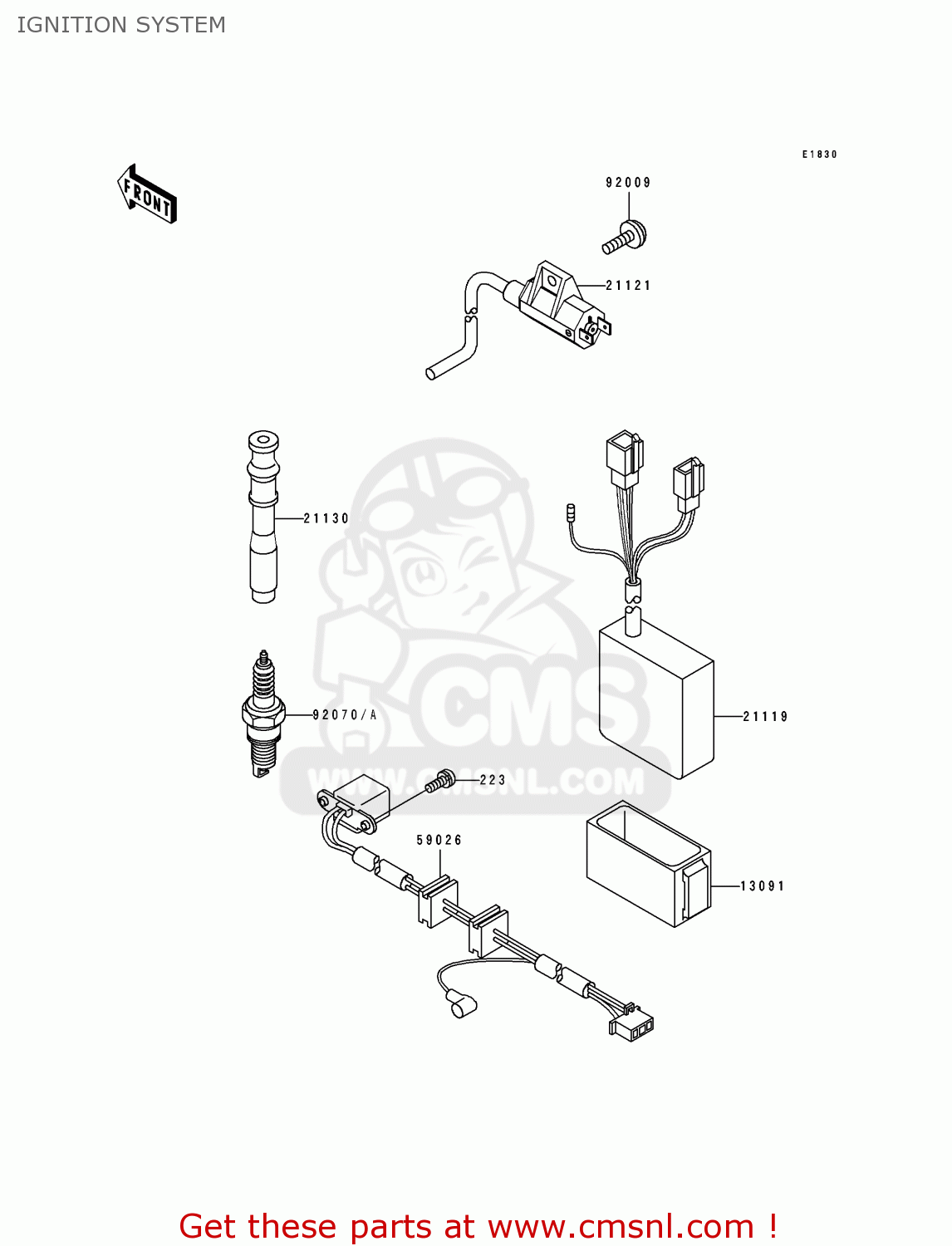

Ignition system diagram KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

prices are in EUR

ref

part #

description

quantity

223

223B0514
ref: 223

SCREW-PAN-WS-CROS

€ 1.50

13091

130911271
ref: 13091

HOLDER,IGNITER

€ 12.50

21119

211191368
ref: 21119

IGNITER

€ 492.00

21121

211211152
ref: 21121

COIL-IGNITION

€ 150.00

21130

211301065
ref: 21130

CAP-SPARK PLUG

€ 30.50

59026

590261119
ref: 59026

COIL-PULSING

€ 87.50

92009

920091111
ref: 92009

SCREW,6X18

€ 3.00

92070

920701065
ref: 92070

DPR8EA-9 (NGK SPARKPL

€ 4.00

92070A

ref: 92070A
