BRAKE PEDAL

KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

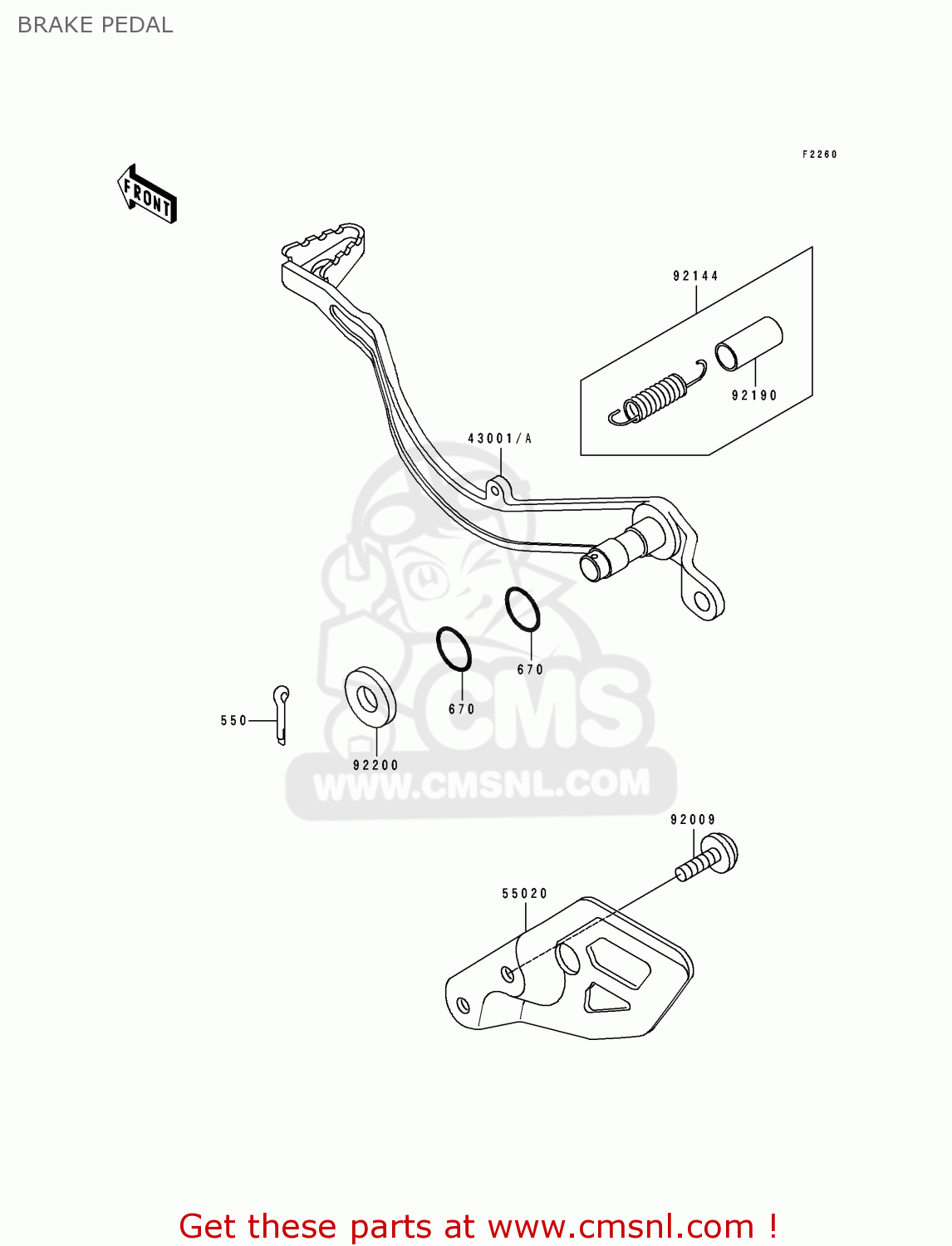

Brake pedal diagram KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

prices are in EUR

ref

part #

description

quantity

550

550D2525
ref: 550

PIN-COTTER,2.5X25

€ 1.00

670

670B2014
ref: 670

O RING,14MM

€ 1.00

43001

430011322
ref: 43001
AREUFRGRITNLSPST

LEVER-BRAKE,PEDAL

€ 38.50

43001A

430011323
ref: 43001A
FG

LEVER-BRAKE,PEDAL

€ 30.50

55020

550201445
ref: 55020

GUARD,RR MASTER CYLIN

€ 13.50

92009

920091286
ref: 92009

SCREW,6X10

€ 2.50

92144

921441752
ref: 92144

SPRING,BRAKE PEDAL RE

€ 4.50

92190

921901488
ref: 92190

TUBE,13X16X25

€ 2.00

92200

922001171
ref: 92200

WASHER,14.5X24X1.6

€ 2.50
