METER(S)

KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

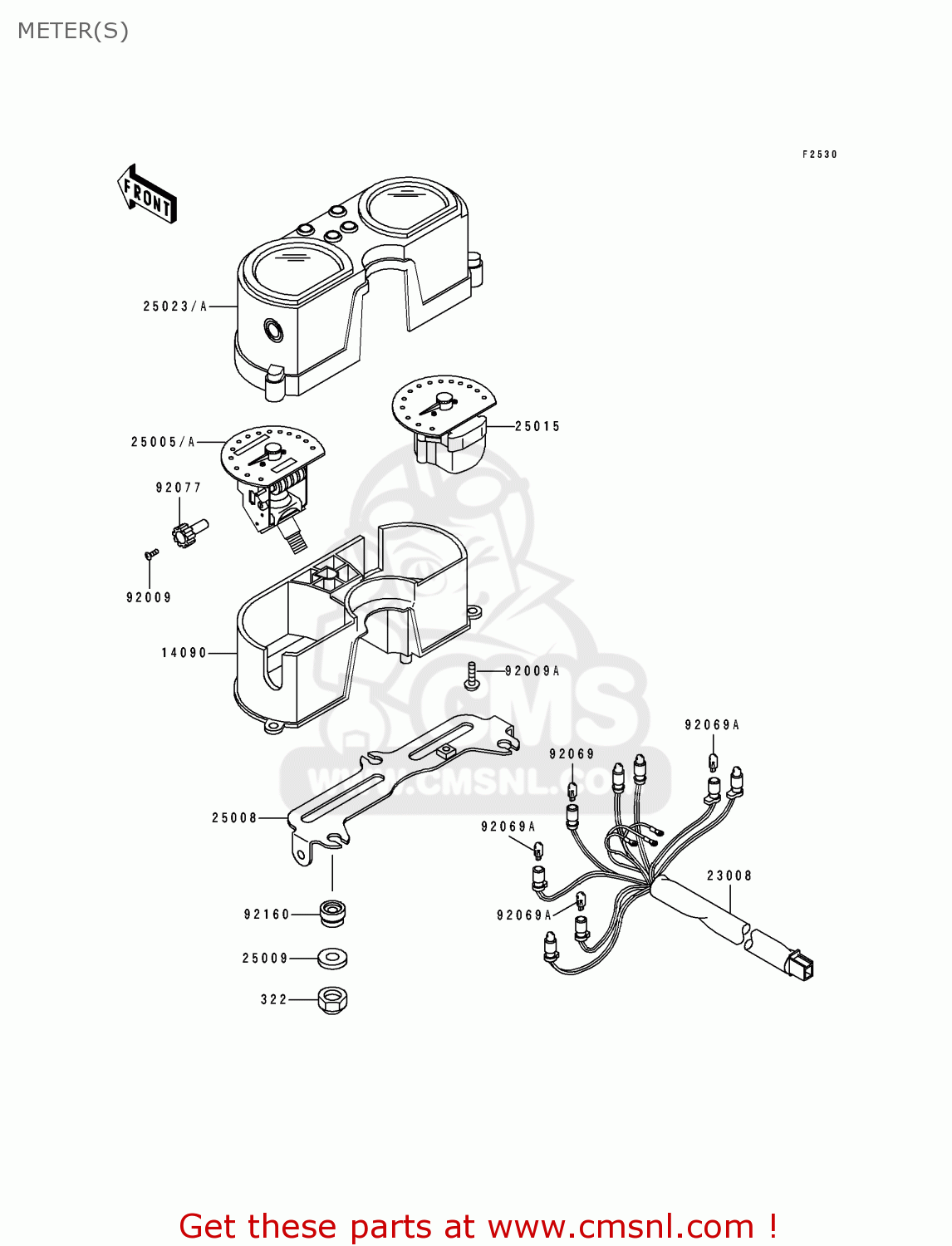

Meter(s) diagram KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

prices are in EUR

ref

part #

description

quantity

322

322C0500
ref: 322

NUT-CAP

€ 2.00

14090

140901303
ref: 14090

COVER,METER HOUSING

€ 105.50

23008

230081506
ref: 23008

SOCKET-ASSY,METER

€ 94.00

25005

250051534
ref: 25005

SPEEDOMETER,KPH

€ 184.00

25008

250081194
ref: 25008

BRACKET-METER

€ 41.50

25009

25009004
ref: 25009

WASHER,5.2X16X1.2T

€ 2.50

25015

250151320
ref: 25015

TACHOMETER,X1000R/MIN

€ 211.00

25023

250231202
ref: 25023
AREUFGGRITNLSPST

COVER-METER CASE,UPP

€ 66.00

25023A

250231203
ref: 25023A
FR

COVER-METER CASE,UPP

€ 72.50

92009

920091172
ref: 92009

SCREW,2X6,BLACK

€ 2.00

92009A

920091503
ref: 92009A

SCREW,TAPPING,4X14

€ 2.50

92069

920691068
ref: 92069

BULB,14V 3W

€ 2.50

92069A

920691070
ref: 92069A

BULB,12V 1.7W

€ 3.00

92077

920771059
ref: 92077

KNOB,METER

€ 4.00

92160

921601460
ref: 92160

DAMPER

€ 3.00

METER(S)

all assemblies
