STAND(S)

KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

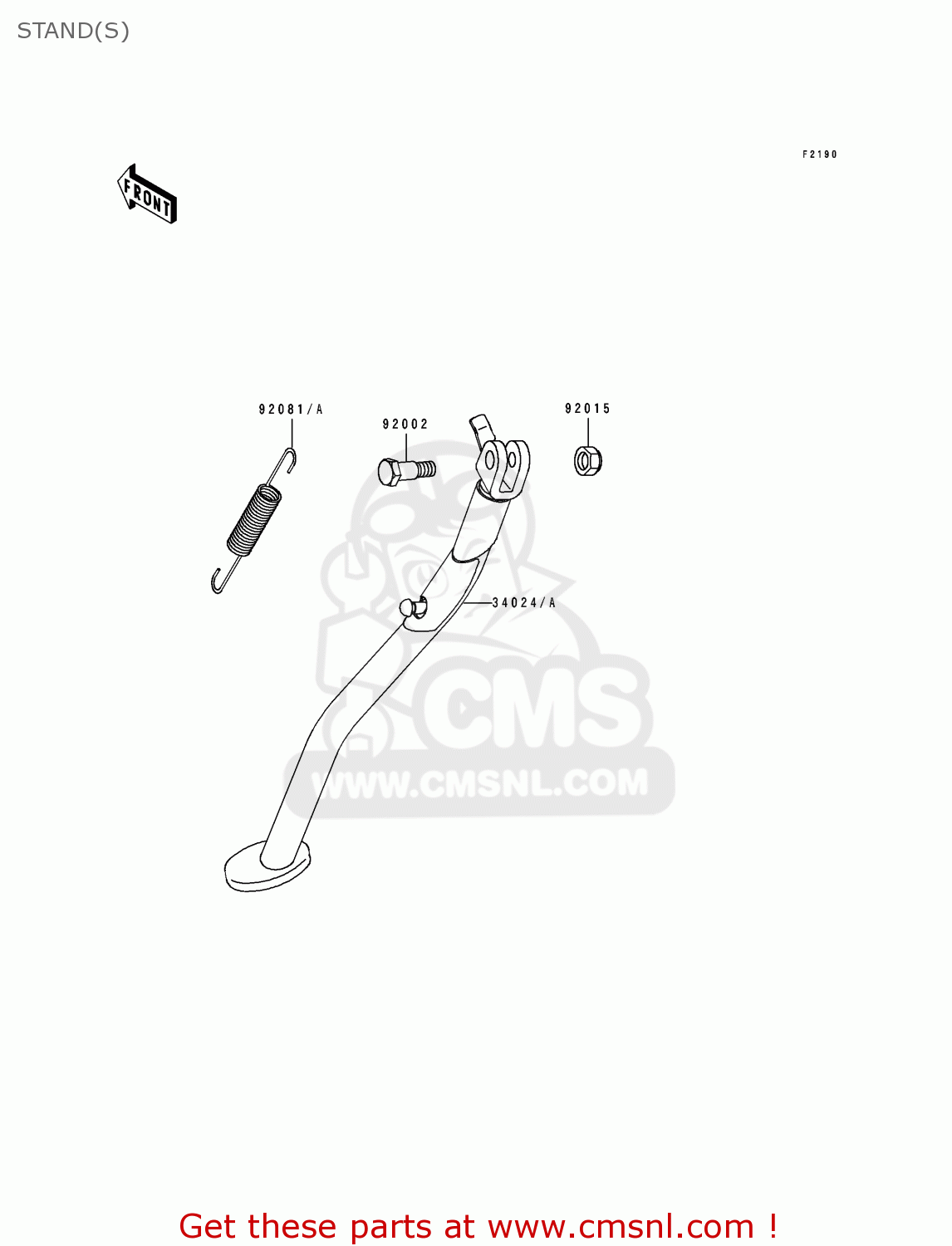

Stand(s) diagram KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

STAND(S) KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

STAND(S) KLX650C3 1995 EUROPE FR NL AR FG GR IT SP ST

prices are in EUR

ref

part #

description

quantity

34024A

340241312CE
ref: 34024A
AREUFGFRITNLSPST

STAND-SIDE,SILVER NO.

€ 49.50

92002

920021813
ref: 92002

BOLT,SIDE STAND

€ 6.50

92015

920151188
ref: 92015

NUT,LOCK,10MM,BLACK

€ 4.00

92081

920811419
ref: 92081
AREUFRGRITNLSPST

SPRING

€ 8.00

92081A

920811695
ref: 92081A
FG

SPRING,SIDE STAND

€ 11.50
