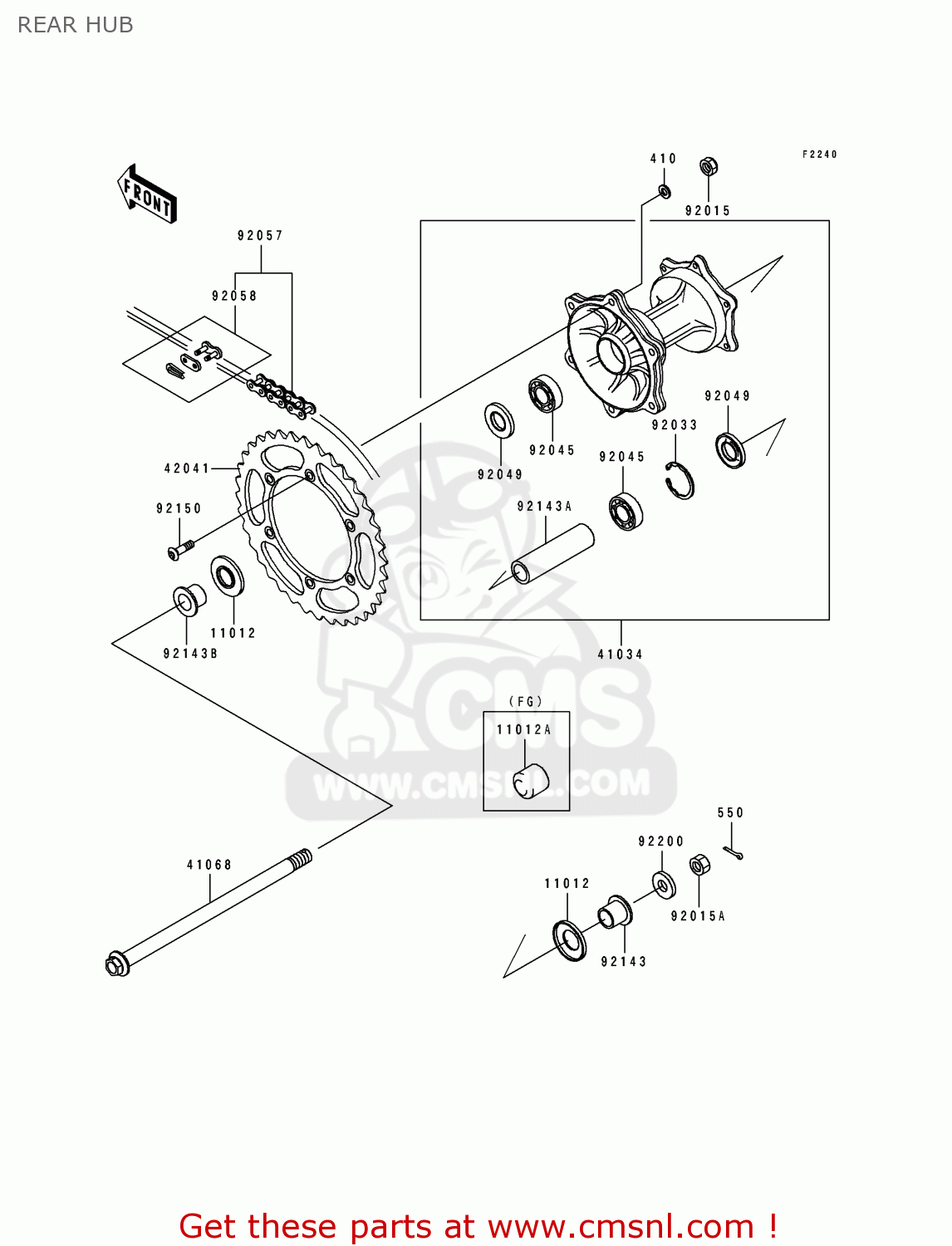

REAR HUB

ref

part #

description

quantity

410

410B0800
ref: 410

WASHER-PLAIN-SMALL,8M

€ 0.50

550

550D3025
ref: 550

PIN-COTTER,3.0X25

€ 0.50

11012

110121581
ref: 11012

CAP,AXLE

€ 4.00

11012A

110121590
ref: 11012A
FG

CAP,AXLE NUT

€ 3.50

41034

410341216
ref: 41034

DRUM-ASSY,REAR BRAKE

€ 424.50

41068

410681349
ref: 41068

AXLE,RR

€ 48.00

42041

420411421
ref: 42041

SPROCKET-HUB,42T

€ 38.50

92015

920151432
ref: 92015

NUT,8MM

€ 4.50

92015A

920151770
ref: 92015A

NUT,LOCK,20MM

€ 19.00

92033

920331041
ref: 92033

CIRCLIP,42MM

€ 4.00

92045

920451239
ref: 92045

BEARING-BALL,6004X8JR

€ 30.00

92049

920491203
ref: 92049

SEAL-OIL,BJNC2 25425

€ 12.00

92057

920571367
ref: 92057

CHAIN,DRIVE,EK520LV-O

€ 135.00

92058

920581070
ref: 92058

JOINT-CHAIN

€ 6.50

92143

921431259
ref: 92143

COLLAR,RR AXLE,L=22

€ 26.00

92143A

921431402
ref: 92143A

COLLAR,RR BRAKE DRUM,

€ 10.50

92143B

921431635
ref: 92143B

COLLAR,RR AXLE,L=27

€ 22.00

92150

921501196
ref: 92150

BOLT,SOCKET,8X28

€ 5.50

92200

922001146
ref: 92200

WASHER,20.2X36X2

€ 3.00
