FRONT FORK

KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

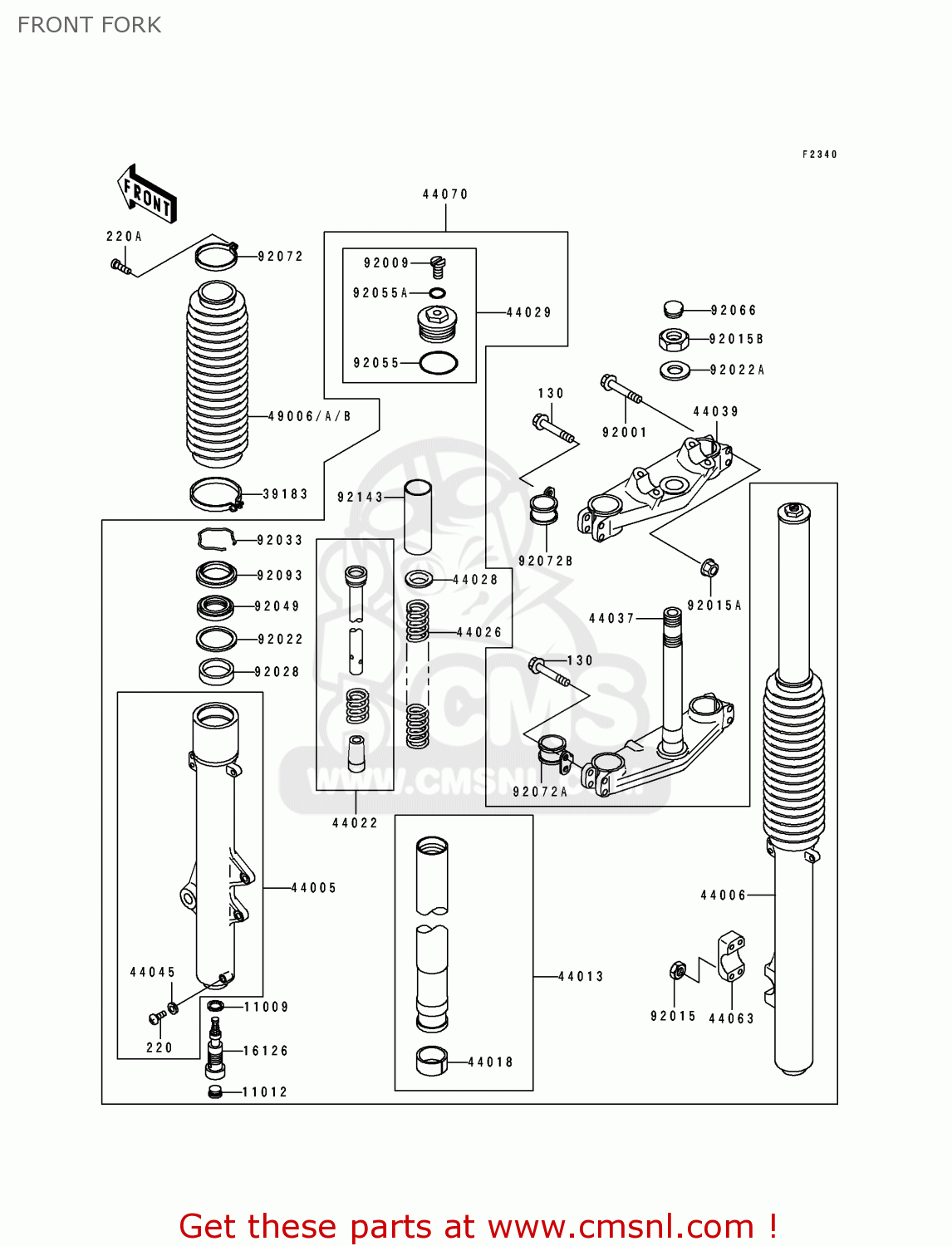

Front fork diagram KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

FRONT FORK KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST
FRONT FORK KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST
FRONT FORK KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST
prices are in EUR
ref
part #
description
quantity
11009
110091324
ref: 11009
GASKET,FORK CYLINDER (NAS)
110091324
€ 3.50
11012
110121381
ref: 11012
CAP,FORK CYLINDER
110121381
€ 3.50
16126
161261134
ref: 16126
VALVE,FORK CYLINDER
€ 121.50
39183
391831051
ref: 39183
BAND-ASSY,BOOT
391831051
€ 7.00
44005
440051325
ref: 44005
PIPE-LEFT FORK OUTER
€ 264.50
44006
440061323
ref: 44006
PIPE-RIGHT FORK OUTER
€ 291.00
44013
440131300
ref: 44013
PIPE-FORK INNER
440131300
€ 320.50
44018
440181056
ref: 44018
PISTON-FORK,INNER PIP
440181056
€ 19.00
44022
440221290
ref: 44022
CYLINDER-FORK
€ 124.50
44026
440261539
ref: 44026
SPRING-FRONT FORK,K=0
440261539
€ 33.50
44028
440281010
ref: 44028
GUIDE-FORK SPRING
440281010
€ 7.00
44029
440291137
ref: 44029
SEAT-FORK SPRING
€ 39.00
44037
440371317
ref: 44037
HOLDER-FORK UNDER
€ 234.00
44039
440391244
ref: 44039
HOLDER-FORK UPPER
€ 198.50
44045
44045002
ref: 44045
GASKET,FORK DRAIN PLU (NAS)
44045002
€ 3.00
44063
440631056
ref: 44063
HOLDER-FRONT AXLE
440631056
€ 41.50
44070
440705054
ref: 44070
DAMPER-ASSY,FORK
€ 842.50
49006A
490061184VW
ref: 49006A
ARFGGRNLNRST
BOOT,FORK,VIOLET
€ 48.50
49006B
490061184VY
ref: 49006B
BOOT,FORK,VIOLET
490061184VY
€ 54.50
92001
920011639
ref: 92001
BOLT
920011639
€ 4.50
92009
920091568
ref: 92009
SCREW
920091568
€ 4.50
92015
920151078
ref: 92015
NUT,6M/M
920151078
€ 1.50
92015A
920151485
ref: 92015A
NUT,FLANGED,8MM
920151485
€ 3.50
92015B
920151653
ref: 92015B
NUT,STEERING STEM,22M
920151653
€ 11.50
92022
920221299
ref: 92022
WASHER
920221299
€ 5.50
92022A
920221873
ref: 92022A
WASHER
920221873
€ 5.00
92028
920281581
ref: 92028
BUSHING
920281581
€ 15.00
92033
920331077
ref: 92033
RING-SNAP
920331077
€ 3.00
92049
920491295
ref: 92049
SEAL-OIL,FORK OUTER T
920491295
€ 13.50
92055
920551123
ref: 92055
RING-O
920551123
€ 4.00
130
130G0840
ref: 130
BOLT-FLANGED,8X40
130G0840
€ 1.00
220
220B0406
ref: 220
SCREW-PAN-CROS,4X6
220B0406
€ 2.50
220A
220C0416
ref: 220A
SCREW-PAN-CROS
220C0416
€ 1.00
92055A
920551441
ref: 92055A
RING-O
€ 2.50
92066
920661306
ref: 92066
PLUG
920661306
€ 3.50
92072
920721078
ref: 92072
BAND,BOOT
920721078
€ 7.00
92072A
920721205
ref: 92072A
BAND,CABLE
€ 12.50
92072B
920721283
ref: 92072B
BAND
920721283
€ 18.50
92093
920931086
ref: 92093
SEAL,FORK DUST
920931086
€ 12.50
92143
921431645
ref: 92143
COLLAR,FORK,L=90
€ 16.00
