CYLINDER HEAD COVER

KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

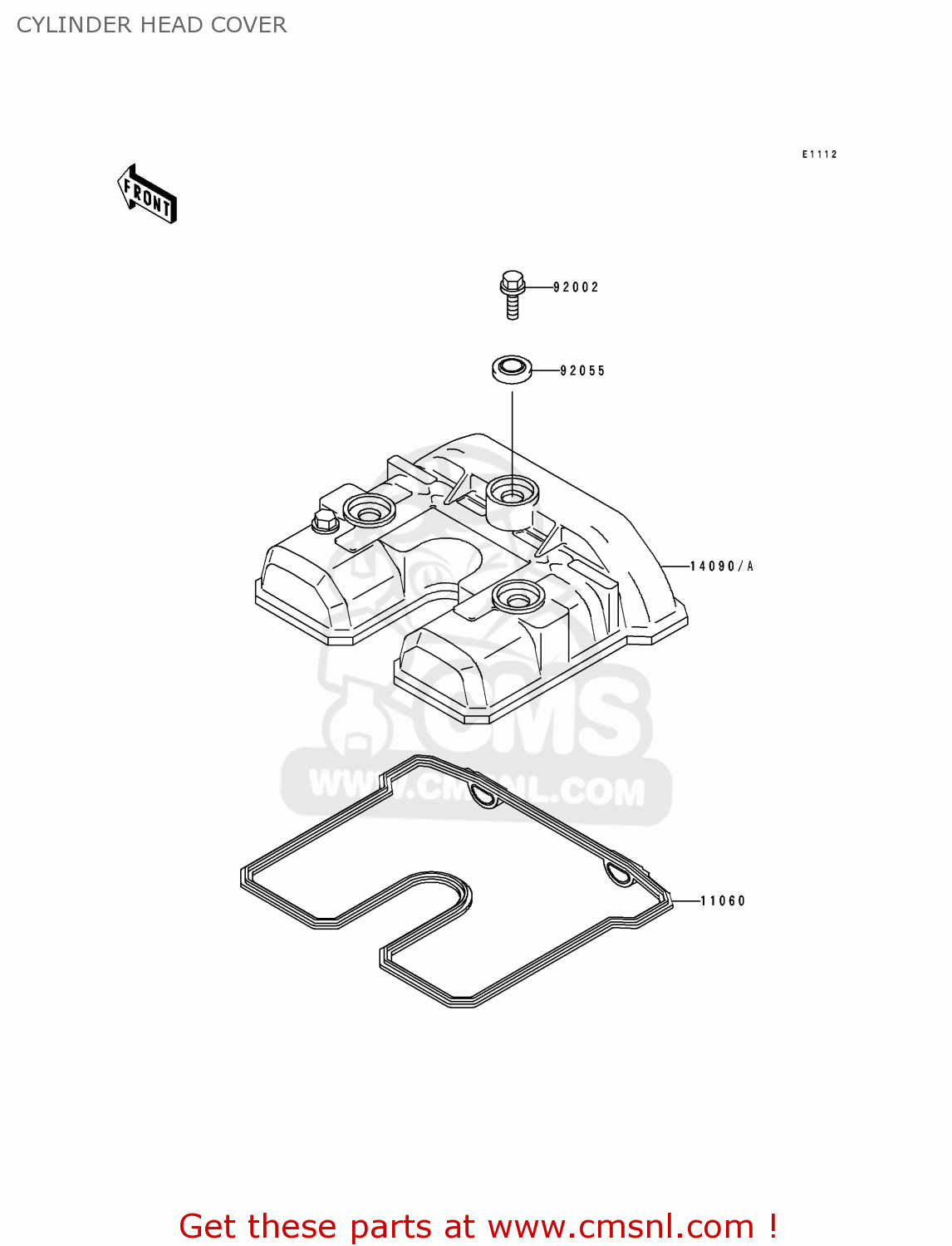

Cylinder head cover diagram KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

CYLINDER HEAD COVER KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

CYLINDER HEAD COVER KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

prices are in EUR

ref

part #

description

quantity

11060

110601318
ref: 11060

GASKET,HEAD COVER (NAS)

€ 39.00

14090

140901275
ref: 14090

COVER,HEAD

€ 225.00

92002

920021327
ref: 92002

BOLT,L=20.5

€ 6.00

92055

920551352
ref: 92055

RING-O,HEAD COVER BOL

€ 7.00
