GENERATOR

KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

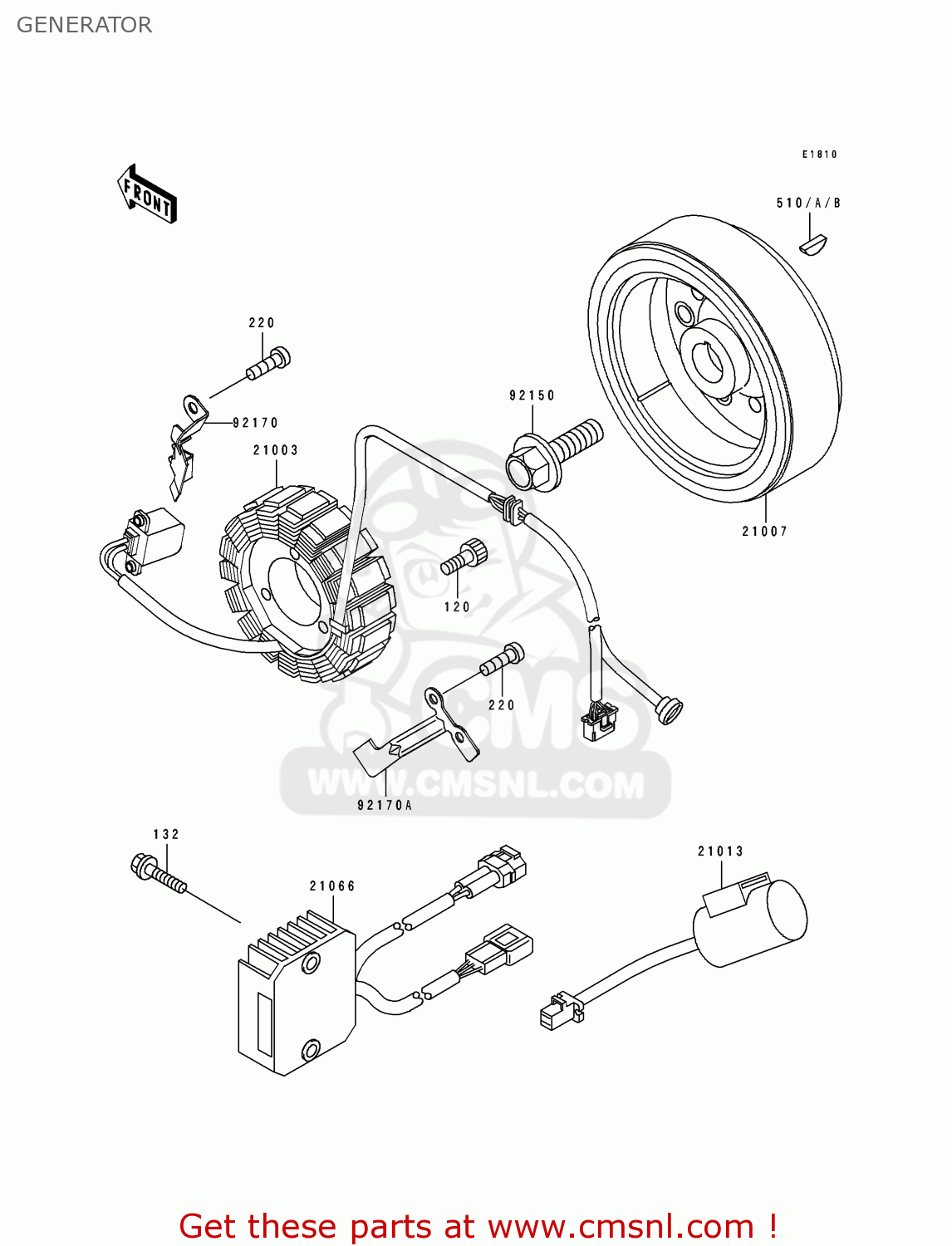

Generator diagram KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

prices are in EUR

ref

part #

description

quantity

120

120P0530
ref: 120

BOLT-SOCKET,5X30

€ 2.50

132

132J0625
ref: 132

BOLT-FLANGED-SMALL

€ 2.50

220

220B0512
ref: 220

SCREW-PAN-CROS

€ 0.50

510A

510A3100
ref: 510A

KEY-WOODRUFF

€ 1.50

510B

510A3200
ref: 510B

KEY-WOODRUFF

€ 1.50

21003

210031254
ref: 21003

STATOR

€ 390.00

21007

210071254
ref: 21007

ROTOR,MAGNETO

€ 537.00

21013

210132064
ref: 21013

CONDENSER

€ 88.00

21066

210661093
ref: 21066

REGULATOR-VOLTAGE

€ 176.00

92150

921501717
ref: 92150

BOLT,12X40

€ 7.50

92170

921701346
ref: 92170

CLAMP

€ 3.00

92170A

921701347
ref: 92170A

CLAMP

€ 3.00
