CRANKSHAFT

KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

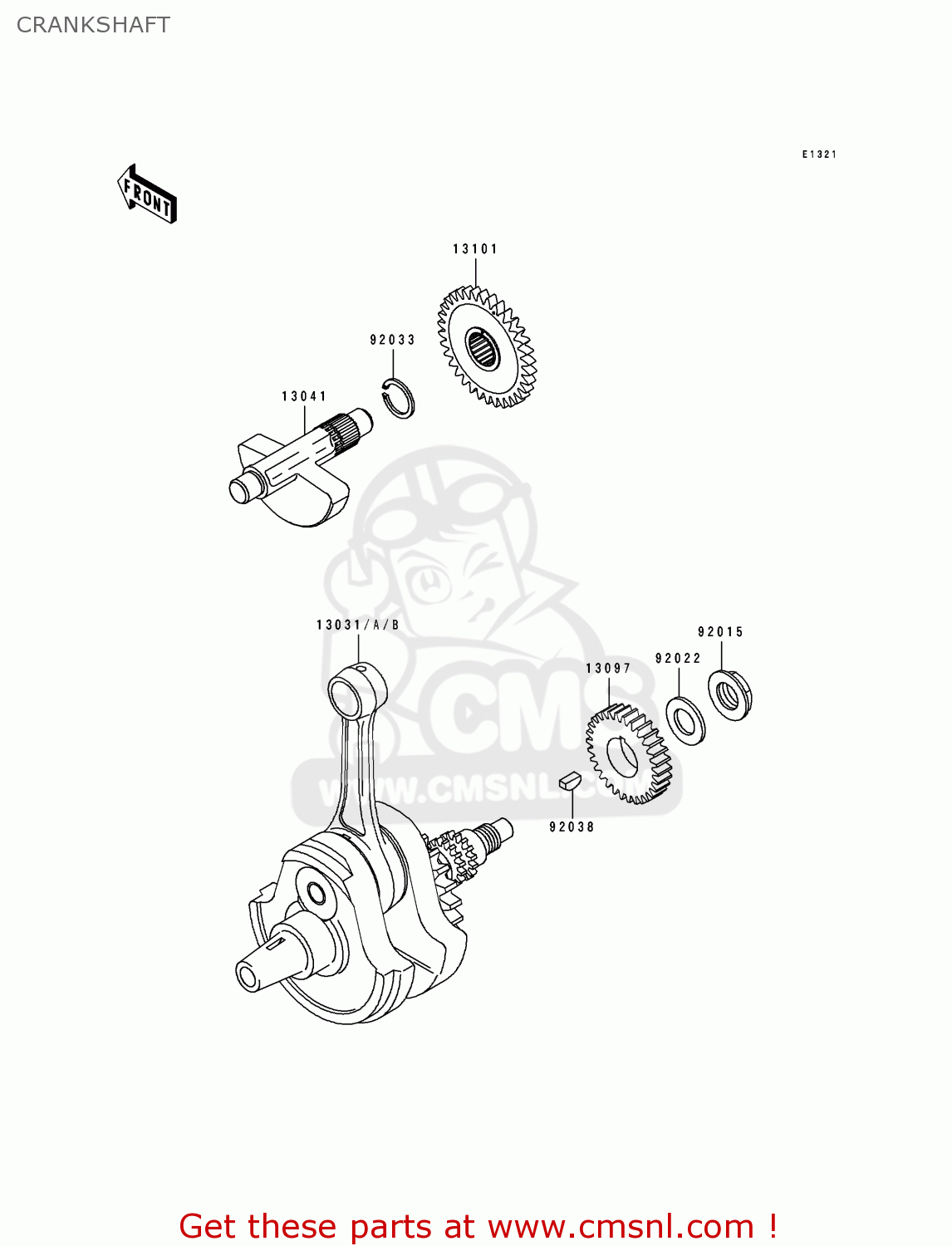

Crankshaft diagram KLX250E1 1993 NETHERLANDS AR FG GR IT NR ST

prices are in EUR

ref

part #

description

quantity

13031

130311372
ref: 13031

CRANKSHAFT-COMP

€ 579.50

13031B

130311391
ref: 13031B

CRANKSHAFT-COMP

€ 531.50

13041

130411107
ref: 13041

BALANCER

€ 72.50

13097

130971296
ref: 13097

GEAR-PRIMARY SPUR,22T

€ 59.00

13101

131011197
ref: 13101

GEAR-ASSY,BALANCER

€ 111.50

92015

920151581
ref: 92015

NUT,16MM

€ 13.50

92022

920221356
ref: 92022

WASHER,16.3X29X1.75

€ 4.50

92033

92033029
ref: 92033

CIRCLIP,18MM

€ 6.50

92038

920381057
ref: 92038

KEY

€ 3.50
