GEAR CHANGE DRUM & FORKS
KLX250A2 KLX250 1980

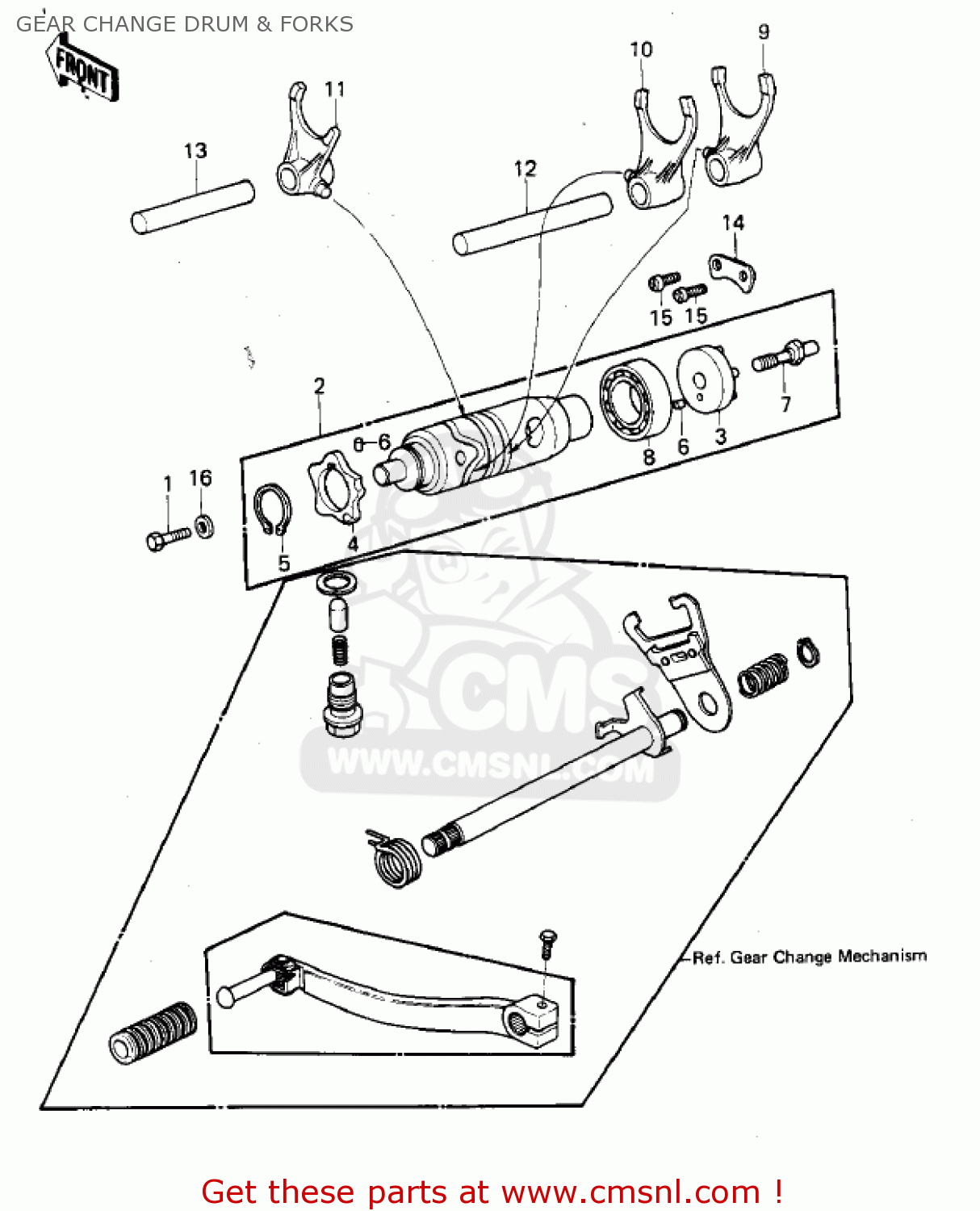

Gear change drum & forks diagram KLX250A2 KLX250 1980
GEAR CHANGE DRUM & FORKS KLX250A2 KLX250 1980
×
prices are in EUR
ref
part #
description
quantity
1
113G1014
ref: 1
BOLT,HEX HEAD,10X14
€ 2.50
2
132391036
ref: 2
DRUM ASSY,GEAR SHIFT
€ 153.00
3
13142019
ref: 3
PLATE, GEAR CHANGE
€ 13.50
4
13145007
ref: 4
DISC, CHANGE DRUM
€ 7.50
5
480J2400
ref: 5
CIRCLIP-TYPE-C,24MM
€ 3.50
6
610A0406
ref: 6
ROLLER,4X6
€ 2.50
7
92001166
ref: 7
BOLT
€ 2.00
8
92045036
ref: 8
BEARING-BALL,#6905
€ 29.00
9
13140073
ref: 9
SHIFT FORK, LOW
€ 65.00
10
13140074
ref: 10
SHIFT FORK 2ND & 3RD
€ 49.50
11
13140075
ref: 11
SHIFT FORK, 4TH & TOP
€ 41.50
12
490471003
ref: 12
ROD,SHIFT 93.7MM
€ 18.00
13
490471002
ref: 13
ROD,SHIFT 71.7MM
€ 32.00
14
13169014
ref: 14
PLATE,GEAR CHANGE DRU
€ 3.00
15
220B0614
ref: 15
SCREW-PAN HEAD,6X14
€ 2.00
16
110091105
ref: 16
GASKET,10X14.5X1.5 (NAS)
€ 4.00
