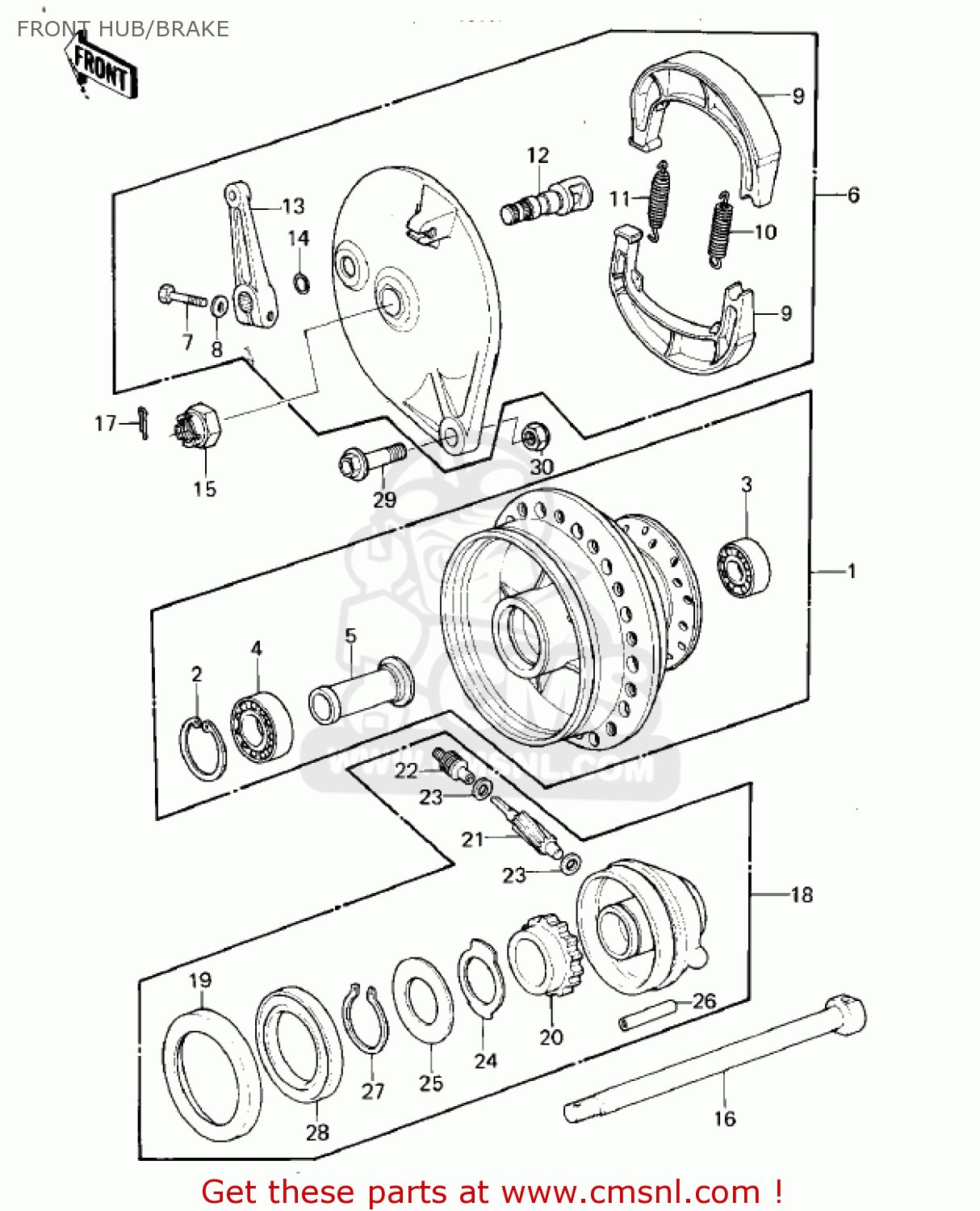

FRONT HUB/BRAKE

ref

part #

description

quantity

1

410341016
ref: 1

DRUM ASSY,FRONT

€ 304.50

2

481J3700
ref: 2

CIRCLIP-TYPE-C,37MM

€ 1.50

3

601B6201U
ref: 3

BEARING-BALL,#6201LUC

€ 18.50

4

601B6301U
ref: 4

BEARING-BALL,#6301UC3

€ 27.00

5

920271073
ref: 5

COLLAR,FRONT BEARING

€ 30.50

6

410351024
ref: 6

PANEL ASSY,FRONT

€ 239.00

7

112G0622
ref: 7

BOLT-UPSET

€ 2.50

8

410B0600
ref: 8

WASHER-PLAIN-SMALL,6M

€ 0.50

9

41048015
ref: 9

SHOE,BRAKE (MCA)

€ 14.50

10

920811766
ref: 10

SPRING,BRAKE SHOE

€ 5.50

11

920811550
ref: 11

SPRING,BRAKE SHOE

€ 6.00

12

410501006
ref: 12

CAM SHAFT,FRONT BRAKE

€ 19.50

13

410531007
ref: 13

LEVER,BRAKE CAM,FRONT

€ 40.50

14

670B2012
ref: 14

O RING,12MM

€ 1.00

15

320G1200
ref: 15

NUT-CASTLE

€ 2.50

16

410681025
ref: 16

AXLE,FRONT

€ 38.50

17

550D3228
ref: 17

PIN-COTTER,3.2X28

€ 1.50

18

41078009
ref: 18

GEAR BOX ASSY

€ 106.00

19

41042013
ref: 19

DUST COVER

€ 12.00

20

41059024
ref: 20

GEAR,SPEEDOMETER,24T

€ 22.50

21

41060015
ref: 21

PINION,SPEEDOMETER

€ 17.00

22

41062005
ref: 22

BUSHING,SPEEDOMETER C

€ 12.00

23

41063001
ref: 23

WASHER-THRST SPD PINI

€ 3.00

24

41064011
ref: 24

RECEIVER,SPEED GEAR

€ 4.00

25

41065004
ref: 25

WASHER,19.5X26X0.8

€ 2.00

26

41082001
ref: 26

PIN-SPRING

€ 2.50

27

480J1900
ref: 27

CIRCLIP-TYPE-C,19MM

€ 1.00

28

654A405208
ref: 28

OIL SEAL

€ 9.00

29

920011182
ref: 29

BOLT,10X45

€ 6.00

30

92019021
ref: 30

NUT,LOCK,10M/M

€ 2.00
