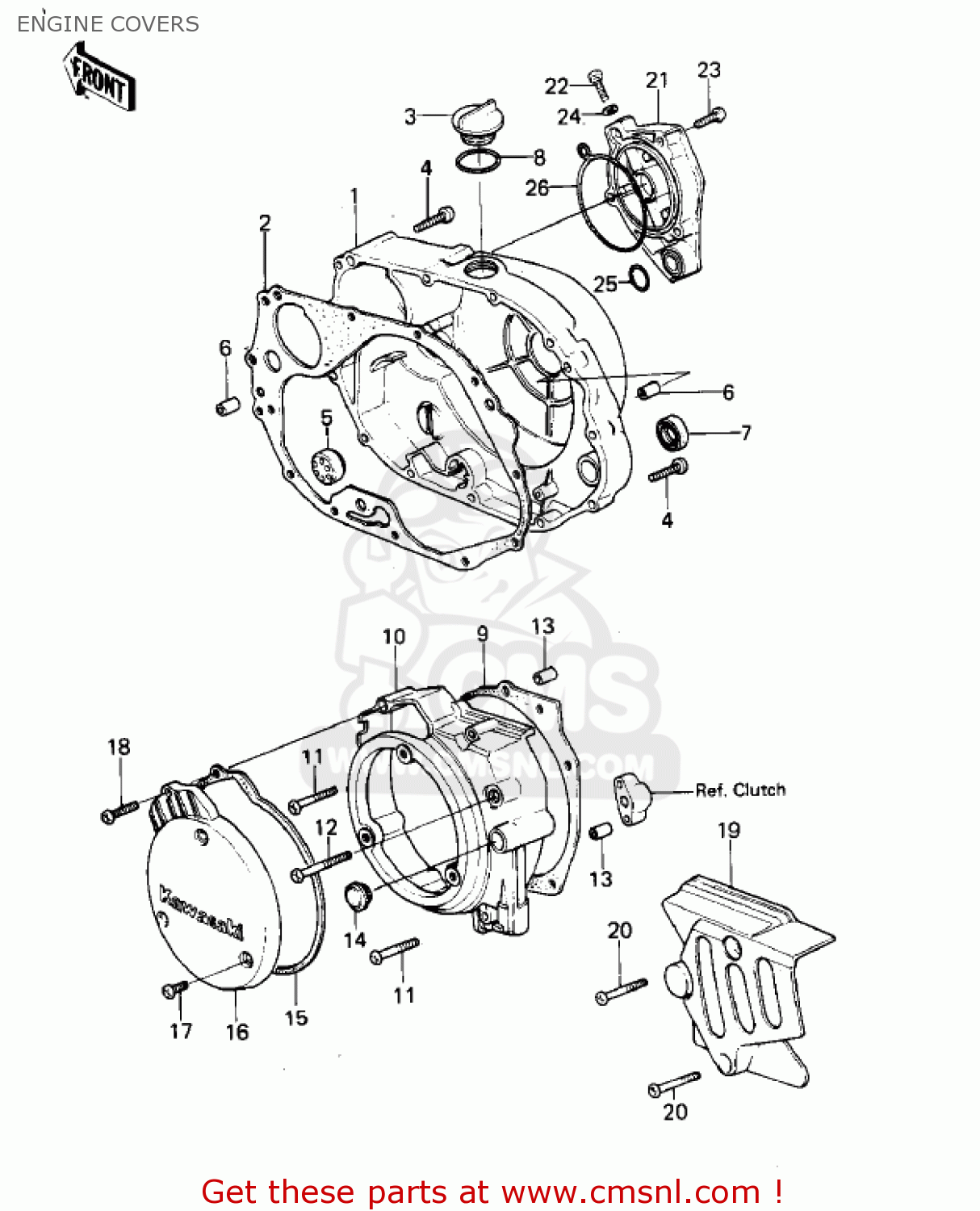

ENGINE COVERS

ref

part #

description

quantity

1

140321036
ref: 1

COVER,R.H.ENG,F.BLACK

€ 135.00

2

110091235
ref: 2

GASKET,ENGINE COV,RH (MCA)

€ 20.50

3

16115013
ref: 3

PLUG-OIL FILLER

€ 13.50

4

220B0630
ref: 4

SCREW-PAN HEAD,6X30

€ 2.50

5

52015004
ref: 5

GAUGE,OIL LEVEL

€ 27.00

6

92042007
ref: 6

PIN-DOWEL

€ 4.00

7

92050078
ref: 7

OIL SEAL

€ 5.50

8

92055049
ref: 8

'0'RING,31MM

€ 2.50

9

110091009
ref: 9

GASKET,L.H,ENGINE COV (MCA)

€ 16.00

10

140311033
ref: 10

COVER,L.H,F.BLACK

€ 144.50

11

220B0640
ref: 11

SCREW-PAN HEAD,6X40

€ 2.00

12

220B0650
ref: 12

SCREW-PAN HEAD,6X50

€ 2.00

13

92042007
ref: 13

PIN-DOWEL

€ 4.00

14

92066065
ref: 14

PLUG,CLUTCH PUSH ROD,

€ 2.50

15

110091121
ref: 15

GASKET,GENARATOR COVE (MCA)

€ 12.00

16

140251104
ref: 16

COVER,DYNAMO,F.BLACK

€ 55.50

17

220B0614
ref: 17

SCREW-PAN HEAD,6X14

€ 2.00

18

220B0625
ref: 18

SCREW-PAN HEAD,6X25

€ 1.50

19

140261022
ref: 19

COVER-CHAIN,BLACK

€ 12.50

20

220B0650
ref: 20

SCREW-PAN HEAD,6X50

€ 2.00

21

140251102
ref: 21

COVER,FILTER,F.BLACK

€ 23.00

22

110B0608
ref: 22

BOLT-HEX HEAD,6X8

€ 0.50

23

220B0625
ref: 23

SCREW-PAN HEAD,6X25

€ 1.50

24

92022304
ref: 24

WASHER,PLAIN

€ 2.50

25

92055098
ref: 25

RING-O

€ 5.50

26

920551048
ref: 26

RING-O,FILTER COVER

€ 9.50
