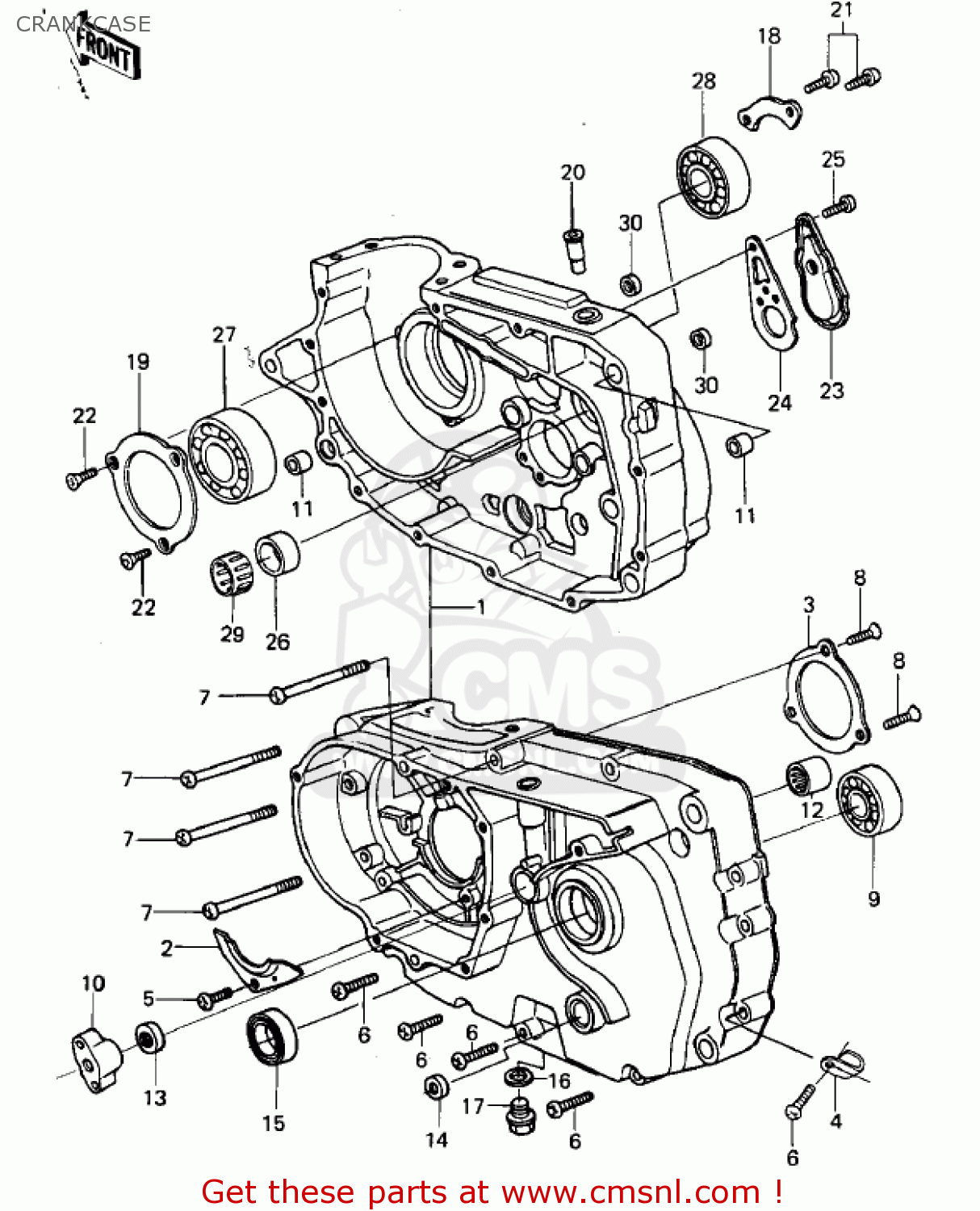

CRANKCASE

ref

part #

description

quantity

1

140015034
ref: 1

CRANKCASE SET,F.BLACK

€ 580.00

2

14014035
ref: 2

PLATE-POSITION,CAM CH

€ 3.00

3

140141004
ref: 3

PLATE,POSITIONING

€ 8.00

4

21126008
ref: 4

CLAMP,WIRING HARNESS

€ 3.00

5

220B0614
ref: 5

SCREW-PAN HEAD,6X14

€ 2.00

6

220B0630
ref: 6

SCREW-PAN HEAD,6X30

€ 2.50

7

220B0675
ref: 7

SCREW,PAN HEAD,6X75

€ 3.00

8

221B0616
ref: 8

SCREW-CNTSNK HD,6X16

€ 0.50

9

601B6205
ref: 9

BEARING-BALL,#6205C3

€ 14.00

10

920271467
ref: 10

COLLAR,PUSH ROD

€ 2.50

11

92042032
ref: 11

PIN,DOWEL,14MM

€ 3.00

12

92046060
ref: 12

BEARING-NEEDLE,HMK151

€ 17.50

13

92050077
ref: 13

OIL SEAL, PUSH ROD

€ 7.50

14

92050082
ref: 14

OIL SEAL,CHANGE SHAFT

€ 5.50

15

920491159
ref: 15

SEAL-OIL,TC32457

€ 8.00

16

92065097
ref: 16

GASKET,DRAIN PLUG BOL (NAS)

€ 1.00

17

920661174
ref: 17

PLUG,OIL DRAIN,12X15

€ 4.00

18

14014037
ref: 18

PLATE-POSITION

€ 2.50

19

140141004
ref: 19

PLATE,POSITIONING

€ 8.00

20

14067006
ref: 20

BREATHER JOINT

€ 14.00

21

220B0614
ref: 21

SCREW-PAN HEAD,6X14

€ 2.00

22

221B0616
ref: 22

SCREW-CNTSNK HD,6X16

€ 0.50

23

16078002
ref: 23

CAP

€ 6.00

24

16079002
ref: 24

GASKET (MCA)

€ 2.50

25

220B0614
ref: 25

SCREW-PAN HEAD,6X14

€ 2.00

26

92028132
ref: 26

BUSHING

€ 28.00

27

92045037
ref: 27

BEARING-BALL,#6306

€ 40.00

28

92045038
ref: 28

BEARING-BALL,#6006

€ 23.50

29

920461184
ref: 29

BEARING-NEEDLE

€ 20.00

30

920661282
ref: 30

PLUG

€ 4.00
