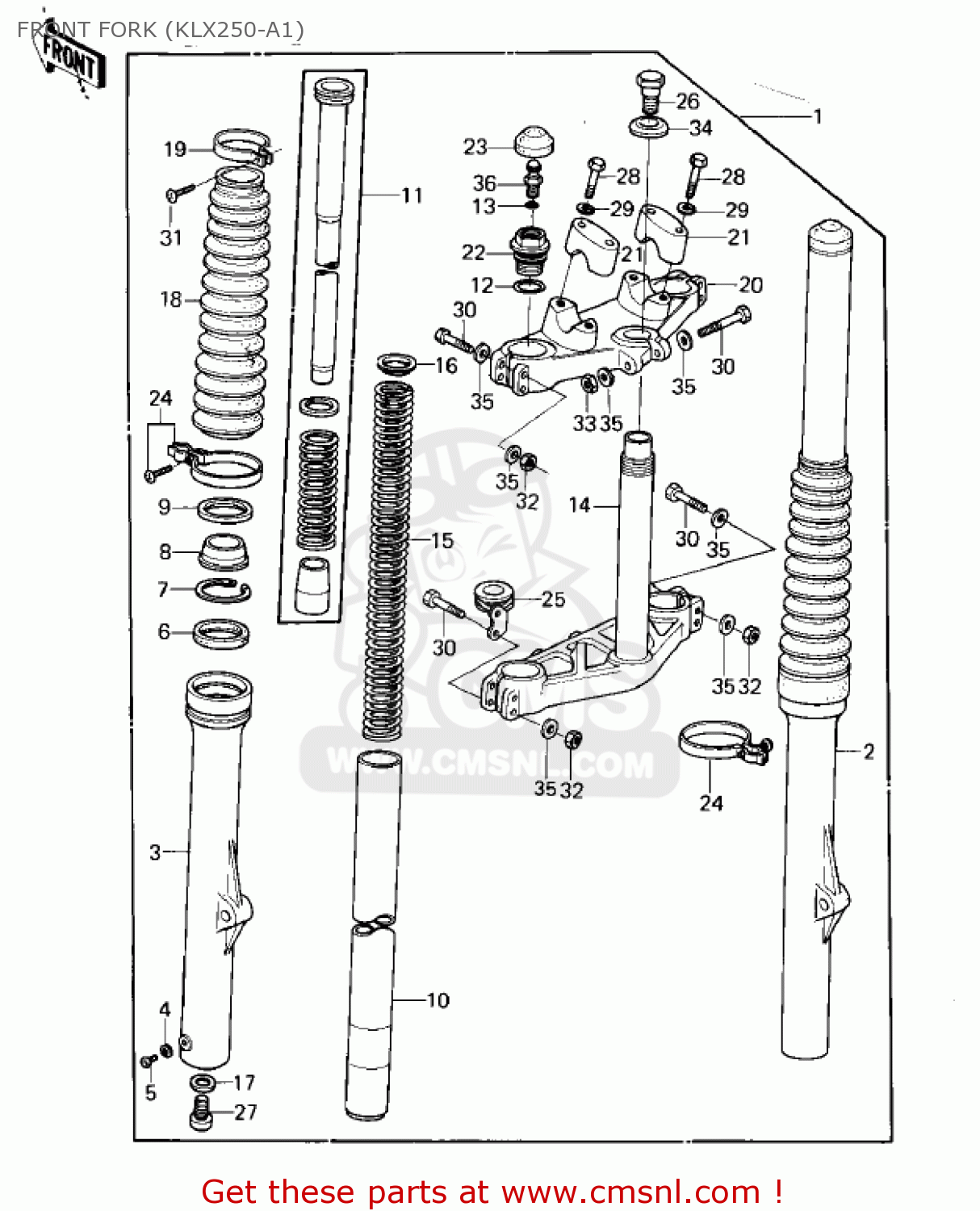

FRONT FORK (KLX250-A1)

ref

part #

description

quantity

1

440011088
ref: 1

FRONT FORK

€ 869.50

2

440061030
ref: 2

TUBE,R.H,FORK OUTER

€ 260.50

3

440051030
ref: 3

TUBE,L.H,FORK OUTER

€ 260.50

4

44045002
ref: 4

GASKET,FORK DRAIN PLU (NAS)

€ 3.00

5

220B0408
ref: 5

SCREW-PAN-CROS

€ 0.50

6

920491009
ref: 6

OIL SEAL,FORK OUTER

€ 16.00

7

920331005
ref: 7

RING-SNAP

€ 8.50

8

920931007
ref: 8

DUST SHIELD,FORK

€ 8.50

9

320991002
ref: 9

CASE,DUST SHIELD

€ 16.00

10

440131026
ref: 10

TUBE,FORK INNER

€ 159.00

11

440221030
ref: 11

CYLINDER ASSY,FORK

€ 81.00

12

920551051
ref: 12

ORING,FORK TOP CAP

€ 3.50

13

920551018
ref: 13

RING-O,AIR VALVE

€ 2.50

14

440371021
ref: 14

STEM,STEERING

€ 146.00

15

440261038
ref: 15

SPRING,FORK INNER

€ 27.50

16

440281004
ref: 16

GUIDE-FORK SPRING

€ 7.50

17

44045057
ref: 17

GASKET (NAS)

€ 3.00

18

490061009
ref: 18

BOOTS,FORK

€ 49.00

19

920721008
ref: 19

BAND,BOOTS

€ 7.50

20

440391018
ref: 20

HEAD,STEERING STEM

€ 169.00

21

460121003
ref: 21

HOLDER,HANDLEBAR

€ 8.50

22

440291011
ref: 22

SEAT-FORK SPRING

€ 46.00

23

440291009
ref: 23

SEAT-FORK SPRING

€ 4.00

24

920721011
ref: 24

BAND,BOOTS,L.H

€ 8.50

25

920721027
ref: 25

BAND,CABLE

€ 12.50

26

44041065
ref: 26

BOLT,FORK TOP

€ 18.50

27

44041040
ref: 27

BOLT-FORK CYLINDER

€ 4.50

28

920011578
ref: 28

BOLT,FLANGED,8X40

€ 4.00

29

461F0800
ref: 29

WASHER-SPRING,8MM

€ 0.50

30

920011398
ref: 30

BOLT,FLANGED 8X55

€ 2.50

31

220B0420
ref: 31

SCREW-PAN-CROS

€ 2.00

32

311G0800
ref: 32

NUT-HEX,8MM

€ 2.50

33

920151124
ref: 33

NUT,LOCK,8MM

€ 3.50

34

44043052
ref: 34

WASHER,PLAIN

€ 6.00

35

410B0800
ref: 35

WASHER-PLAIN-SMALL,8M

€ 0.50

36

161261003
ref: 36

VALVE,AIR

€ 22.50
