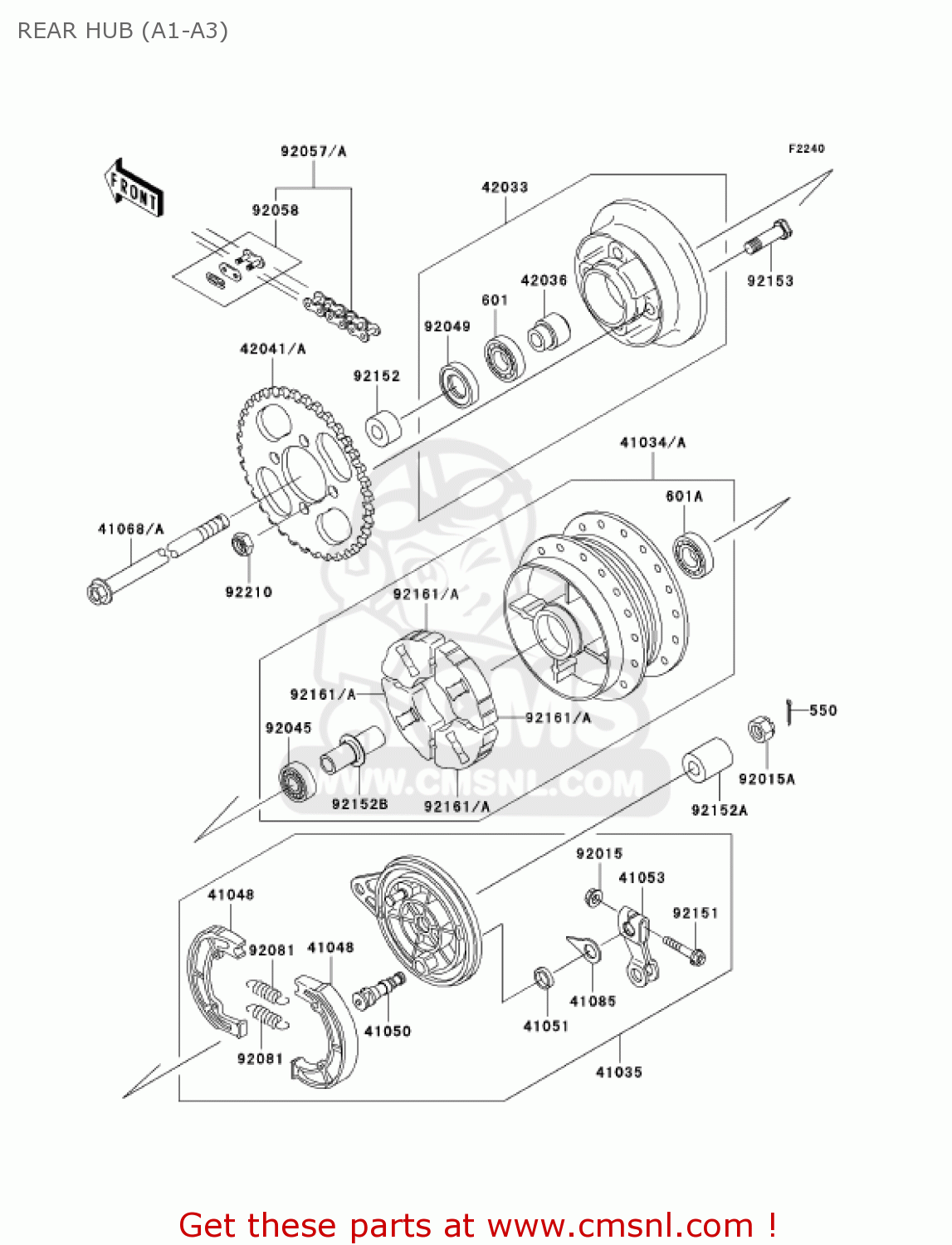

REAR HUB (A1-A3)

ref

part #

description

quantity

550

550S2520
ref: 550

PIN-COTTER,2.5X20

€ 1.50

601

601B6004UG
ref: 601

BEARING-BALL,#6004U

€ 27.50

601A

601B6301UG
ref: 601A

BEARING-BALL,#6301UG

€ 27.00

41034A

410341344
ref: 41034A

DRUM-ASSY,REAR BRAKE

€ 90.00

41035

410351542
ref: 41035

PANEL-ASSY-BRAKE,RR

€ 104.00

41048

410481141
ref: 41048

SHOE-BRAKE (NAS)

€ 17.00

41050

410501082
ref: 41050

CAM-BRAKE

€ 6.00

41051

41051001
ref: 41051

DUST SHIELD-BRAKE CAM

€ 2.50

41053

410531089
ref: 41053

LEVER-BRAKE-CAM

€ 5.00

41068A

410681306
ref: 41068A

AXLE,RR

€ 26.00

41085

410851079
ref: 41085

INDICATOR

€ 0.50

42033

420331223
ref: 42033

COUPLING-ASSY,RR HUB

€ 77.00

42036

420361292
ref: 42036

SLEEVE

€ 7.00

42041

420411548
ref: 42041

SPROCKET-HUB,37T

€ 69.00

92015

920151193
ref: 92015

NUT,FLANGED,6MM

€ 0.50

92015A

920151870
ref: 92015A

NUT,CASTLE,12MM

€ 4.50

92045

920451308
ref: 92045

BEARING-BALL,6201ZC3/

€ 15.50

92049

920491490
ref: 92049

SEAL-OIL

€ 2.00

92057

920571513
ref: 92057

CHAIN,DRIVE,DID420MBK

€ 30.00

92058

920581073
ref: 92058

JOINT-CHAIN,DRIVE

€ 6.50

92081

920811766
ref: 92081

SPRING,BRAKE SHOE

€ 5.50

92151

921511209
ref: 92151

BOLT

€ 2.50

92152

921521405
ref: 92152

COLLAR,RR AXLE,LH,L=1

€ 6.50

92152A

921521406
ref: 92152A

COLLAR,RR AXLE,RH,L=3

€ 8.50

92152B

921521409
ref: 92152B

COLLAR,REAR BRAKE DRU

€ 12.00

92153

921531120
ref: 92153

BOLT,10X36

€ 7.50

92161A

921611297
ref: 92161A

DAMPER,RR HUB SHOCK

€ 9.50

92210

922101351
ref: 92210

NUT,LOCK,10MM

€ 5.00
