CHASSIS ELECTRICAL EQUIPMENT

KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA

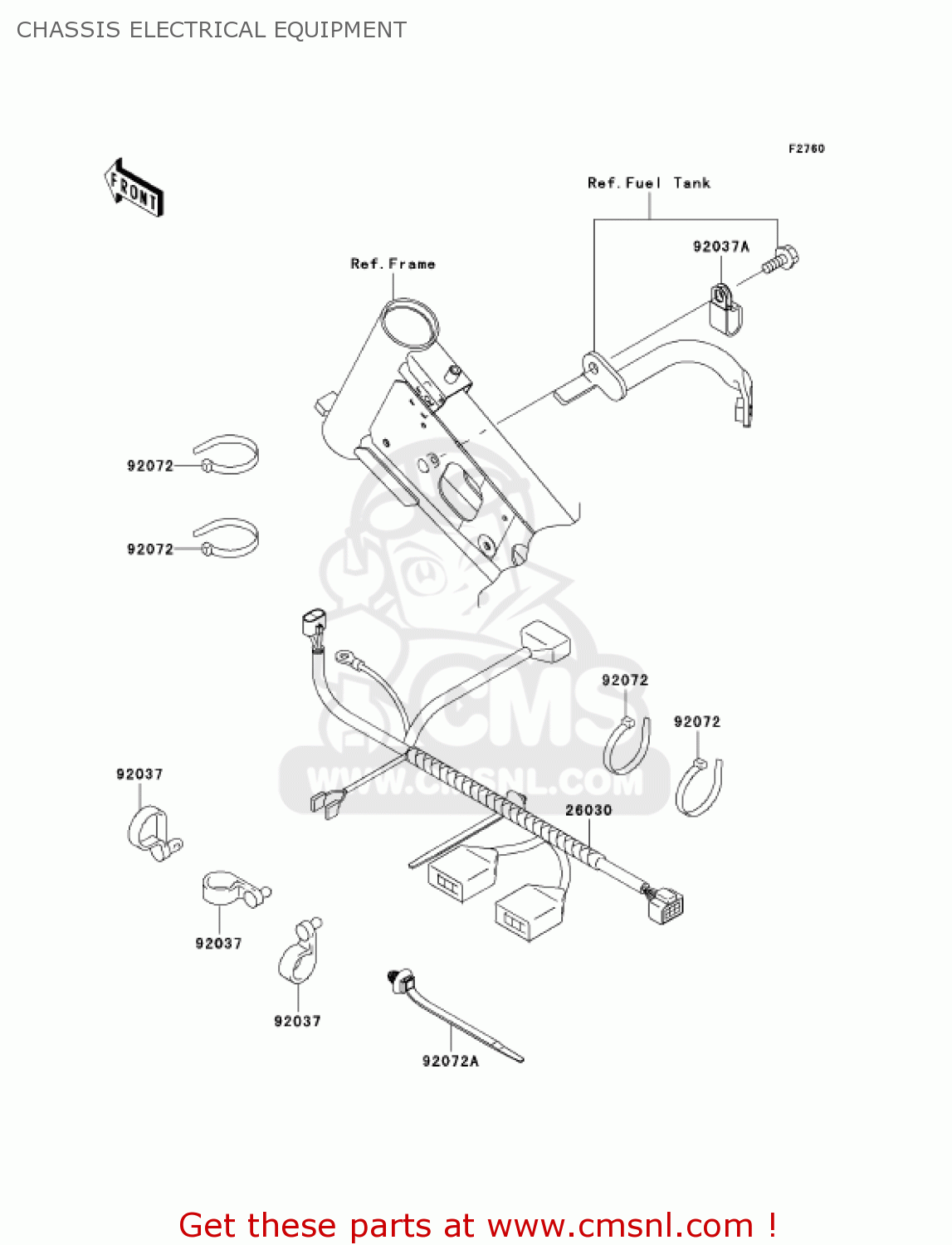

Chassis electrical equipment diagram KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA

CHASSIS ELECTRICAL EQUIPMENT KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA
CHASSIS ELECTRICAL EQUIPMENT KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
26030
260301931
ref: 26030
HARNESS,MAIN
€ 122.50
92037
920371163
ref: 92037
CLAMP,HARNESS,REAR
920371163
€ 4.50
92037A
920371608
ref: 92037A
CLAMP
920371608
€ 5.50
92072
920721293
ref: 92072
BAND
920721293
€ 6.50
92072A
920721414
ref: 92072A
BAND
920721414
€ 2.00
