KICKSTARTER MECHANISM (A1)

KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA

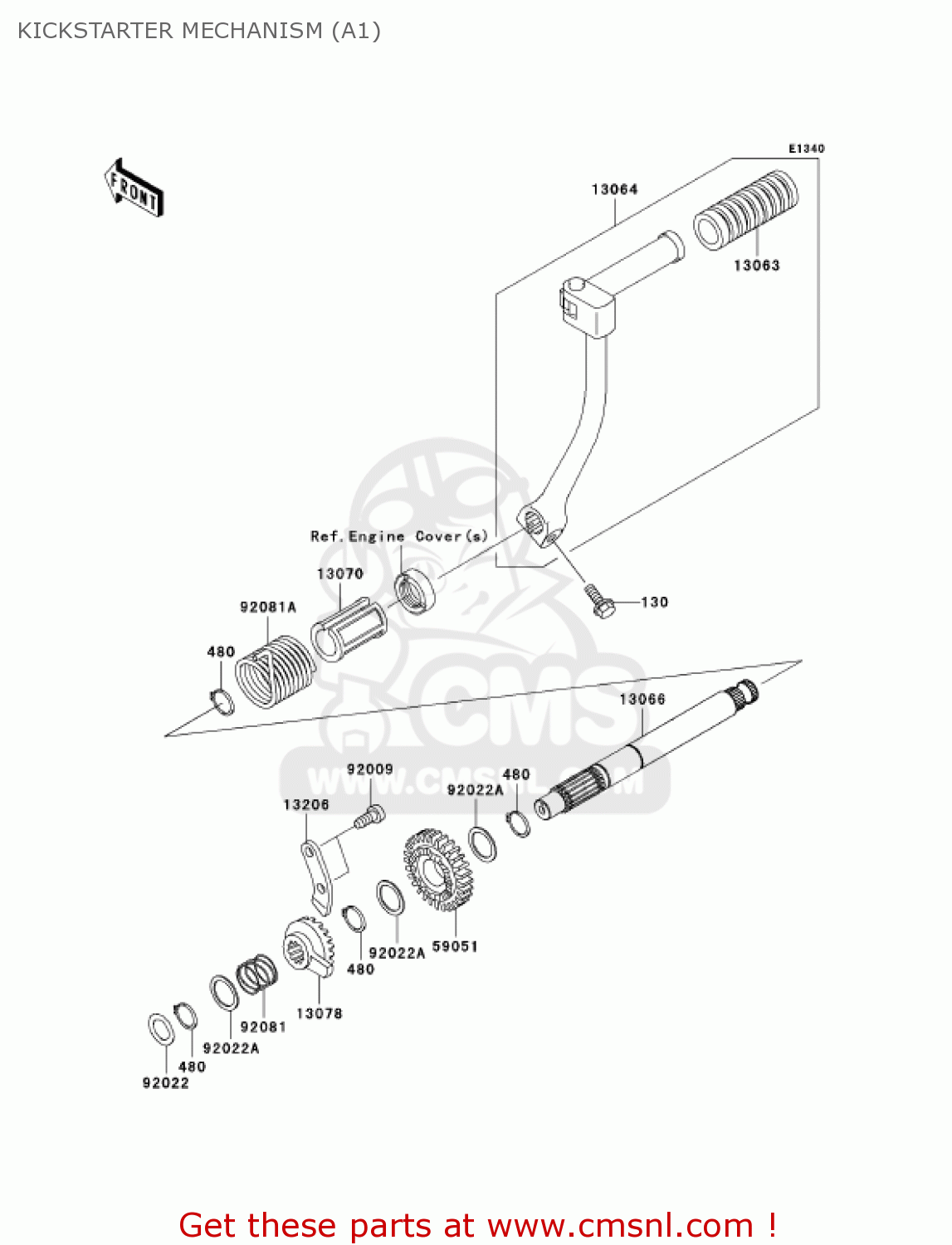

Kickstarter mechanism (a1) diagram KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

130

130P0622
ref: 130

BOLT-FLANGED

€ 1.50

480

480J1600
ref: 480

CIRCLIP-TYPE-C,16MM

€ 2.50

13063

13063002
ref: 13063

RUBBER-KICK PEDAL

€ 3.00

13064

130641211
ref: 13064

LEVER-ASSY-KICK

€ 120.00

13066

130661089
ref: 13066

SHAFT-KICK

€ 62.50

13070

130701035
ref: 13070

GUIDE,KICK SHAFT

€ 5.50

13078

130781052
ref: 13078

RATCHET,KL250-D2

€ 50.50

13206

132061006
ref: 13206

GUIDE-KICK

€ 5.50

59051

590511385
ref: 59051

GEAR-SPUR,KICKSTARTER

€ 34.00

92009

920091104
ref: 92009

SCREW,TAPPING

€ 2.50

92022

920221224
ref: 92022

WASHER,13.2X20X0.5

€ 2.50

92022A

92022315
ref: 92022A

WASHER, 16.8X22X0.5

€ 4.00

92081

92081122
ref: 92081

SPRING,RATCHET

€ 6.00

92081A

920811276
ref: 92081A

SPRING,KICK STARTER

€ 9.00
