CRANKSHAFT (A1)

KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA

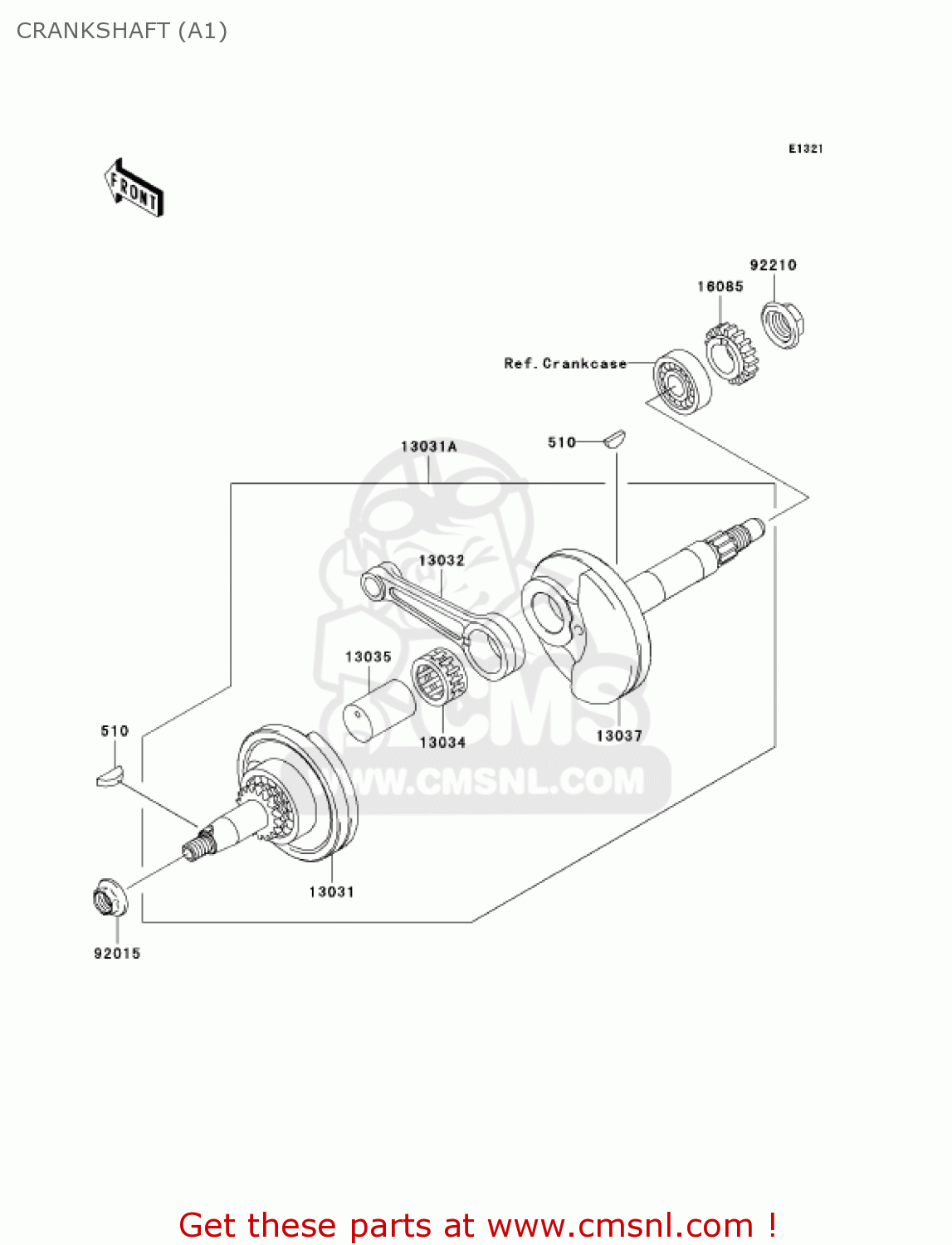

Crankshaft (a1) diagram KLX110-A1 KLX110 2002 USA CALIFORNIA CANADA

prices are in EUR

ref

part #

description

quantity

510

510A3200
ref: 510

KEY-WOODRUFF

€ 1.50

13031

130311462
ref: 13031

CRANKSHAFT-COMP,LH

€ 237.00

13031A

130311486
ref: 13031A

CRANKSHAFT-COMP

€ 485.00

13032

130321250
ref: 13032

ROD-CONNECTING

€ 55.50

13034

130341100
ref: 13034

BEARING-BIG END

€ 19.00

13035

130351083
ref: 13035

PIN-CRANK

€ 24.50

13037

130371481
ref: 13037

CRANKSHAFT,RH

€ 178.50

16085

160851267
ref: 16085

GEAR,OIL PUMP,28T

€ 16.00

92015

92015077
ref: 92015

NUT, 10MM

€ 3.00

92210

922101374
ref: 92210

NUT,14MM

€ 7.00
